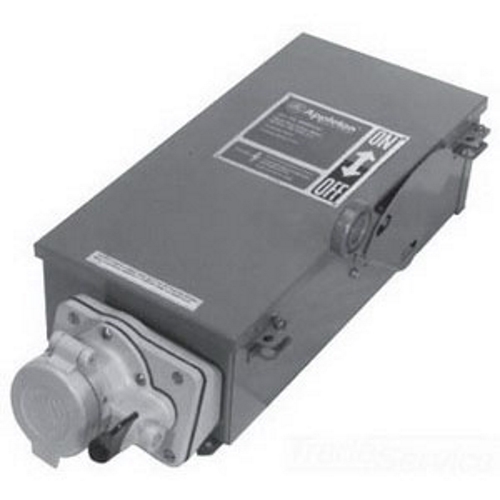

Powertite; Fused Interlocked Receptacle; 60 Amp, 600 Volt AC, 4-Pole, 3-Wire
- MFR:
- Appleton Electric
- MFR #:
- WSRD6352SQ
- UPC:
- 781381756860
- Item #:
- 199981
Powertite; Fused Interlocked Receptacle; 60 Amp, 600 Volt AC, 4-Pole, 3-Wire
- MFR #:
- WSRD6352SQ
- UPC:
- 781381756860
- Item #:
- 199981
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$4,413.30
each
Appleton Fused WSRD Series Interlocked Receptacle With Enclosure, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50/60 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Sheet Metal Enclosure, Nema Rating: NEMA 3R, 12, Mounting: Surface Mount, Motor Horsepower: 15 HP Standard/50 HP Maximum At 600 VAC, Finish: Epoxy Powder Coat Receptacle, Enamel Coated Enclosure, Dimensions: 10.81 IN Width X 23 IN Height X 10 IN Depth, Standard: UL 98, UL 50E, UL 1682, UL 1686, UL Listed: E145917, E160652, CSA Standard: C22.2 No.4, C22.2 No. 182.1, CSA Certified: 025875, For ACP6034BC Mating Plug
Manuals and Documentation
| Catalog Number | WSRD6352SQ |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 60 |
| Application | For ACP6034BC Mating Plug |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Sheet Metal Enclosure |
| Mounting | Surface |
| NEMA Rating | 3R, 12 |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Without viewing window; With enclosed disconnect switch; For use where an interlocked disconnect switch is desired to control a Powertite receptacle and insertion or removal of plug; For use where an interlocked disconnect switch is desired to control a Powertite receptacle and insertion or removal of plug; Utilizes style 2 (shell and extra pole) grounding and 3-wire, 4-pole receptacle wiring; Class R fusing standard on WSRD fusible units; Short circuit withstand rated to 200000 RMS symmetrical Amps; Unit is equipped with defeatable door interlock which allows emergency access when switch is energized; Cover can be padlocked closed; Dead front design: receptacle is not energized until plug is fully inserted and switch is engaged; For welders, generators, compressors, infrared ovens, batch feeders, conveyors, truck terminals, marine docks |
| Standard | UL 98, UL 50E, UL 1682, UL 1686; UL Listed: E145917, E160652; CSA Standard: C22.2 No.4, C22.2 No. 182.1; CSA Certified: 025875 |
| UPC | 781381756860 |
| GTIN | 00781381756860 |
| Item Type | Fused WSRD Series Interlocked Receptacle With Enclosure |
| Voltage Rating | 600 VAC At 50/60 HZ, 250 VDC |
| Wire Size | 6 - 2 AWG |
