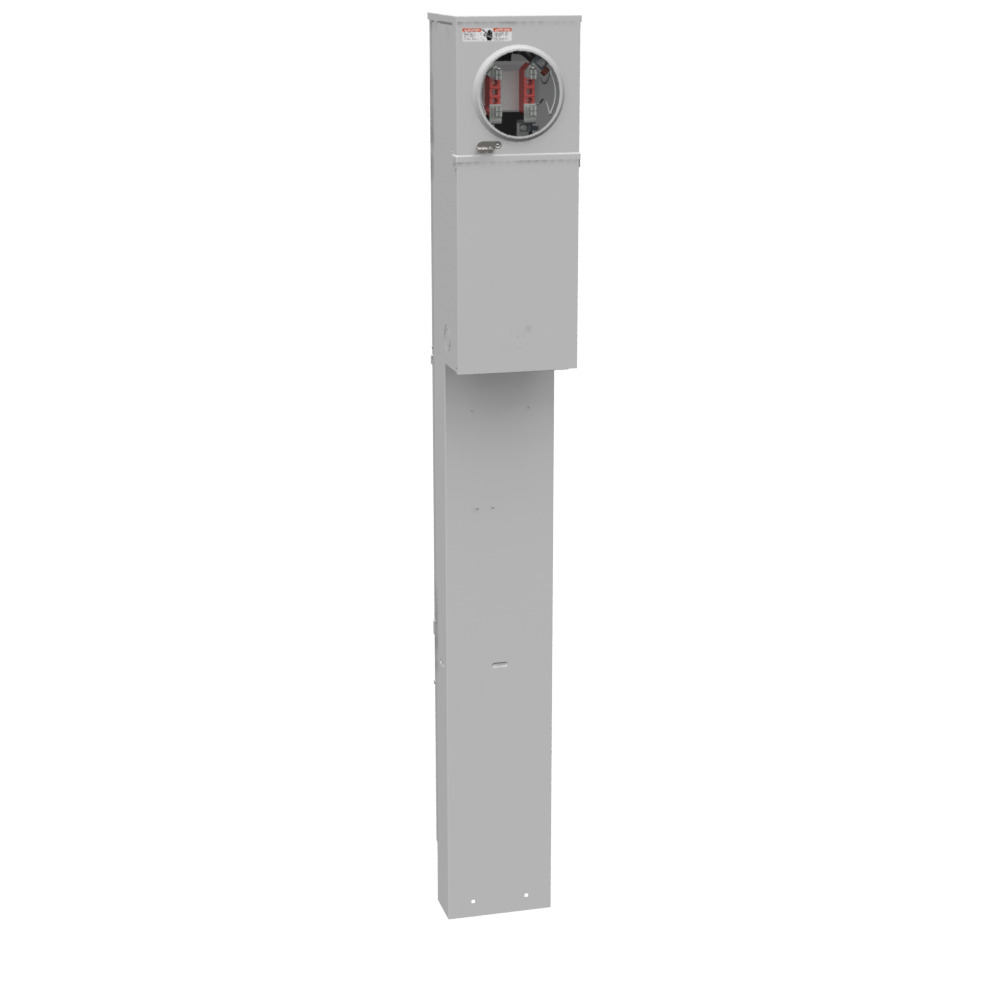

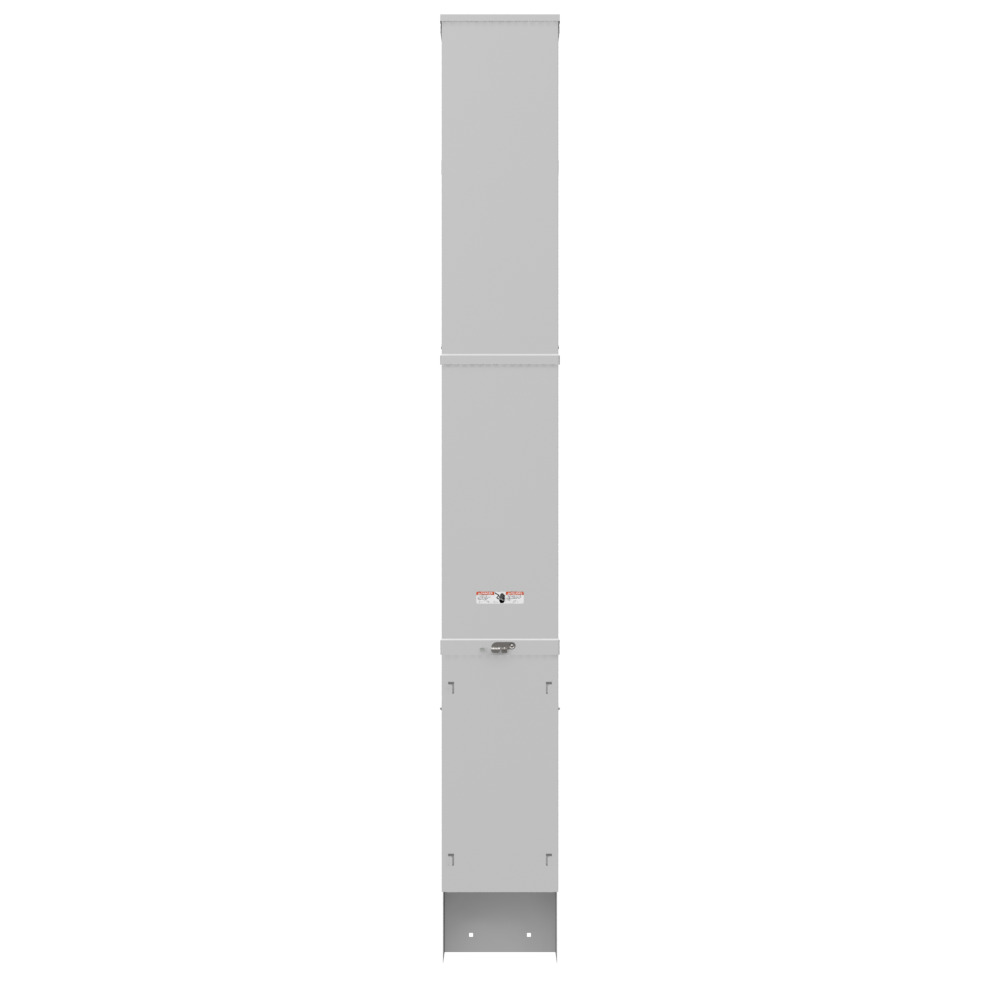

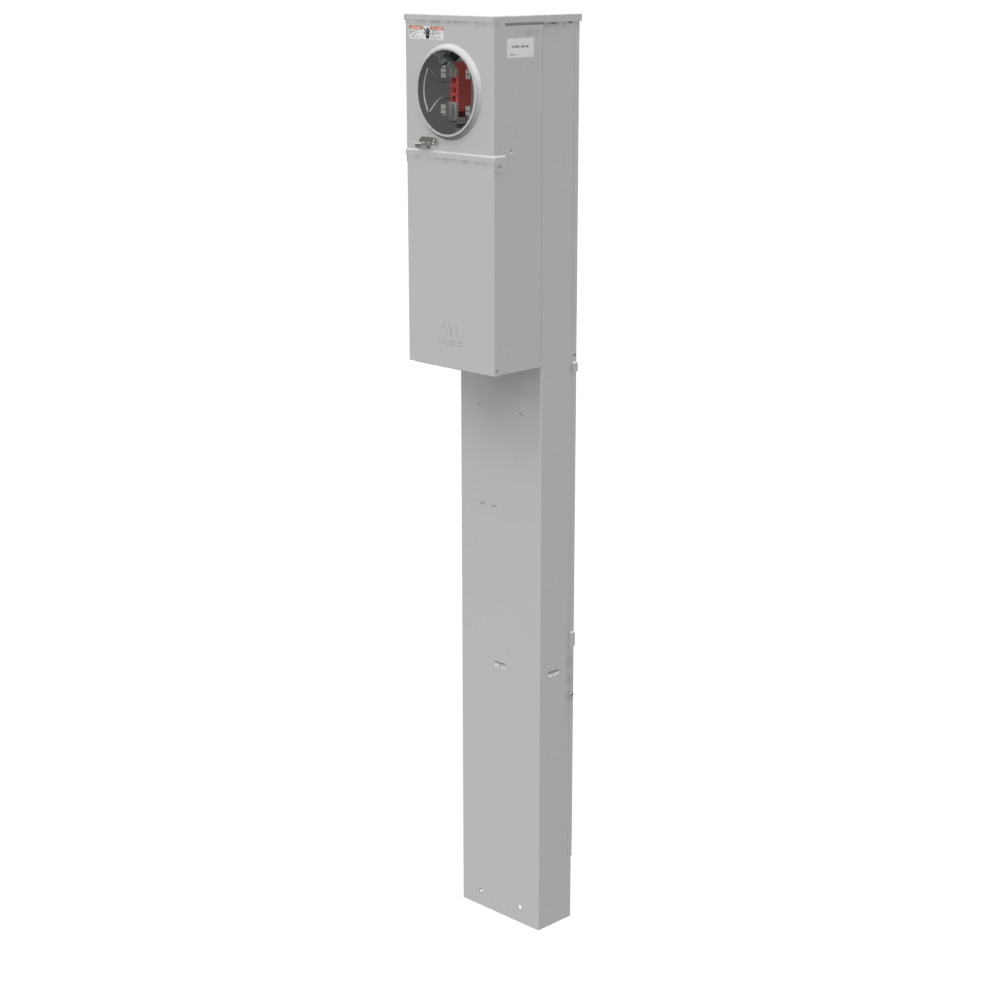

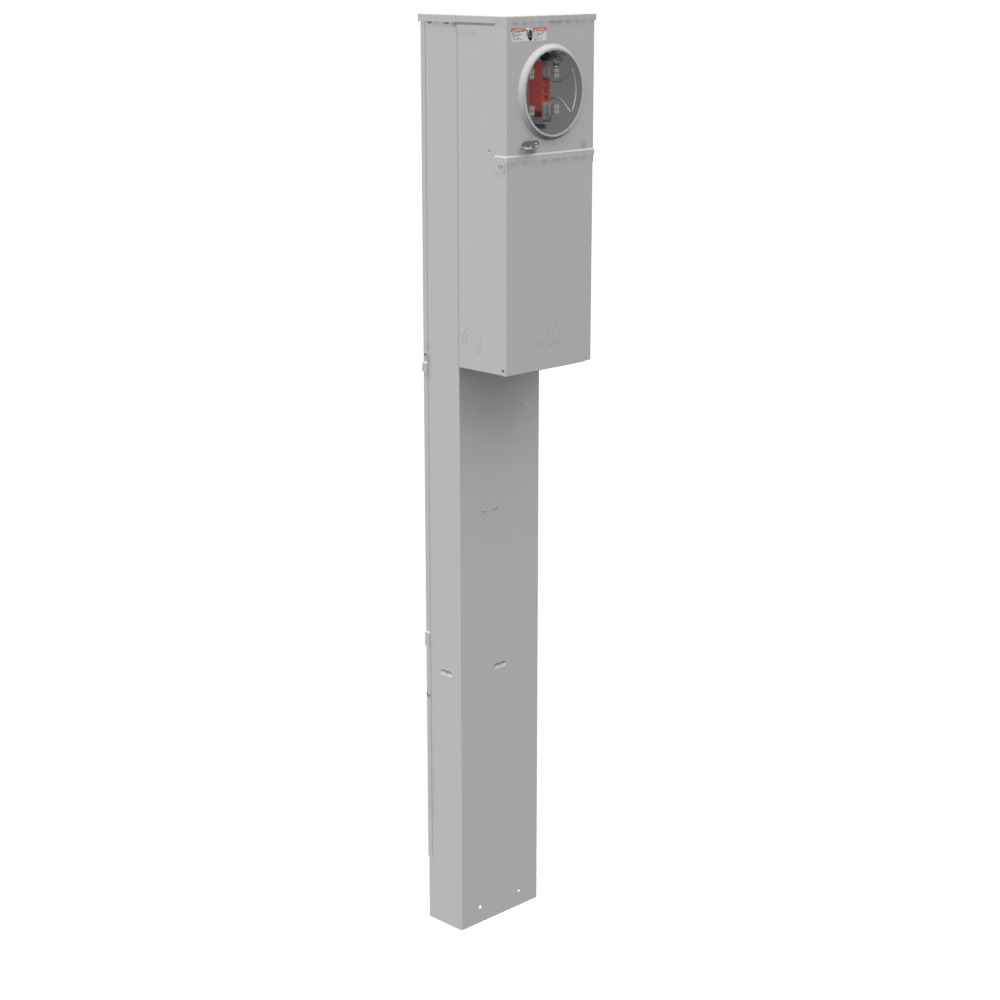

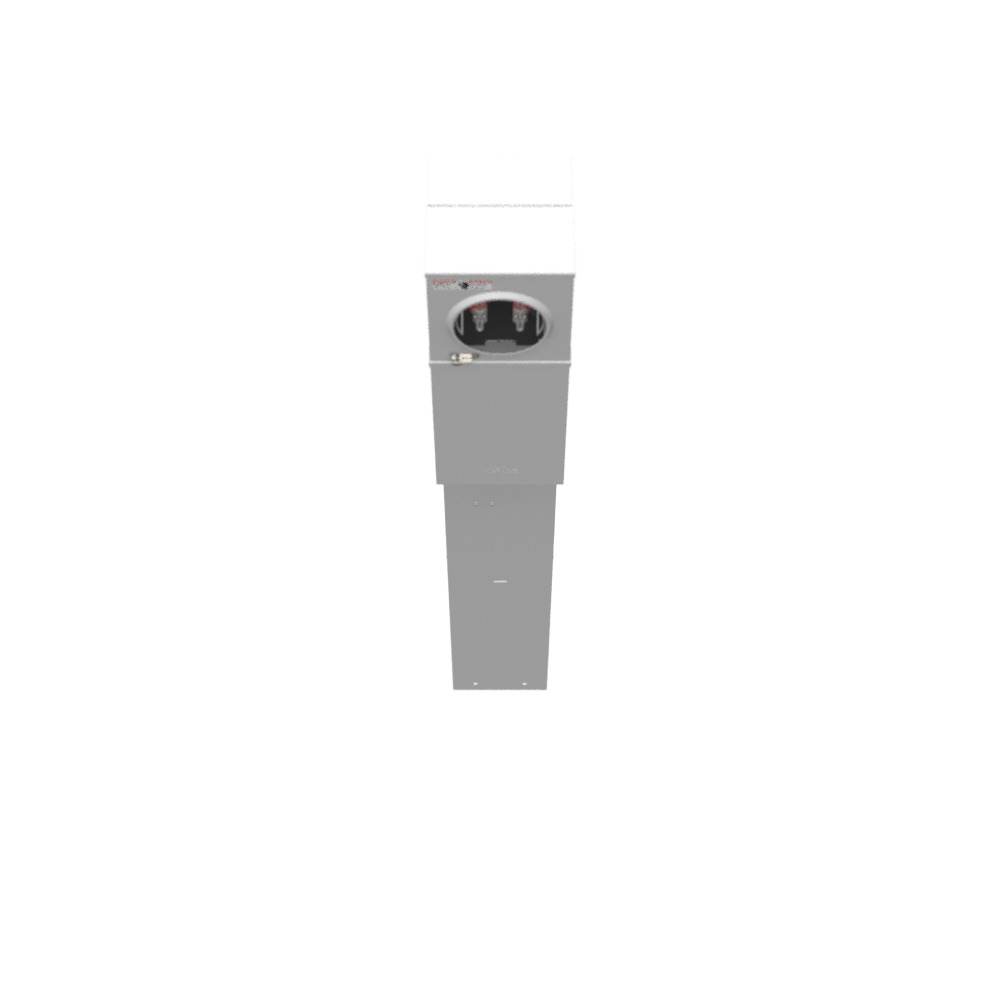

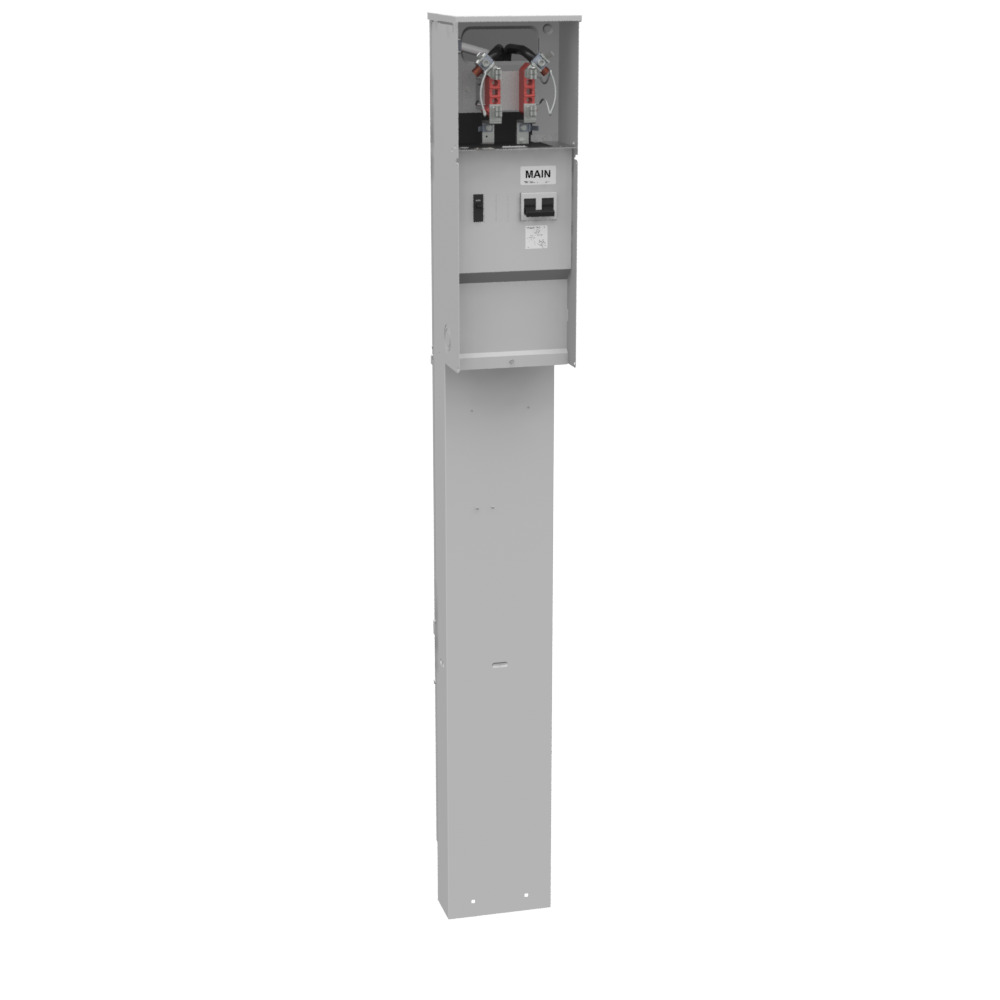

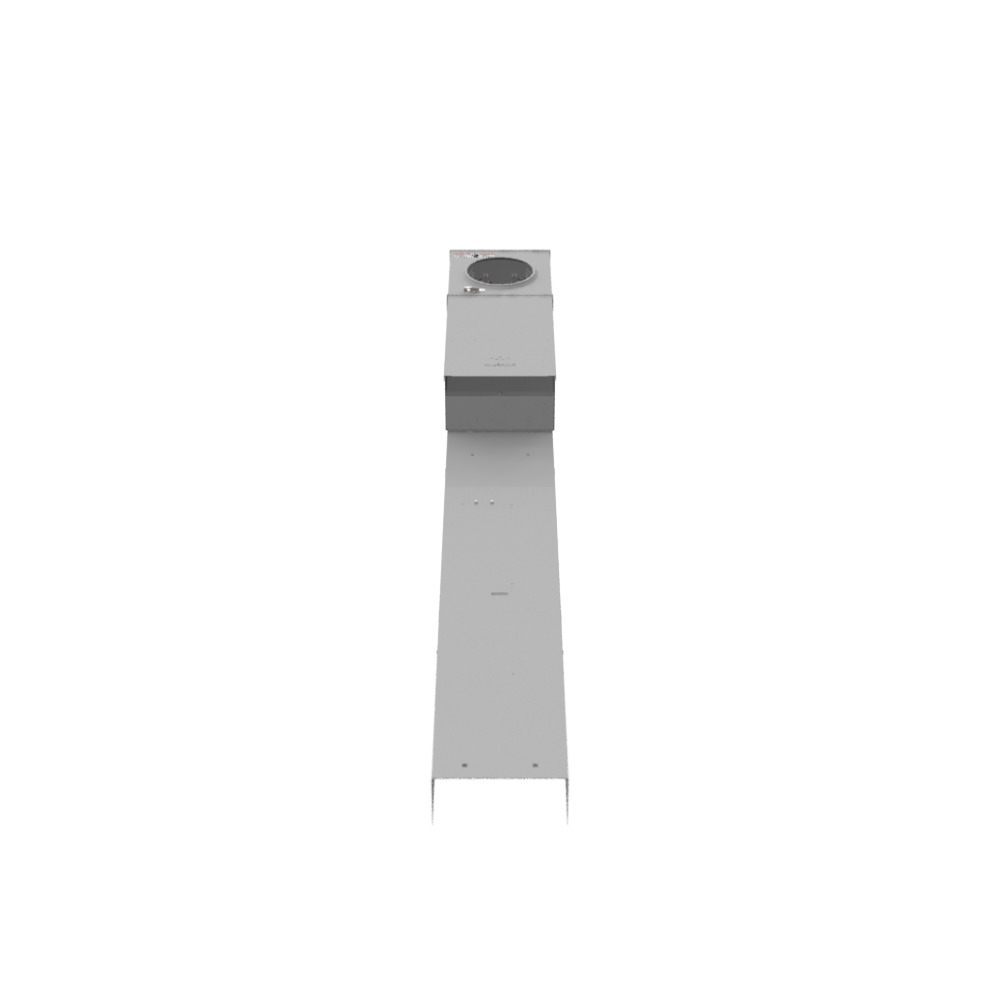

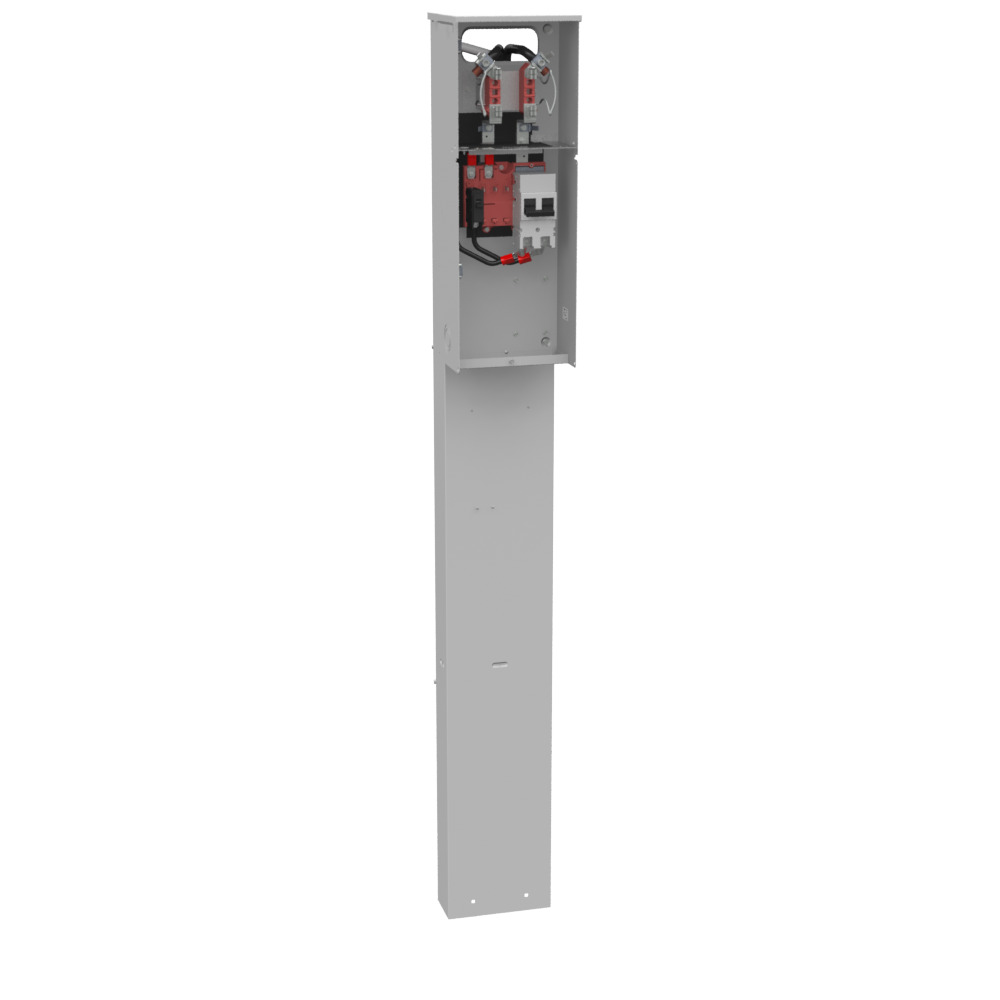

4 TERM RNGLS PLAIN TOP HRN BYPS 1-200 AMP MN BRKR SGL PED DIR BURY ALLIANT ENERGY
- MFR:
- Milbank
- MFR #:
- U5136-O-200S-ALT
- UPC:
- 784572496392
- Item #:
- 19988
4 TERM RNGLS PLAIN TOP HRN BYPS 1-200 AMP MN BRKR SGL PED DIR BURY ALLIANT ENERGY
- MFR #:
- U5136-O-200S-ALT
- UPC:
- 784572496392
- Item #:
- 19988
Availability
| Location | Available Qty |
|---|---|
| Available | 34 ea |
$1,430.80
each
4 TERM RNGLS PLAIN TOP HRN BYPS 1-200 AMP MN BRKR SGL PED DIR BURY ALLIANT ENERGY
Manuals and Documentation
| Catalog Number | U5136-O-200S-ALT |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Mobile Home Power |
| Bypass Type | Horn |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Alliant Energy |
| Standard | UL Listed;Type 3R |
| UPC | 784572496392 |
| GTIN | 00784572496392 |
| Item Type | Ringless Meter Socket |
| Length | 10.25 |
| Length UOM | Inch |
| Width | 9.688 |
| Width UOM | Inch |
| Height | 80 |
| Height UOM | Inch |
| Size | 10.25L x 9.688W x 80H |
| Terminals | Double Mechanical |
| Voltage Rating | Up to 240 Volts Alternating Current |
