Hubbell Wiring Device - Kellems

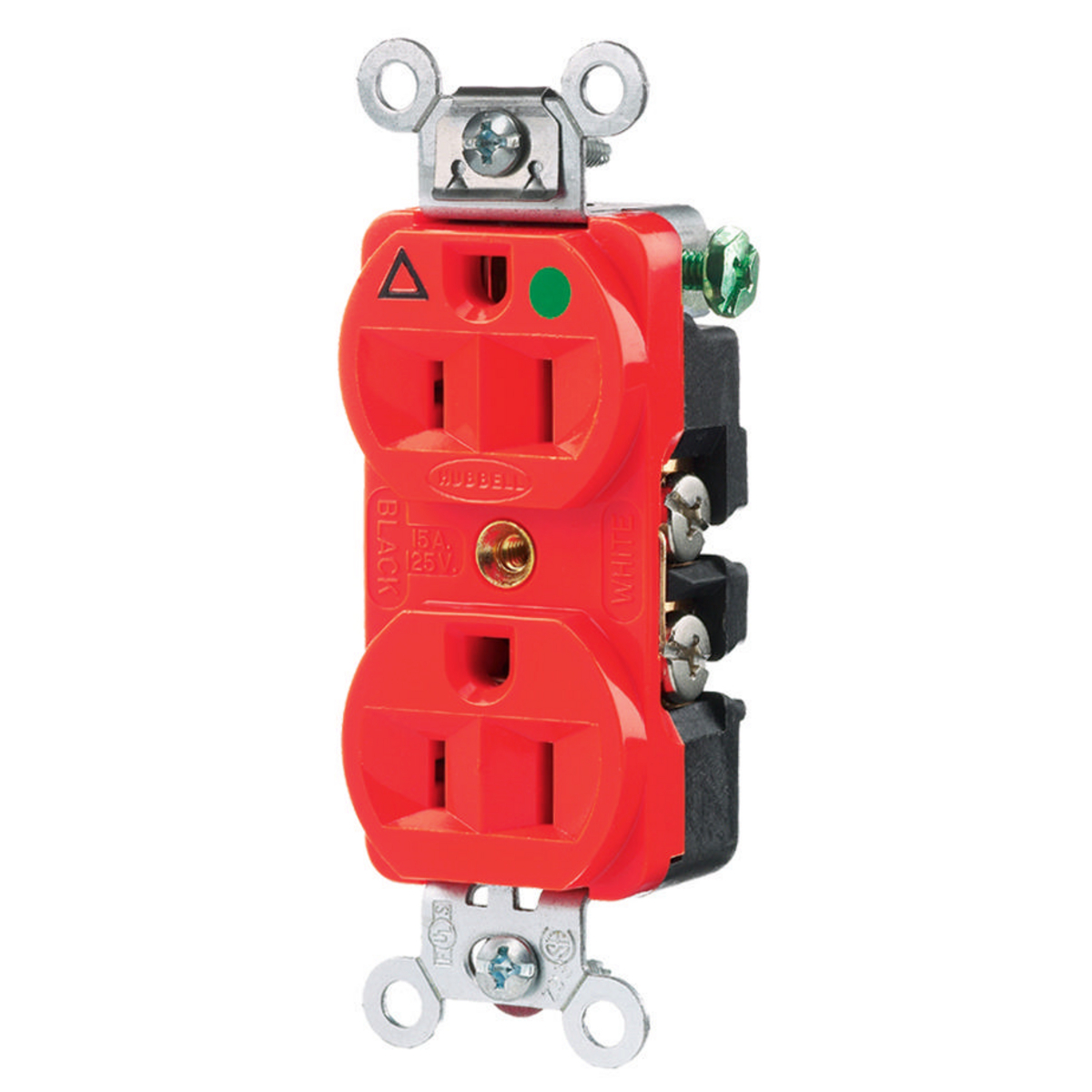

IG8200R 1-Phase Extra Heavy Duty Duplex Impact-Resistant Isolated Ground Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Red

MFR:
Hubbell Wiring Device-Kellems
MFR #:
IG8200R
UPC:
783585879185
Item #:
199660

Availability

Location Available Qty
Available Available to Order
$59.29 each

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than everHubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.

Manuals and Documentation
Catalog Number IG8200R
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Amperage Rating 15
Application Extra Heavy Duty Hospital Grade
Color Red
Connection Back and Side Wired Screw Terminals
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Isolated ground
Standard CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585879185
GTIN 00783585879185
Item Type Duplex Receptacle
Size 3.28 in x 1.33 in x 1.05 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 1,875 W
Wire Size #14 AWG to #10 AWG
