Discontinued
Square D

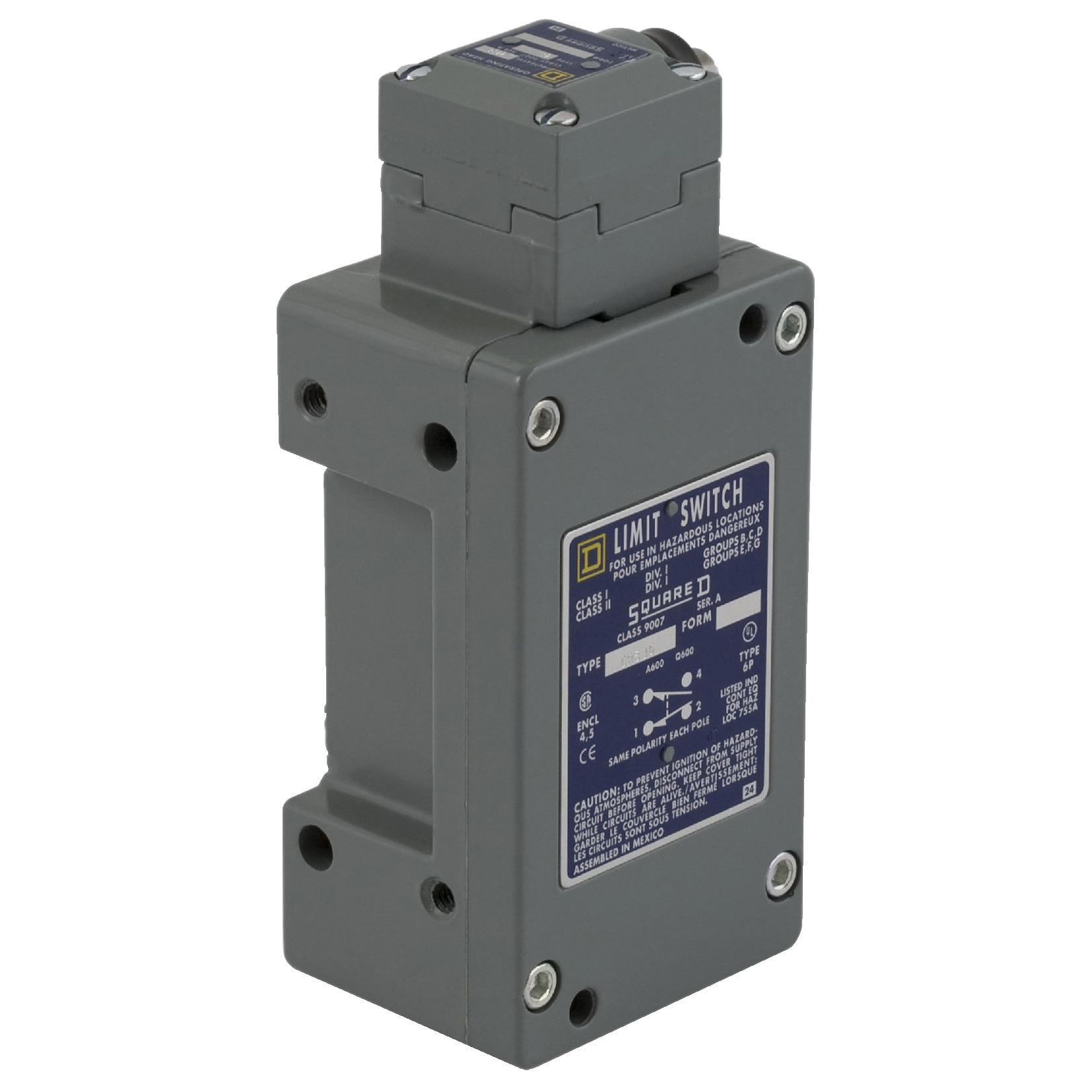

9007CR61GD Heavy Duty Limit Switch, 600 V, 10 A, Side Plunger Actuator, 2NO-2NC 2 Form Z DPDT-DB Contact, 2 Poles

MFR:
Schneider Electric
MFR #:
9007CR61GD
UPC:
785901348351
Item #:
199633

Availability

Location Available Qty
Available Available to Order

LIMIT SWITCH 600V 10AMP C +OPTIONS

Manuals and Documentation
Catalog Number 9007CR61GD
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty: 18 months
Country of Origin Mexico
Made in USA No
Action On end;Lateral approach, 1 direction;Snap action
Actuator Stainless steel spring return side plunger adjustable)
Amperage Rating 10
Application Hazardous location box
Connection Screw-clamp terminals AWG 22...AWG 12), 1-2
Contact Configuration 2(NC-NO);Form ZZ
Contact Rating NEMA A600/R300
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Mounting By The Body
Number of Poles 2
Operating Cycles 1000000 CYCLES
Special Features without
Standard 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
UPC 785901348351
GTIN 00785901348351
Item Type Limit switch
Size 3.03
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -20-185 A Degrees F HAZARDOUS LOCATION
Voltage Rating 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.11 A 250 V DC, R300 NEMA-0.55 A 125 V DC, R300 NEMA
