XS612B1PAL5 OsiSense Fixed Cylindrical Proximity Sensor With Reverse Polarity Protection, Inductive, PNP/Discrete Output, 1NO Contact, 10 to 58/12 to 48 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS612B1PAL5
- UPC:
- 785901681960
- Item #:
- 199217
XS612B1PAL5 OsiSense Fixed Cylindrical Proximity Sensor With Reverse Polarity Protection, Inductive, PNP/Discrete Output, 1NO Contact, 10 to 58/12 to 48 V DC
- MFR #:
- XS612B1PAL5
- UPC:
- 785901681960
- Item #:
- 199217
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$130.68
each

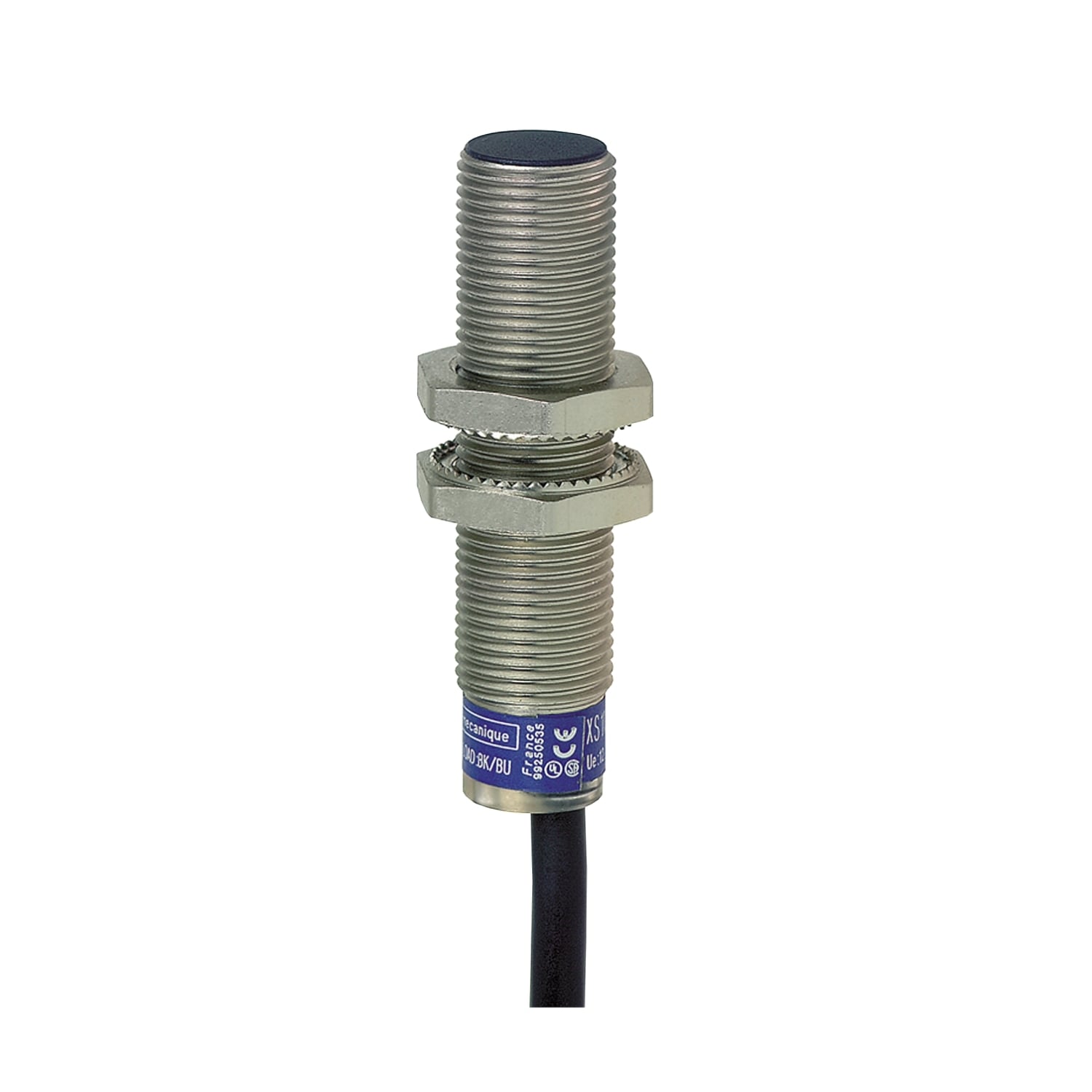

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, long case, flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a nickel plated brass case and a 5m long PvR cable. It has a sensing distance of 4mm. Three-wire, DC supply, 12V to 48V, NO function, PNP discrete output.
Manuals and Documentation
| Catalog Number | XS612B1PAL5 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | Mobile equipment |
| Connector | Cable |
| Enclosure | Nickel Plated Brass |
| Indicator | Output state 1 LED yellow) |
| Material | Metal |
| Mounting | Flush |
| Sensing Range | > 0.1...0.16 in (> 2.5...4 mm) |
| Sensor | 53 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | METAL |
| Standard | IP68 double insulation conforming to IEC 60529;IP69K conforming to DIN 40050;CE |
| Supply Voltage | 12...48 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=869684&lang=en-us |
| UPC | 785901681960 |
| GTIN | 03389110132632 |
| Item Type | Inductive proximity sensor;Cylindrical M12 |
| Operating Temperature | -25-70 A Degrees C |
| Cross Reference Products | Balluff BES516356BOCPU05|Rockwell 872CDH3NP12E5|Schneider XS1M12PA370L1|Schneider XS2M12PA370L1|Schneider XS2N12PA340L1|Schneider XS3P12PA370L1|Turck BI2G12AP7 |
