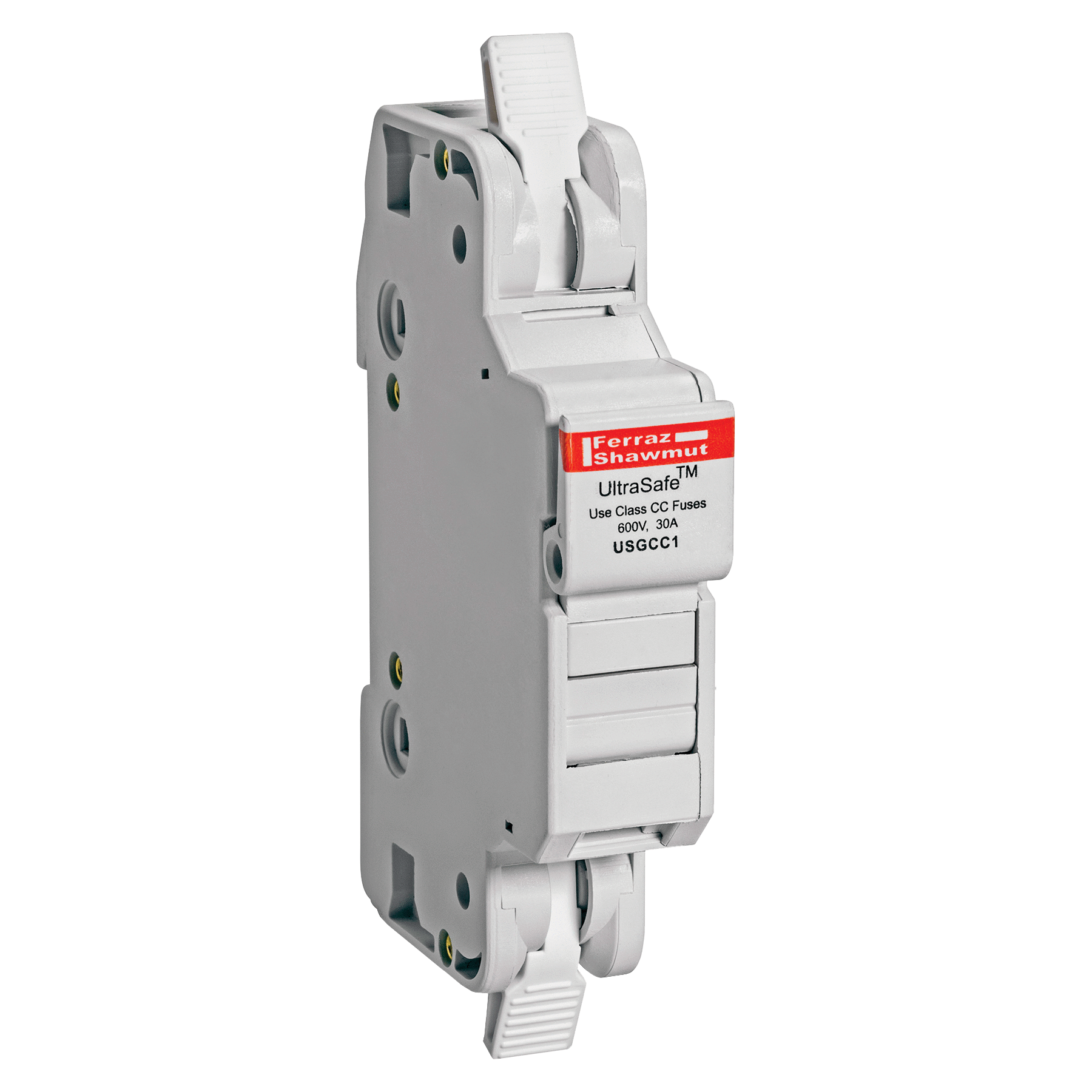

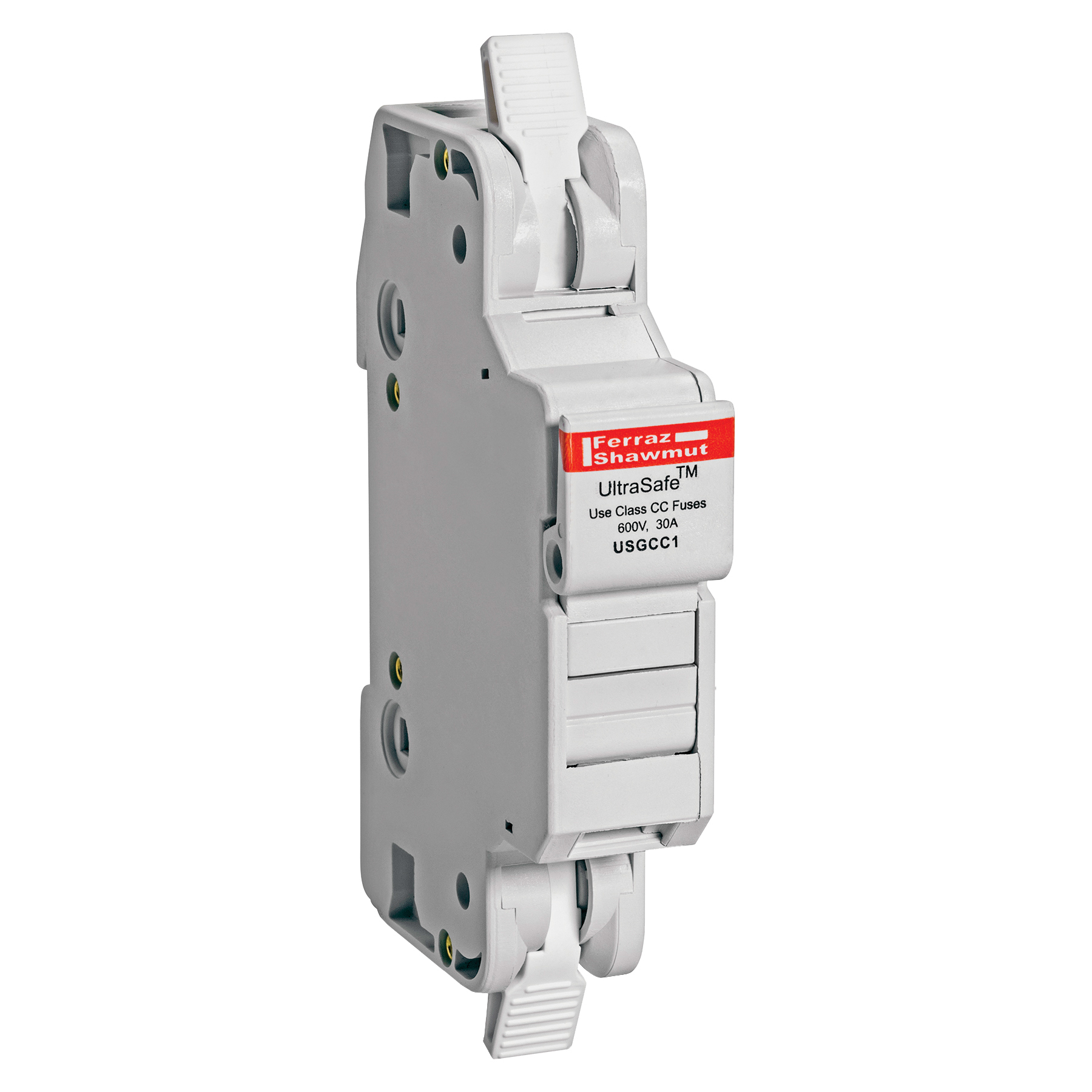

Fuse Holder 600VAC 600VDC Class CC 30A 1-Pole Cage Clamp IP65
- MFR:
- Mersen
- MFR #:
- USGCC1
- UPC:
- 782001438012
- Item #:
- 198077
Fuse Holder 600VAC 600VDC Class CC 30A 1-Pole Cage Clamp IP65
- MFR #:
- USGCC1
- UPC:
- 782001438012
- Item #:
- 198077
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$83.19
each

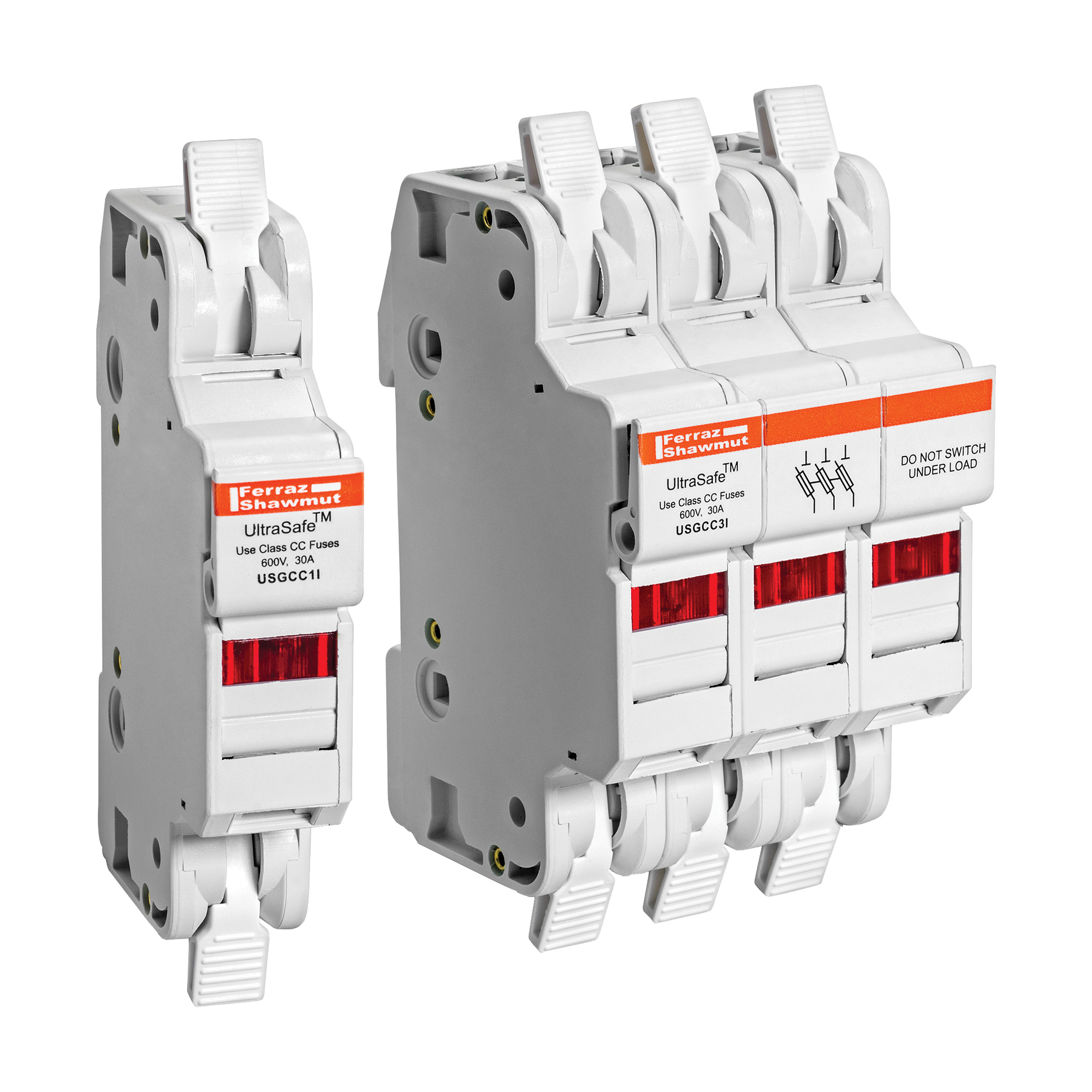

Fuse Holder UltraSafe 600VAC 600VDC Class CC 30A 1-Pole Cage Clamp IP65
Manuals and Documentation
| Catalog Number | USGCC1 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | All circuits up to 750VAC / 1000VDC for power control, power distribution and power electronics Non-load disconnect |
| Connection | Cage Clamp |
| Material | Glass Filled Polycarbonate |
| Mounting | Din Rail |
| Number of Poles | 1 |
| Phase | 1 |
| Special Features | Equipped with industry proven, patented WAGO CAGE CLAMP® technology (over 25 years of field experience and acceptance) Reduce wire installation time by up to 75 Highly reliable, maintenance free wire contact Secure, vibration proof, corrosion resistant, temperature cycling resistant, cost saving wire connection Quick, tool-free, easy fuse change-outs IP20 finger-safe protection Option visual blown fuse indicator DIN-rail mounting Compact footprint Environmentally conscious, RoHS compliant and lead free RECOMMENDED FUSE USAGE: USGM use with Midget Fuses: ATQ, ATM, TRM, OTM, A60Q-2, DCT-2 USGCC use with Class CC Fuses: ATDR, ATQR, ATMR USGM-HEL use with Photovoltaic Fuses: HP6M, HP10M |
| Standard | UL Listed to Standard 4248-4 (Class CC) and 4248-1 (Midget), File E52283 UL Listed to Standard 4248-18 (Photovoltaic), File E347822 CSA Certified C22.2 IEC Compliant (USGM only) |
| UPC | 782001438012 |
| GTIN | 00782001438012 |
| Item Type | UL/CSA Fuse Holders |
| Size | 4.13 x 0.68 x 2.17 |
| Voltage Rating | 600 |
