Rittal Corp

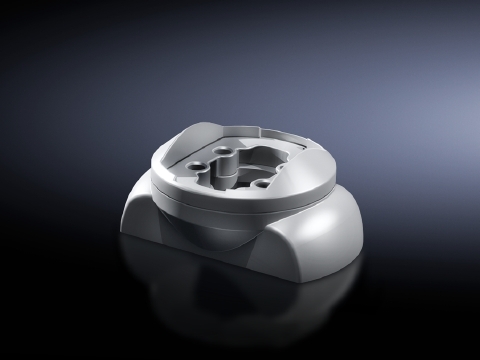

6206360 Enclosure Coupling Attachment, For Use With 120 x 65 mm Dia Support Arm Connection, Die Cast Zinc, Light Gray

MFR:: Rittal
MFR #:: 6206360
UPC:: 639889867765
Item #:: 197170

Rittal

6206360 Enclosure Coupling Attachment, For Use With 120 x 65 mm Dia Support Arm Connection, Die Cast Zinc, Light Gray

MFR #:: 6206360
UPC:: 639889867765
Item #:: 197170

Availability

Location	Available Qty
Available	Available to Order

$221.38 each

Product Details

Attachment CP 60, for support arm connection 120 x 65 mm, material: Die-cast zinc, color: RAL 7035, supply includes: Seals, Self-tapping screws for support section attachment, description: For rigid fastening of the enclosure to the support arm system 60, produkt group: Used with static loads ranging from 400 to 1800 N. Endless possibilities for combination, with a broad diversity of functions. Reliable cable protection in all applications. Perfect planning tool for fast, safe design of the support arm system to suit your application.

Features

Cable management options include closed duct with large cross-section or open duct for easy access and the use of preassembled cables with connectors
Featuring an x-shaped profile for greater load capacity, the system is designed to accommodate a variety of configurations with an assortment of coupling options
System sections can be cut to necessary lengths with no thread-tapping required
Mounting plates are available for wall mounts and pillars

Specifications

Catalog Number	6206360
Manufacturer	Rittal
Brand	Rittal Corp
Country of Origin	Germany
Made in USA	No
Color	RAL 7035
Consist of	Seals, Self-Tapping Screws for Support Section attachment
Material	Die-Cast Zinc
Special Features	Features: Self Tapping Screw
Standard	EN 60529
RoHS Indicator	Yes

UPC	639889867765
GTIN	00639889867765
Item Type	Attachment CP
Length	5.9060
Length UOM	Inch
Width	5.9060
Width UOM	Inch
Height	3.3460
Height UOM	Inch
Weight	2.381
Weight UOM	Pounds
