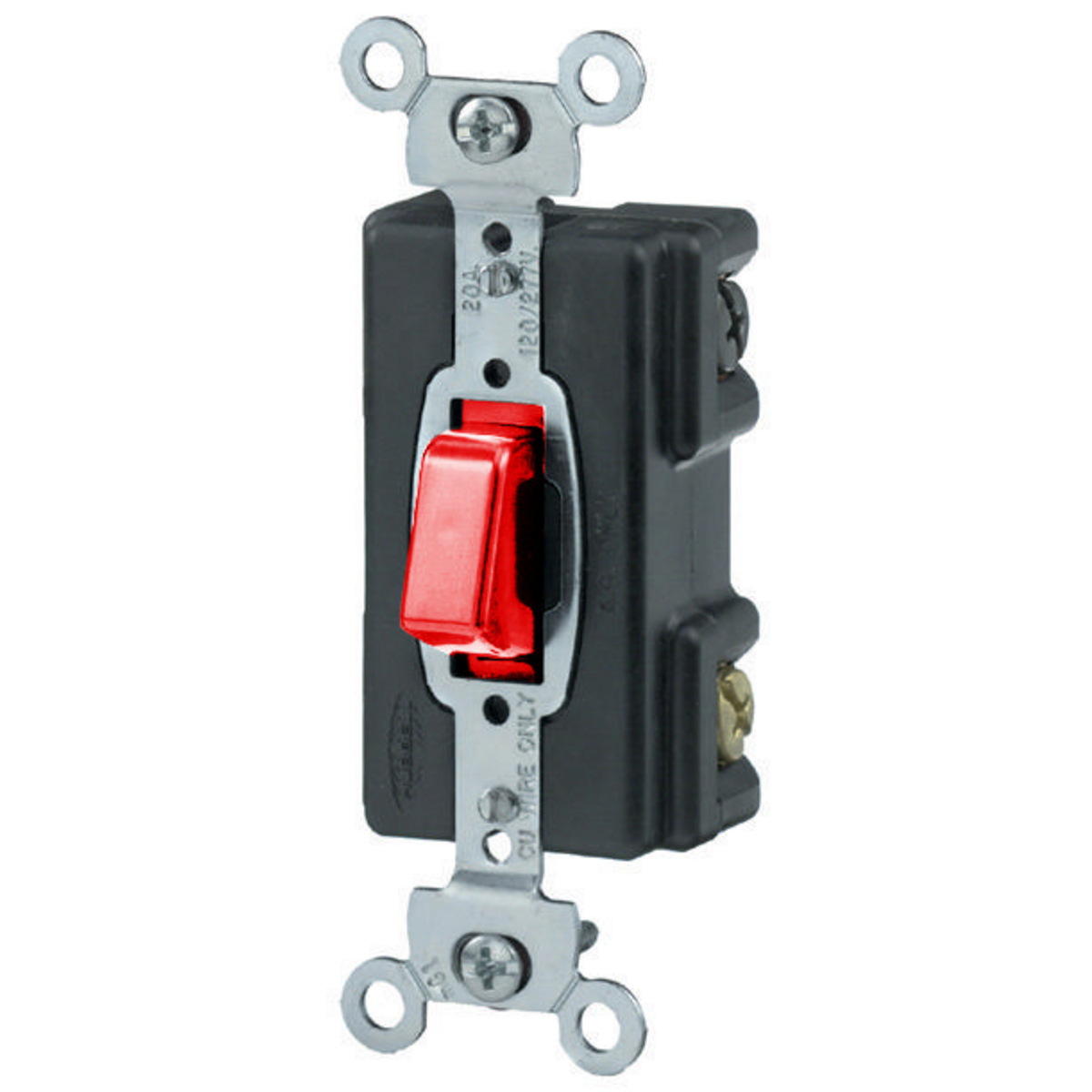

HBL1298 HBL 3-Way General Purpose Heavy Duty Pilot Light Standard Pushbutton Switch, 120 V AC, 20 A, 2400 W Power Rating, 2-Position Contact
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL1298
- UPC:
- 783585016948
- Item #:
- 197133
HBL1298 HBL 3-Way General Purpose Heavy Duty Pilot Light Standard Pushbutton Switch, 120 V AC, 20 A, 2400 W Power Rating, 2-Position Contact
- MFR #:
- HBL1298
- UPC:
- 783585016948
- Item #:
- 197133
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$143.57
each
Manuals and Documentation
| Catalog Number | HBL1298 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | SPDT |
| Actuator | Push Button |
| Amperage Rating | 20 |
| Application | Heavy Duty Industrial |
| Color | Red |
| Connection | Terminal Screws |
| Contact Configuration | Two Position |
| Indicator | Light On with Load On |
| Mounting | Screw |
| Number of Poles | 1 |
| Operating Cycles | 10,000 EST |
| Special Features | Standard Product |
| Standard | Fed. Spec. W-S-896 |
| UPC | 783585016948 |
| GTIN | 00783585016948 |
| Item Type | PresSwitches |
| Size | 3.28 in x 1.5 in x 1.45 in |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Operating Temperature | Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact |
| Voltage Rating | 120 |
| Wattage | 2400 W |
