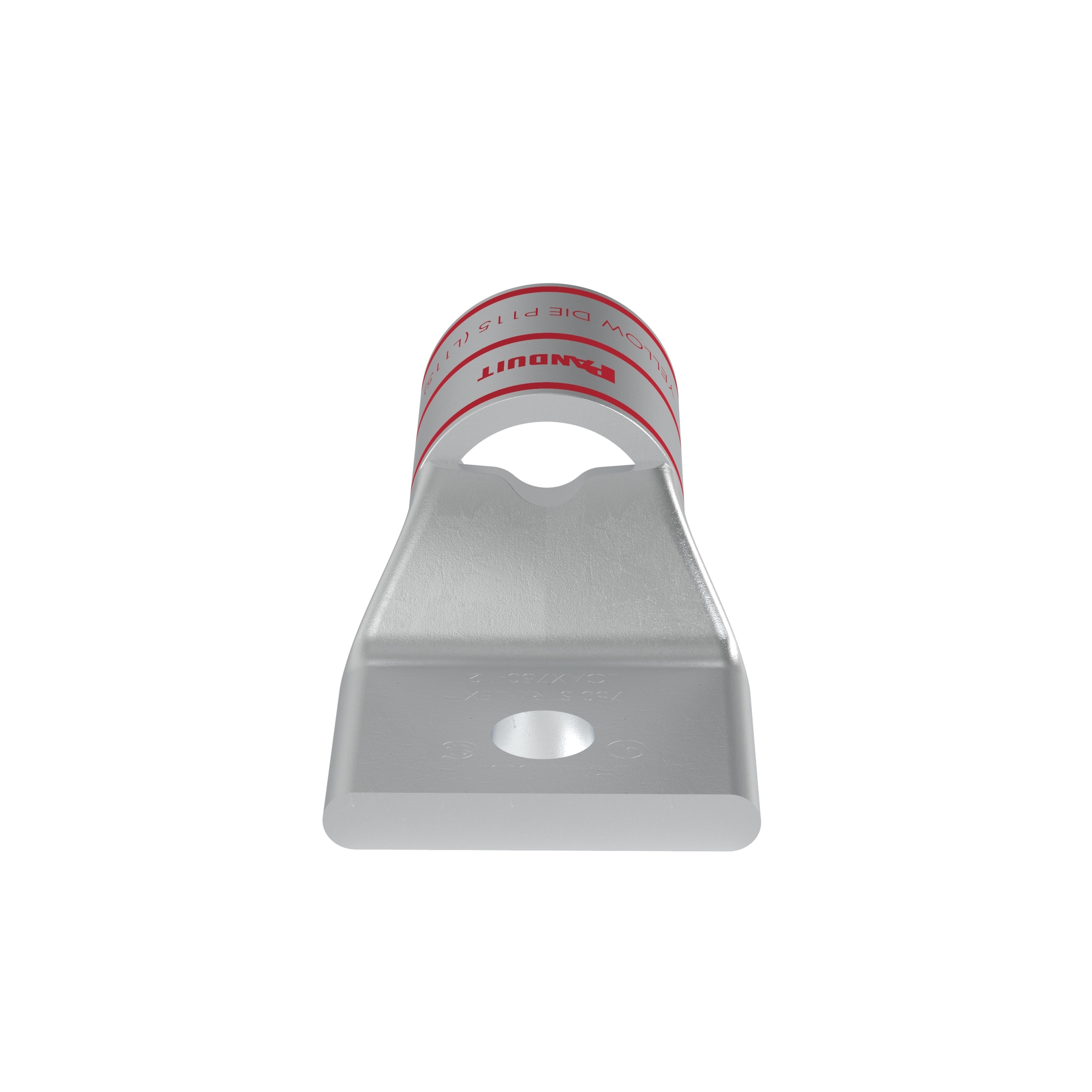

LCAX750-12-3 Pan-Lug 1-Hole Compression Lug Connector With Inspection Window, 777.7 kcmil Flexible Copper Conductor, Die Code: P115, 1/2 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCAX750-12-3
- UPC:
- 074983436088
- Item #:
- 197037
LCAX750-12-3 Pan-Lug 1-Hole Compression Lug Connector With Inspection Window, 777.7 kcmil Flexible Copper Conductor, Die Code: P115, 1/2 in Stud, Tin Plated Copper
- MFR #:
- LCAX750-12-3
- UPC:
- 074983436088
- Item #:
- 197037
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$118.2305
each
The LCAX750-12-3 One-Hole, Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Manuals and Documentation
| Catalog Number | LCAX750-12-3 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Material | Tin-Plated Copper |
| Number of Holes | 1 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| UPC | 074983436088 |
| GTIN | 00074983436088 |
| Item Type | Compression Lug |
| Size | 777.7 kcmil DLO |
| Stud Size | 1/2 IN |
