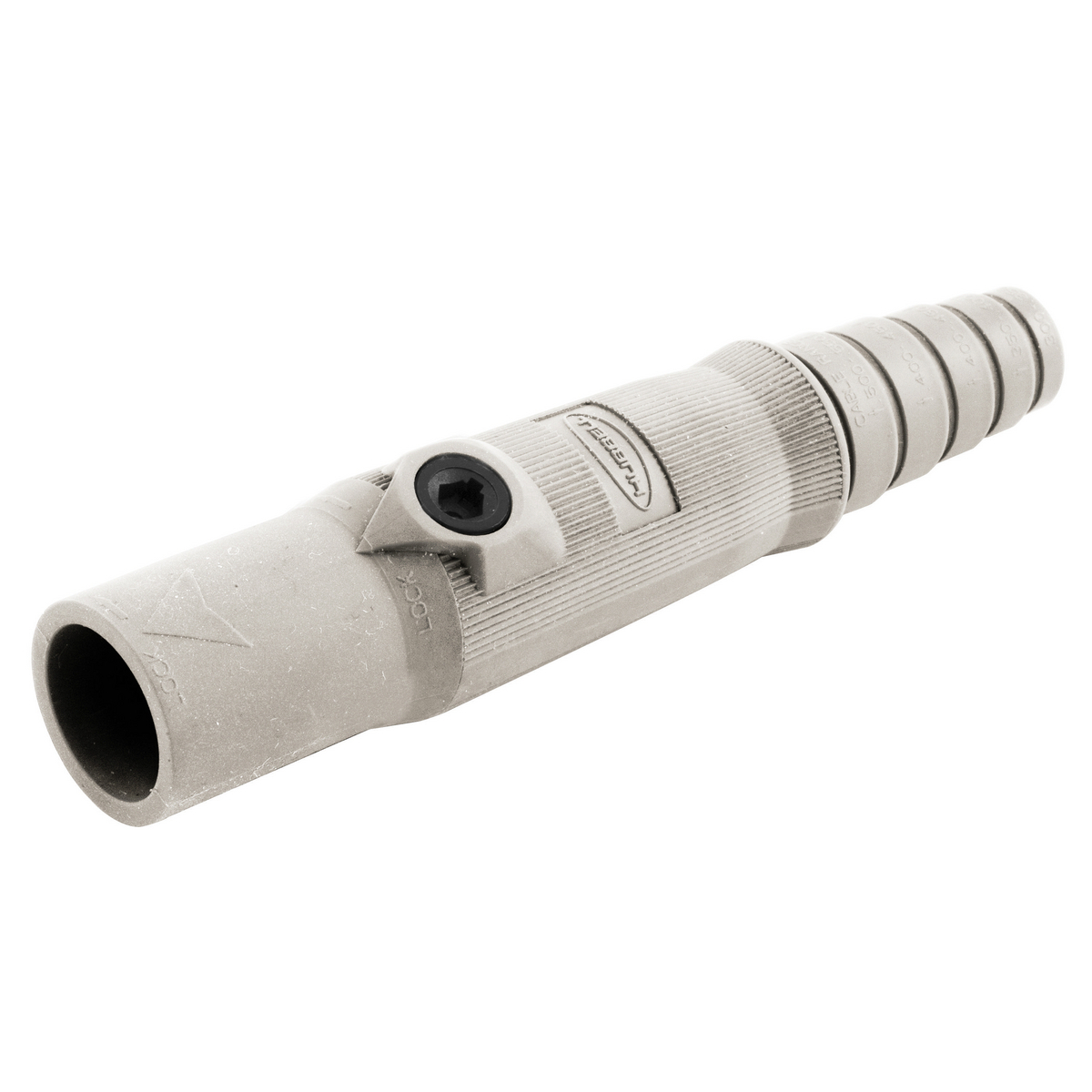

HBL15MW 15 Series 1-Pole Male Insulated Standard In-Line Plug With SC/PPC Cord, 600 V AC/250 V DC, 150 A, 8 to 2 AWG Wire, Setscrew Connection
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL15MW
- UPC:
- 783585458335
- Item #:
- 196997
HBL15MW 15 Series 1-Pole Male Insulated Standard In-Line Plug With SC/PPC Cord, 600 V AC/250 V DC, 150 A, 8 to 2 AWG Wire, Setscrew Connection
- MFR #:
- HBL15MW
- UPC:
- 783585458335
- Item #:
- 196997
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$44.35
each
Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
Manuals and Documentation
| Catalog Number | HBL15MW |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 150 |
| Application | High Ampacity Connections |
| Color | White |
| Connection | Set Screw |
| Material | Brass and Elastomer |
| Mounting | Cord |
| Number of Poles | 1 |
| Special Features | Standard Product |
| Standard | National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12 |
| UPC | 783585458335 |
| GTIN | 00783585458335 |
| Item Type | Plugs |
| Size | Standard Sized |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Voltage Rating | 600 AC Max |
| Wattage | 90000 W |
| Wire Size | #8 to #2 AWG |
| Cross Reference Products | 15D21-W |
