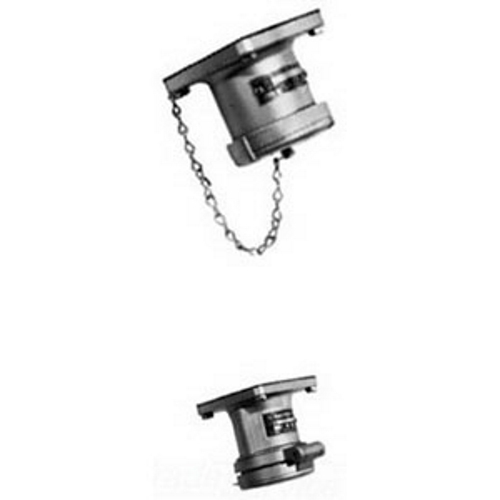

Powertite; Pin and Sleeve Receptacle; 30 Amp, 600 Volt AC, 2-Pole, 2-Wire, Pressure Wire Terminal, 1/2 - 3/4 Inch Hub
MFR: Appleton Electric
MFR #: ADR3022
UPC: 781381186322
Item #: 196882
Powertite; Pin and Sleeve Receptacle; 30 Amp, 600 Volt AC, 2-Pole, 2-Wire, Pressure Wire Terminal, 1/2 - 3/4 Inch Hub
MFR #: ADR3022
UPC: 781381186322
Item #: 196882
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$310.71
each
Powertite Grounding Style 1 Receptacle, Number Of Poles: 2, Number Of Wires: 2, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 1 PH, Material: Co
Manuals and Documentation
- Catalog Number
- ADR3022
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Sub Brand
- Powertite
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 30
- Application
- For ACP3022BC Metallic Clamping Ring Plug
- Connection
- Pressure Wire Terminal
- Material
- Copperfree (4/10 Of 1 PCT Maximum) Aluminum
- Mounting
- Box
- NEMA Rating
- 3, 3R, 4, 4X
- Number of Poles
- 2
- Number of Wires
- 2
- Phase
- 1
- Special Features
- Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 9/32 IN; Receptacle is NEMA 4X rated when screw cap is closed when the receptacle is not in use; Weatherproof spring door, brass with beryllium copper springs
- Standard
- UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
- UPC
- 781381186322
- GTIN
- 00781381186322
- Item Type
- Grounding Style 1 Receptacle
- Temperature Rating
- -40 To 107 DEG C
- Voltage Rating
- 600 VAC At 50 - 400 HZ, 250 VDC
- Wire Size
- 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex)
