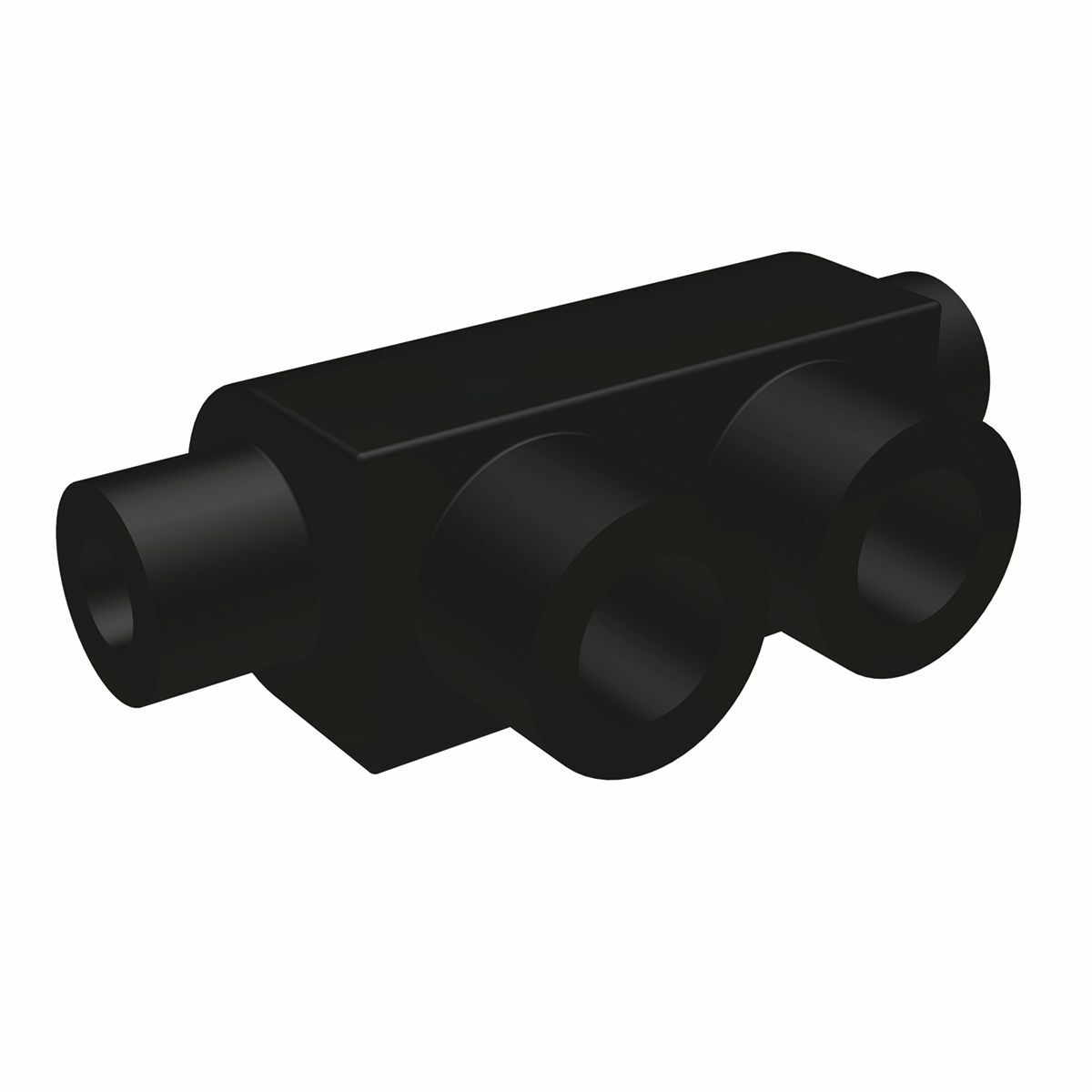

1PBS500 Multi-Port In-Line Splice Reducer, Aluminum/Copper/Stranded Conductor, 6 AWG to 500 kcmil Run/Main, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- 1PBS500
- UPC:
- 781810295892
- Item #:
- 196640
1PBS500 Multi-Port In-Line Splice Reducer, Aluminum/Copper/Stranded Conductor, 6 AWG to 500 kcmil Run/Main, Aluminum
- MFR #:
- 1PBS500
- UPC:
- 781810295892
- Item #:
- 196640
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
$194.91
each
Manuals and Documentation
| Catalog Number | 1PBS500 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Material | Aluminum |
| Special Features | Features: UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: In-Line, Torque: 375 IN-LB, Hex Size (key): 1/2 IN, Conductor Size (run - Range): 6 AWG - 500 KCMIL, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 2, Wire Strip Length: 1-1/2 IN |
| UPC | 781810295892 |
| GTIN | 00781810295892 |
| Item Type | BIBS, Multi-Port |
| Temperature Rating | 194 Degrees F |
| Cross Reference Products | PBT-500, ISR-600, ISR-500 |
