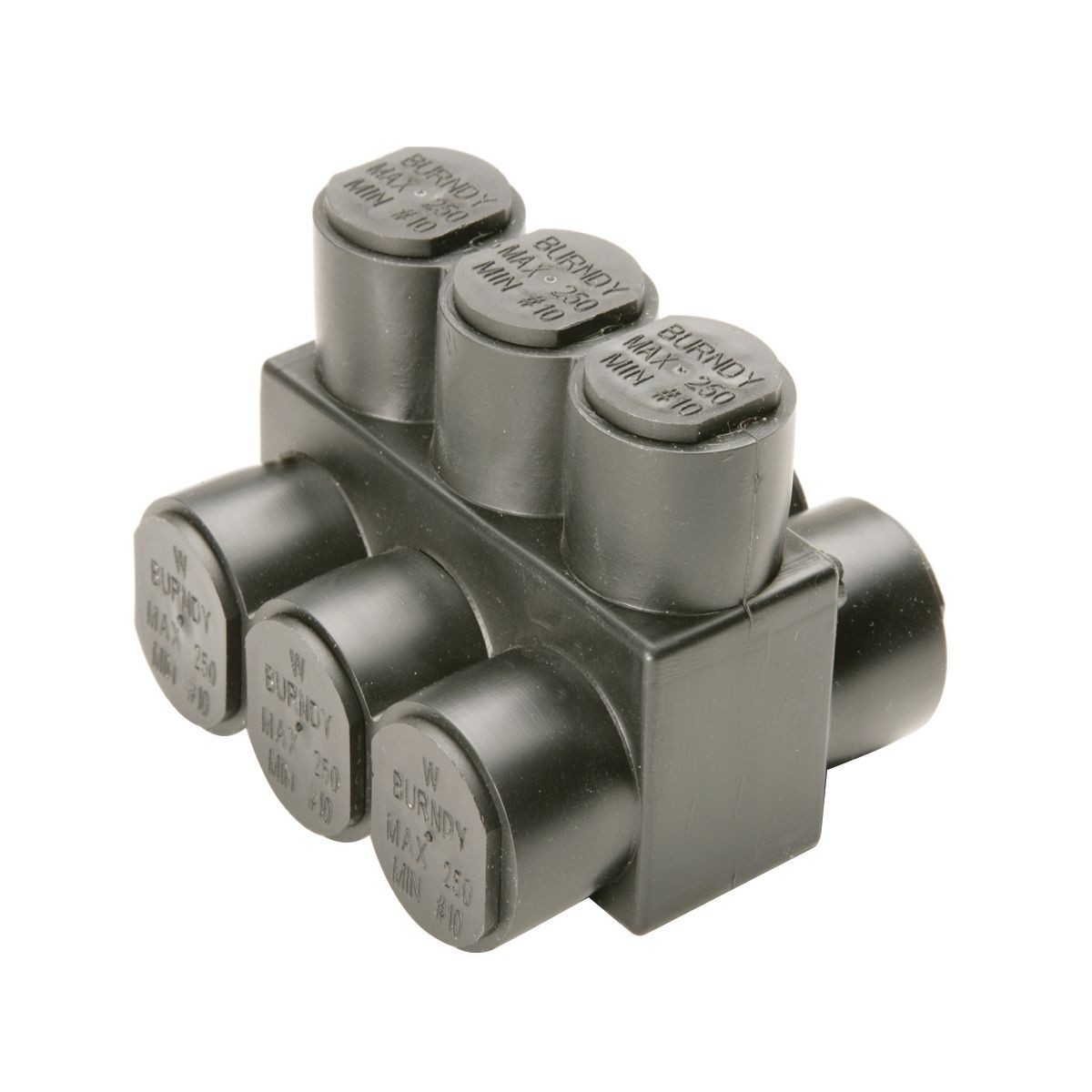

1PLD3503 3-Port 2-Sided Entry Multi-Port Connector, 10 AWG to 350 kcmil Aluminum/Copper/Stranded Conductor, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- 1PLD3503
- UPC:
- 781810287262
- Item #:
- 196617
1PLD3503 3-Port 2-Sided Entry Multi-Port Connector, 10 AWG to 350 kcmil Aluminum/Copper/Stranded Conductor, Aluminum
- MFR #:
- 1PLD3503
- UPC:
- 781810287262
- Item #:
- 196617
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$176.87
each
Manuals and Documentation
| Catalog Number | 1PLD3503 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Material | Aluminum |
| Special Features | Features: UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Double, Torque: 275 IN-LB, Hex Size (key): 5/16 IN, Conductor Size (run - Range): 10 AWG - 350 KCMIL, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 3, Wire Strip Length: 1-1/8 IN |
| UPC | 781810287262 |
| GTIN | 00781810287262 |
| Item Type | BIBD, Multi-Port |
| Temperature Rating | 194 Degrees F |
| Cross Reference Products | PBTD-3-350, IPLD350-3 |
