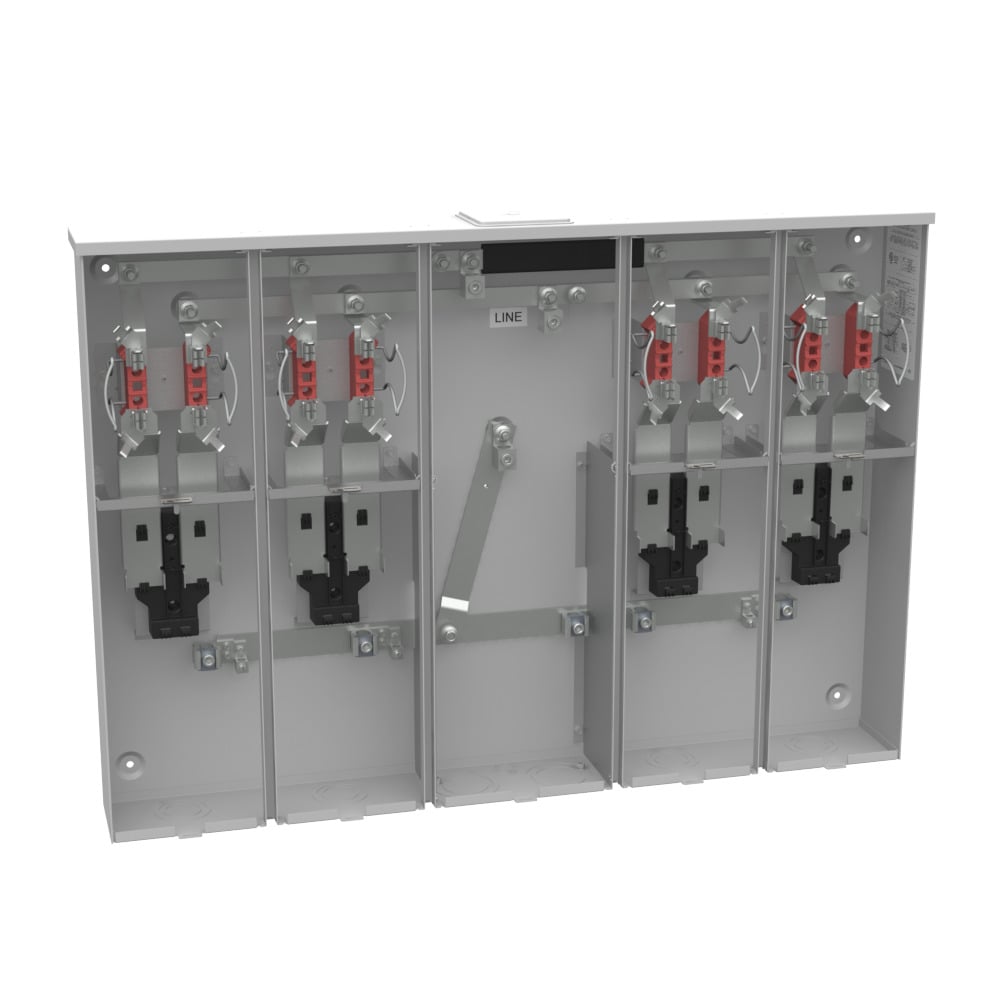

U5884-X-KK-K1-ALT 4 Term, Ringless, Large Closing Plate, Horn Bypass, 4 Position, 4-200 Amp, Main Breaker Provision, Single Connector, 6-350 kcmil, Alliant Energy
- MFR:
- Milbank
- MFR #:
- U5884-X-KK-K1-ALT
- UPC:
- 784572535176
- Item #:
- 196416
U5884-X-KK-K1-ALT 4 Term, Ringless, Large Closing Plate, Horn Bypass, 4 Position, 4-200 Amp, Main Breaker Provision, Single Connector, 6-350 kcmil, Alliant Energy
- MFR #:
- U5884-X-KK-K1-ALT
- UPC:
- 784572535176
- Item #:
- 196416
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,666.49
each
4 TERM RNGLS LRG CLS PLT HRN BYPS 4 POS 4-200 AMP MN BRKR PROV SGL CONN 6-350kcmil ALLIANT ENERGY
Manuals and Documentation
| Catalog Number | U5884-X-KK-K1-ALT |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket With Main |
| Bypass Type | Horn |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Alliant Energy |
| Standard | UL Listed;Type 3R |
| UPC | 784572535176 |
| GTIN | 00784572535176 |
| Item Type | Ringless Meter Socket |
| Length | 5.125 |
| Length UOM | Inch |
| Width | 42.813 |
| Width UOM | Inch |
| Height | 30 |
| Height UOM | Inch |
| Size | 5.125L x 42.813W x 30H |
| Terminals | Single Mechanical |
| Voltage Rating | Up to 240 Volts Alternating Current |
