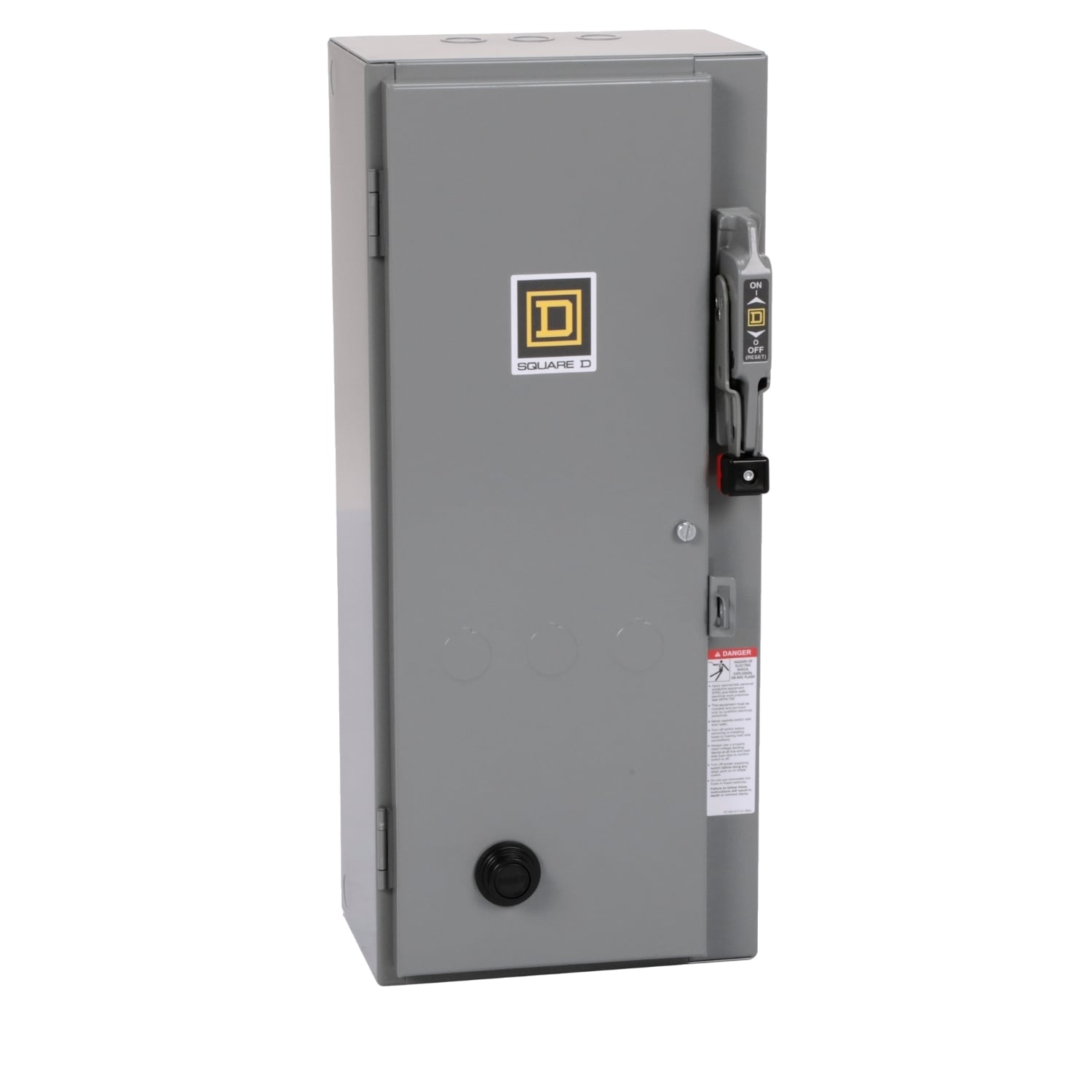

8538SCG14V81F4T Type S Combination Magnetic Starter With Fusible Disconnect Switch, 480/120 VAC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure

MFR:
Schneider Electric
MFR #:
8538SCG14V81F4T
UPC:
785901046004
Item #:
196275

Availability

Location Available Qty
Available Available to Order

Thermal units are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over-currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses or circuit breakers. Class 20 thermal units respond to overload current conditions according to trip curves. Combination starter has a 30 Amp Class H fuse clip. These thermal units have a one piece construction. The motor current passes through a small heater winding within these thermal units. Under overload conditions, the heat causes a special solder to melt allowing a ratchet wheel to spin free thus opening the control circuit contacts and opening the motor contacts.

Manuals and Documentation
Catalog Number 8538SCG14V81F4T
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
UPC 785901046004
GTIN 00785901046004
