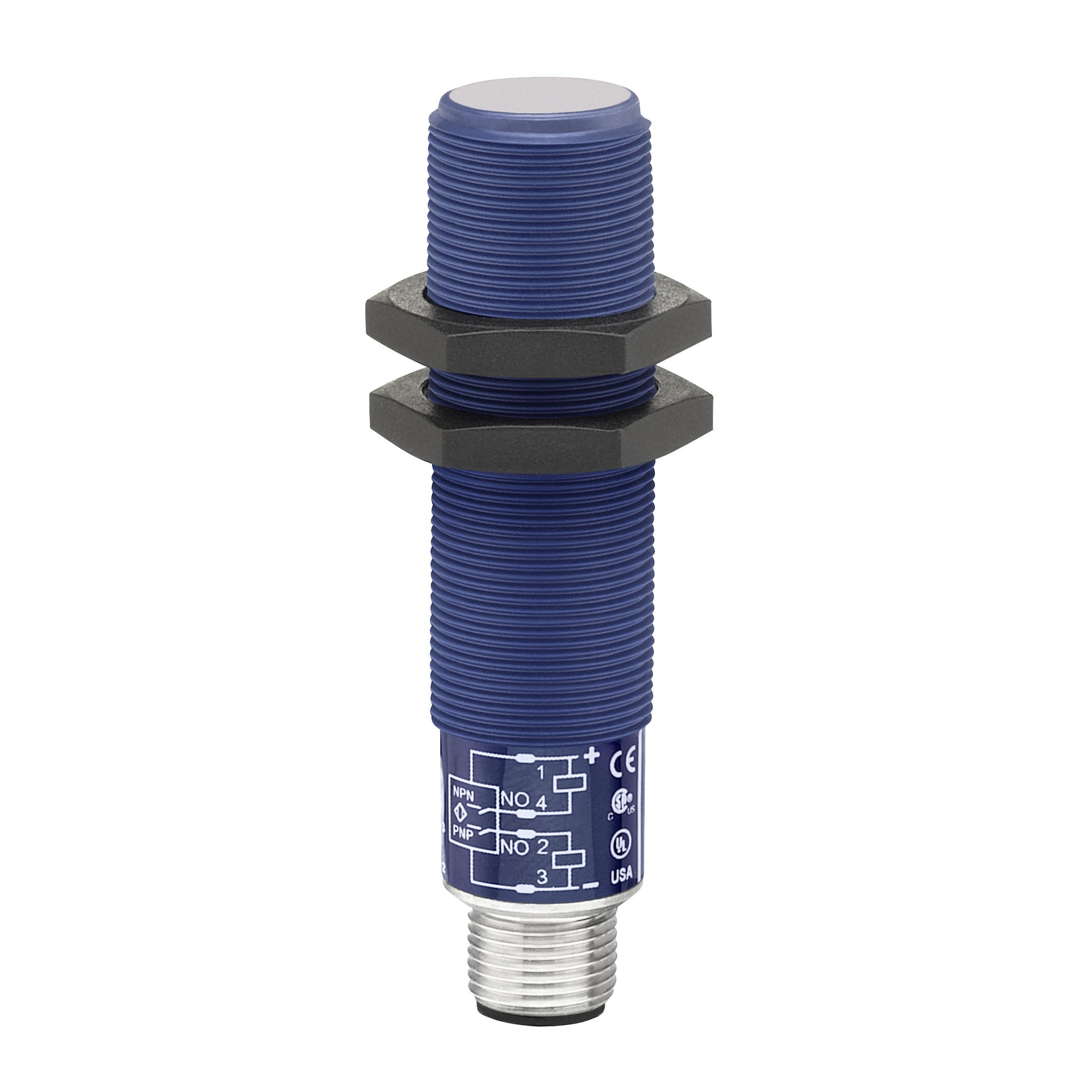

Ultrasonic sensor - discrete - 18 mm barrel - 12-24 V DC

Catalog Number SM650A21644TE
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin United States
Made in USA Yes
Application DISCRETE PROXIMITY
Connector 1 MALE CONNECTOR M12 4 PINS
Enclosure NEMA 4X INDOOR USE ONLY),ULTEM
Sensing Range 25.4-50.8 MM,50.8 MM
Sensor 18 MM,73.91 MM,ULTRASONIC SENSOR
Special Features PLASTIC
Standard 1 KV LEVEL 3 IEC 61000-4-4,10 V/M LEVEL 3 IEC 61000-4-3,30 GN IN ALL 3 AXES 11 MS IEC 60068-2-27,CE,IP67,UL
Supply Voltage 12...24 V DC OVERLOAD AND SHORT-CIRCUIT PROTECTION
GTIN 03389119103138
Item Type CYLINDRICAL M18,ULTRASONIC SENSOR
Operating Temperature 0-60 A Degrees C
Target Size CYLINDER DIAMETER 1.59 MM - UP TO 63.5 MM SENSING DISTANCE
