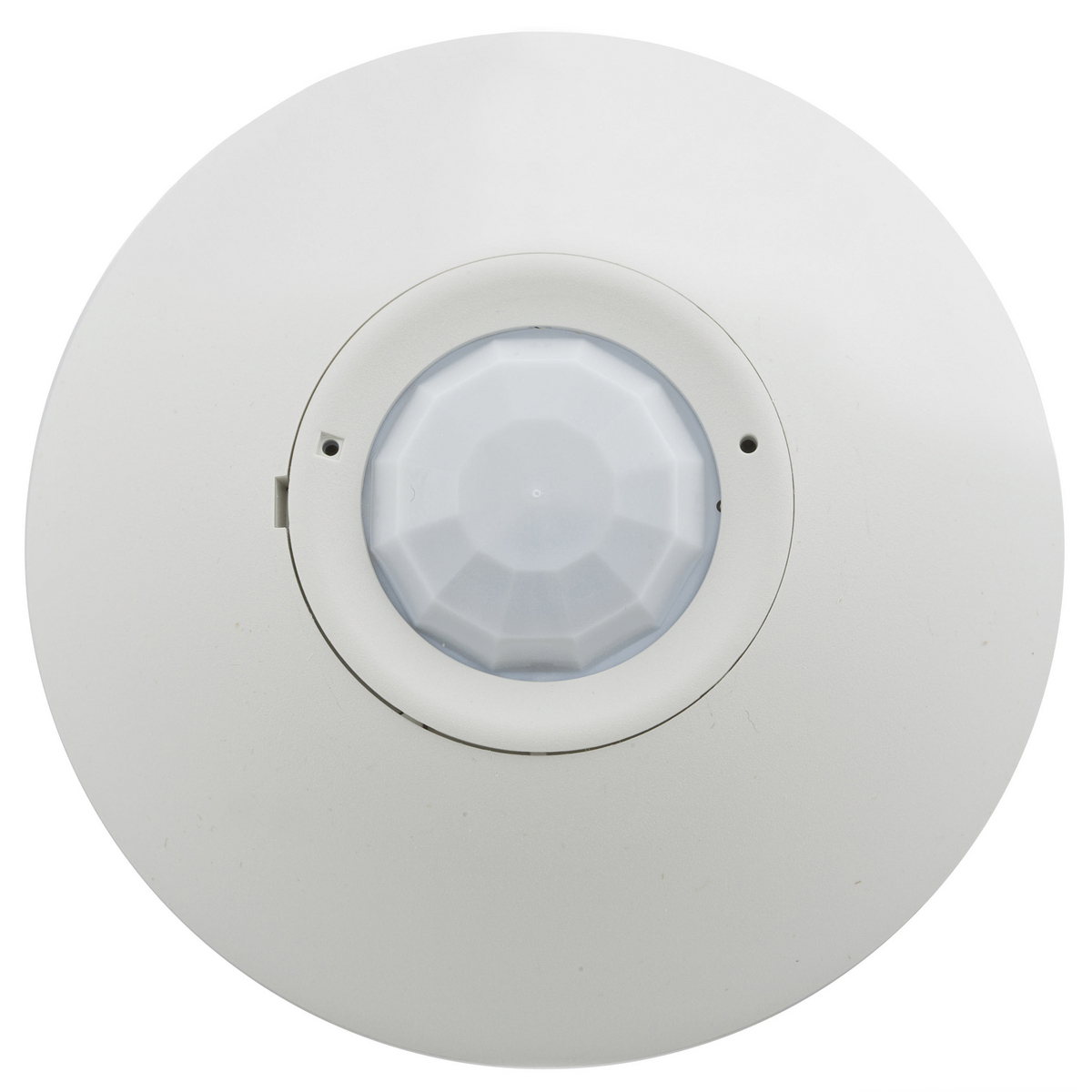

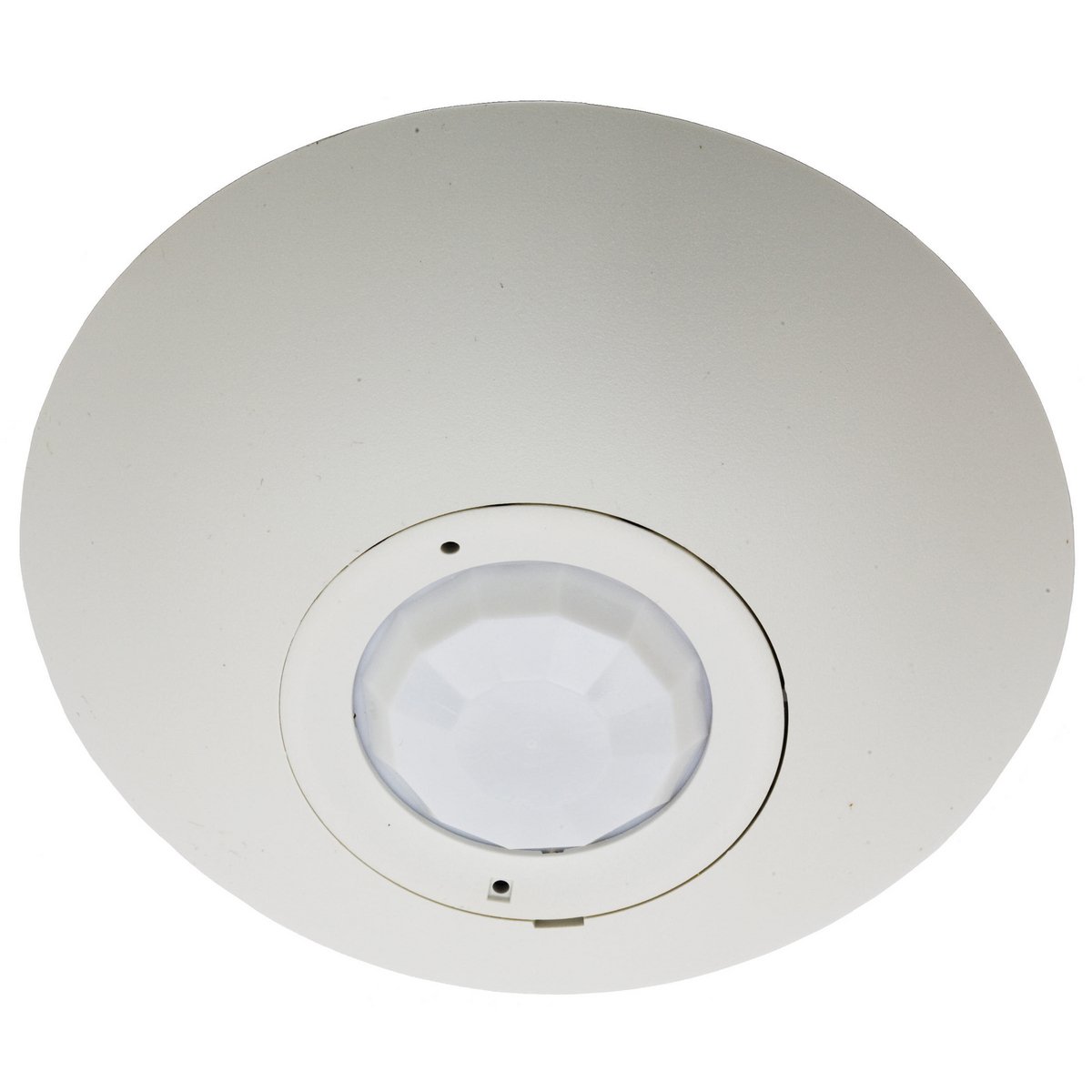

ATP1500CRP Low Voltage Adaptive Technology Occupancy Sensor With Photocell and Relay, 24 VDC, Passive Infrared Sensor, 1500 sq-ft Coverage, 360 deg Viewing
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- ATP1500CRP
- UPC:
- 783585392523
- Item #:
- 196005
ATP1500CRP Low Voltage Adaptive Technology Occupancy Sensor With Photocell and Relay, 24 VDC, Passive Infrared Sensor, 1500 sq-ft Coverage, 360 deg Viewing
- MFR #:
- ATP1500CRP
- UPC:
- 783585392523
- Item #:
- 196005
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$348.72
each
Standard Passive Infrared Technology requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.
Manuals and Documentation
| Catalog Number | ATP1500CRP |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Application | Compatible with most LED and CFL |
| Color | White |
| Connector | Wire Leads |
| Indicator | PIR= Red LED |
| Mounting | Ceiling |
| Operating Cycles | 6,000 Cycles Minimum |
| Sensing Range | 8 to 12 Feet Mounting Height |
| Sensitivity | Adaptive 0 to 100% |
| Sensor | Adaptive Passive Infrared |
| Special Features | With Photocell and Relay |
| Standard | ASHRAE 90.1 Compliant;cULus Listed To UL244A |
| Supply Voltage | 24V DC From Control Unit |
| UPC | 783585392523 |
| GTIN | 00783585392523 |
| Item Type | Sensors |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C) |
| Target Size | People in |
| Cross Reference Products | OSC04-I0W, OSC15-RIW |
