Telemecanique

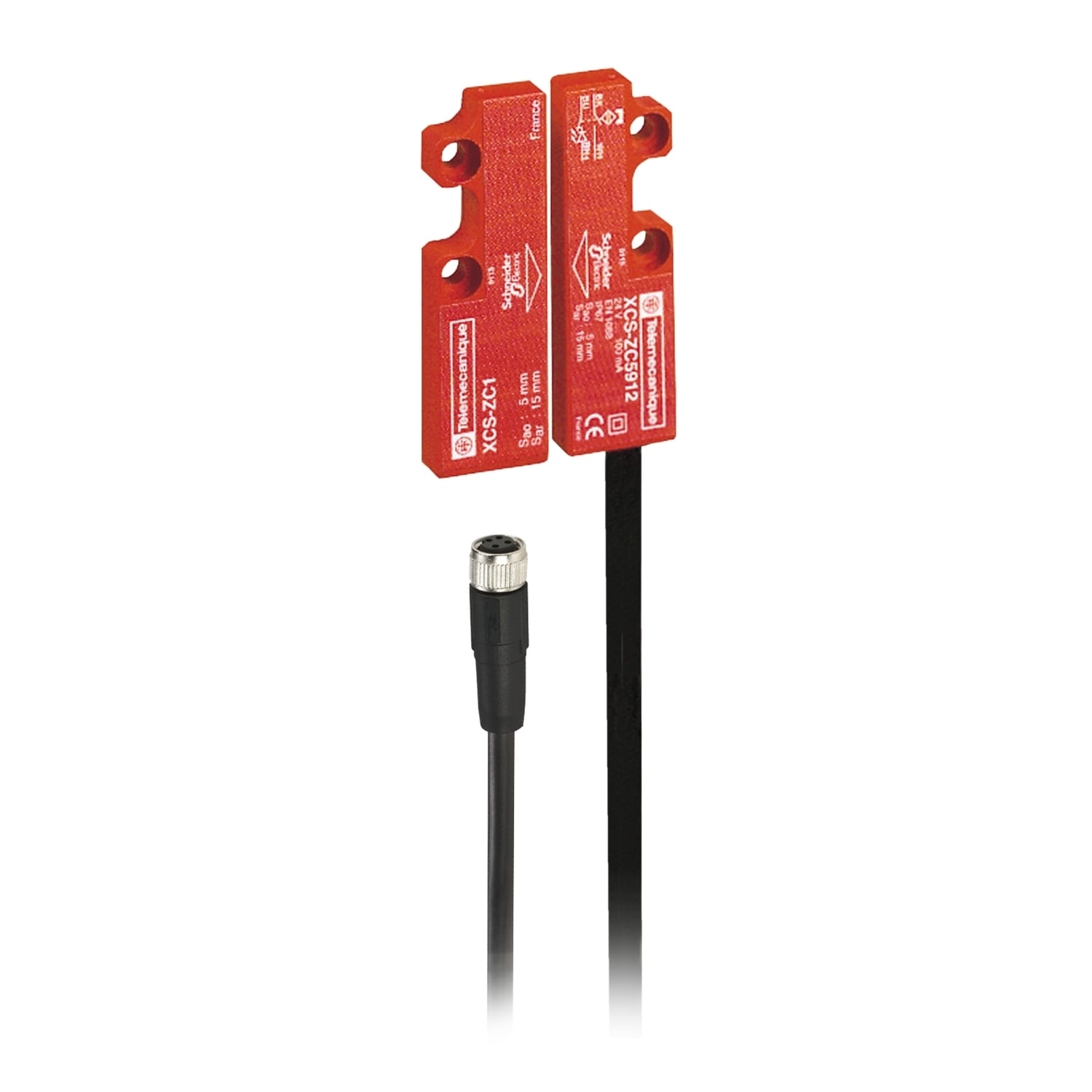

XCSDMC590L01M8 Preventa 3-Direction 2-Pole Safety Interlock Switch, Coded Magnetic Actuator, 100 mA at 24 V DC Contact, 1NO-1NC Contact, Rhodium Contact

MFR:
Telemecanique Sensors
MFR #:
XCSDMC590L01M8
UPC:
785901570127
Item #:
195707

Availability

Location Available Qty
Available Available to Order
$160.33 each

This XCSDMC Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 1 normally open and 1 normally closed staggered contact in presence of magnet. It has a compact rectangular design with a 15 centimeter PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSDMC590L01M8
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Staggered
Amperage Rating 100
Application SAFETY DETECTION
Color RED
Connection M8;Connector on flying lead
Contact Configuration 1 NC + 1 NO
Enclosure Thermoplastic PBT
Special Features PLASTIC
Standard 10 GN 10-150 HZ)IEC 60068-2-6,30 GN 11 MS IEC 60068-2-27,BG-UL-CSA,IP67 IEC 60529,ISO 14119-UL 508-EN/IEC 60204-1-EN/IEC 60947-5-1-CSA C22.2 NO 14-EN/ISO 12100,CLASS II EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858948&lang=en-us
UPC 785901570127
GTIN 03389118000209
Item Type Coded magnetic switch
Size 51 x 16 x 7 mm
Operating Temperature -25-85 A Degrees C
Voltage Rating 24 V DC
