BURNDY

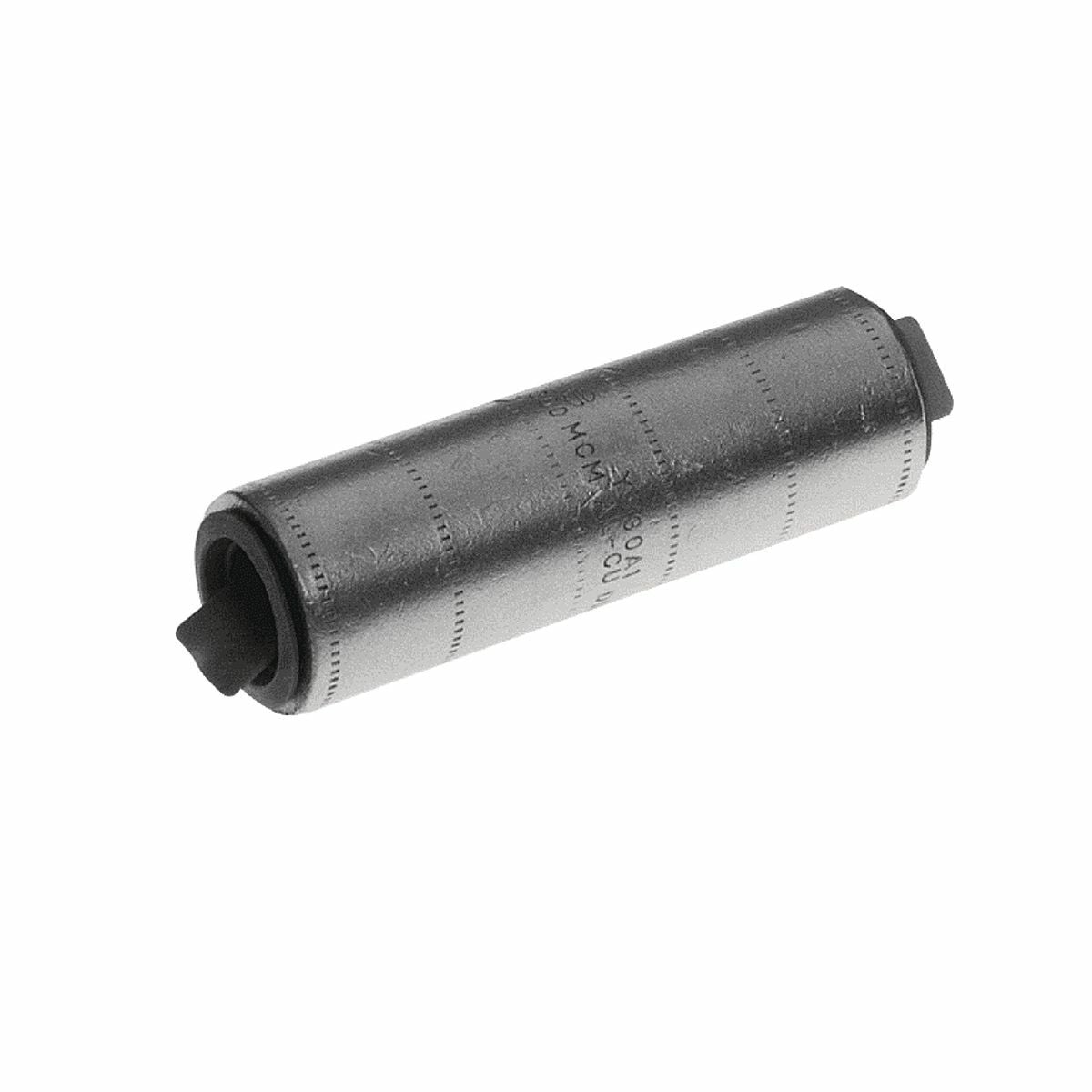

YS44A1 Type YS-A Standard Barrel Compression Butt Splice, 1000 kcmil Conductor, 5.94 in L, Long/Standard Barrel, Aluminum, Brown

MFR:
Burndy, a Hubbell affiliate
MFR #:
YS44A1
UPC:
781810766255
Item #:
195599

Availability

Location Available Qty
Available Available to Order
$430.31 each
Manuals and Documentation
Catalog Number YS44A1
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Splice
Finish Tin-Plated
Material ALUMINUM
Special Features Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides High-Conductivity/Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Entry, Solid Center Stop And Prefilled With PENETROX Oxide Inhibiting Compound: Provides Stop For Proper Conductor Insertion And An Aid In Forcing The PENETROX Between The Individual Wire Strands, Color-Coded End Caps: Provides Easy Wire Size And Die Code Identification Plus Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage, Connector Is Clearly Marked With Wire Size, Die Index And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation, Proper Compression Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, UL Listed for Aluminum only, Color Code: Brown, Die Index: 302 Element A, Wire Strip Length: 3 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y46 Tool, P44ART Die, (1), Conductor Type: Stranded Aluminum Or Copper
Standard UL 486A-486B
UPC 781810766255
GTIN 00781810766255
Item Type YS-A, Standard Barrel
Temperature Rating 194
Voltage Rating 35
