Telemecanique

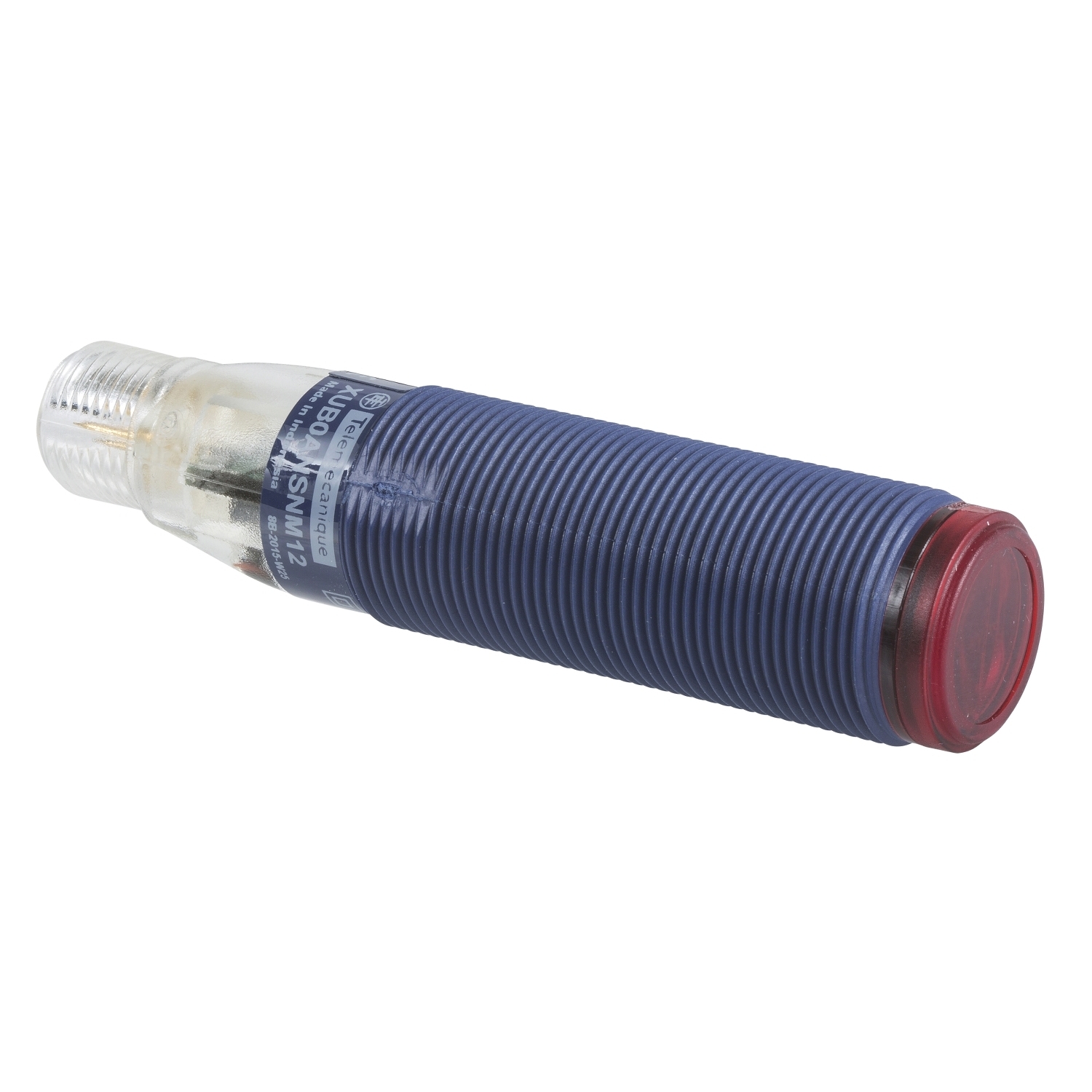

XUB1APBNM12 OsiSense XU XUB Series Single Mode Photoelectric Sensor, Cylindrical Shape, 4 m, Infrared Sensing Beam, 1 ms Response, PNP 1NC Output

MFR:
Telemecanique Sensors
MFR #:
XUB1APBNM12
UPC:
785901821663
Item #:
195584

Availability

Location Available Qty
Available Available to Order
$115.38 each

This design 18 single mode (reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals and Documentation
Catalog Number XUB1APBNM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connection 1 male connector M12, 4 pins
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,PBT
Operating Cycles <= 500 Hz
Output PNP;1 NC;Discrete;Solid state
Sensing Range 4-4 M REFLEX NEED REFLECTOR XUZC50,> 3.28...16.4 FT (> 1...5 M)
Special Features 1 LED yellow)output state
Standard CE-CSA-UL,IP67 DOUBLE INSULATION IEC 60529-IP65 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872700&lang=en-us
UPC 785901821663
GTIN 03389110148749
Item Type General purpose single mode;Reflex;Cylindrical M18;Photo-electric sensor
Size 0.71
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
