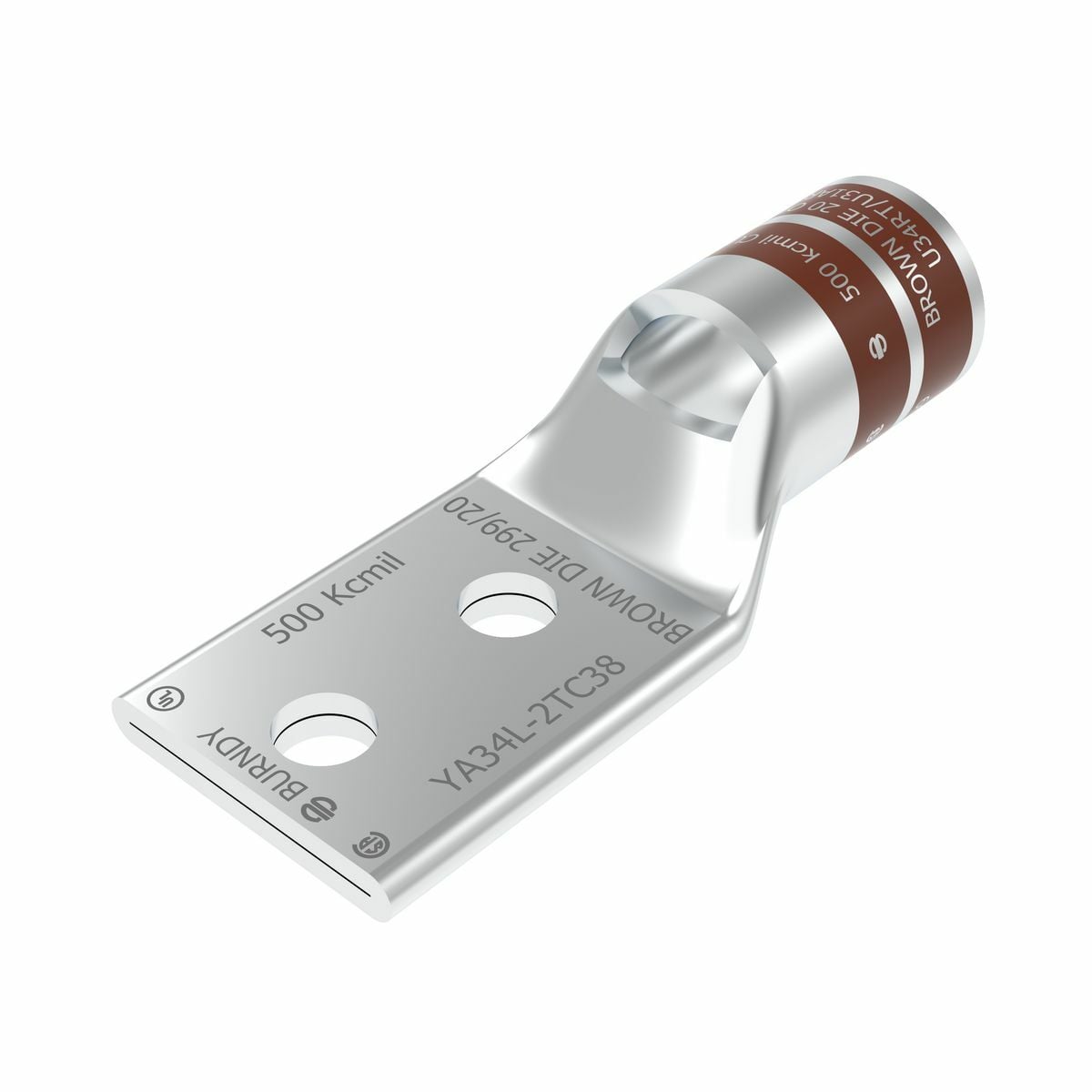

YA34L2TC38 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 500 kcmil Stranded Copper Conductor, Die Code: 20, 3/8 in Stud, Electro Plated Tin Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA34L2TC38
- UPC:
- 781810503690
- Item #:
- 195579
YA34L2TC38 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 500 kcmil Stranded Copper Conductor, Die Code: 20, 3/8 in Stud, Electro Plated Tin Copper
- MFR #:
- YA34L2TC38
- UPC:
- 781810503690
- Item #:
- 195579
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$69.32
each
Manuals and Documentation
| Catalog Number | YA34L2TC38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 20, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Wire Strip Length: 1-7/16 IN, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W34VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W34VT, W34RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U34RT, U31ART Die, (2), Y46 Tool, U34RT, U31ART Die With PUADP-1 Adapter, (2), Color Code: Brown, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) |
| Standard | UL 486A-486B |
| UPC | 781810503690 |
| GTIN | 00781810503690 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
