Telemecanique

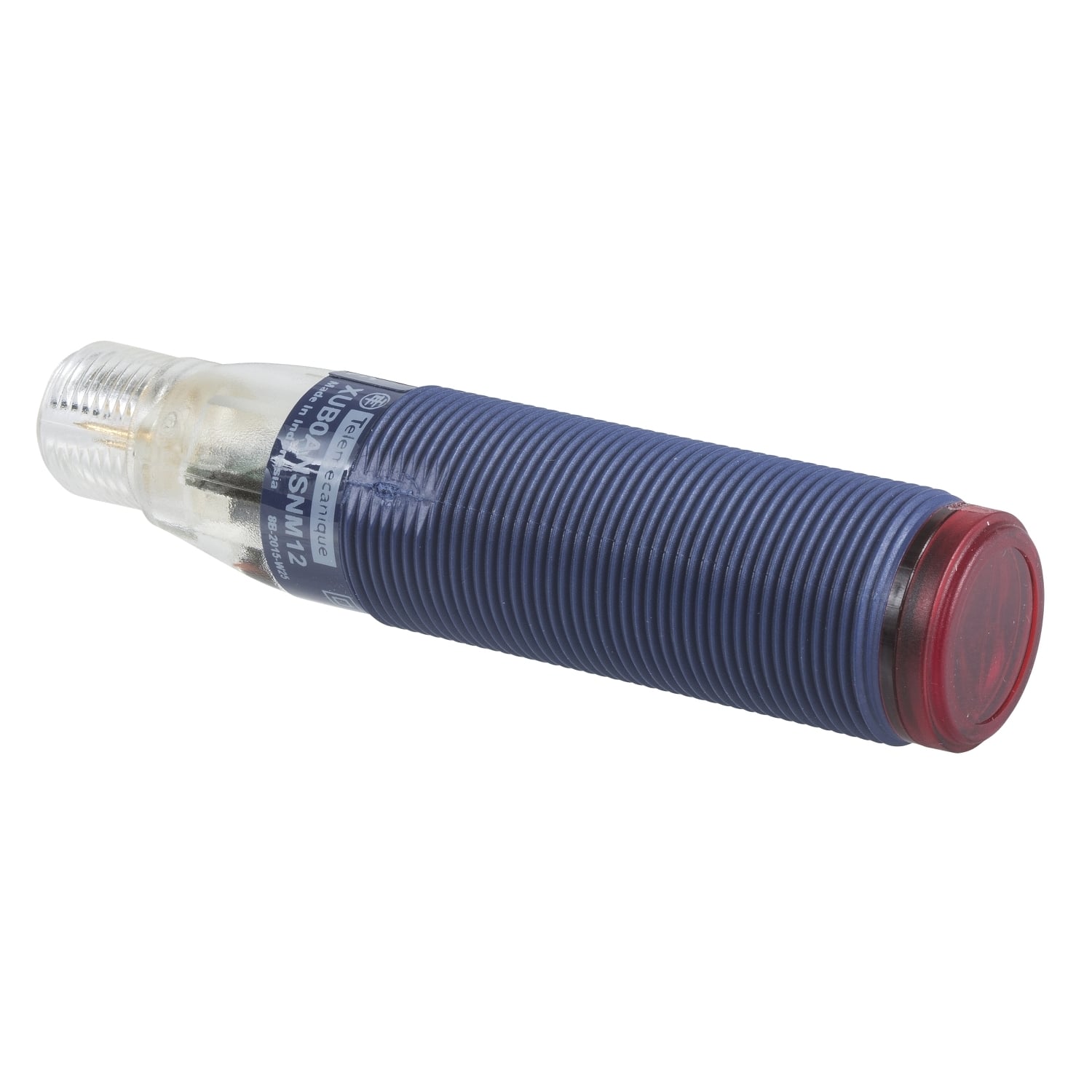

XUB2AKSNM12T OsiSense XU 3-Wire Axial Corrosion-Resistant Dusttight/Watertight Photoelectric Sensor, M18 Cylindrical Shape, 20 m, Infrared Sensing Beam, 1 ms Response, Solid State Output

MFR:
Telemecanique Sensors
MFR #:
XUB2AKSNM12T
UPC:
785901821588
Item #:
195566

Availability

Location Available Qty
Available Available to Order
$69.79 each

This design 18 single mode (thru-beam system) photo-electric transmitter has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric emitter has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals and Documentation
Catalog Number XUB2AKSNM12T
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application -
Connection 1 male connector M12, 4 pins
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,PBT
Operating Cycles <= 500 Hz
Output Discrete;Solid state
Sensing Range 15-15 M THRU BEAM NEED A RECEIVER,> 16.4...49.21 FT (> 5...15 M)
Special Features 1 LED green)supply on
Standard CSA-UL-CE,IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872760&lang=en-us
UPC 785901821588
GTIN 03389110149418
Item Type General purpose single mode;Thru beam;Cylindrical M18;Photo-electric sensor transmitter
Size 0.71
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
