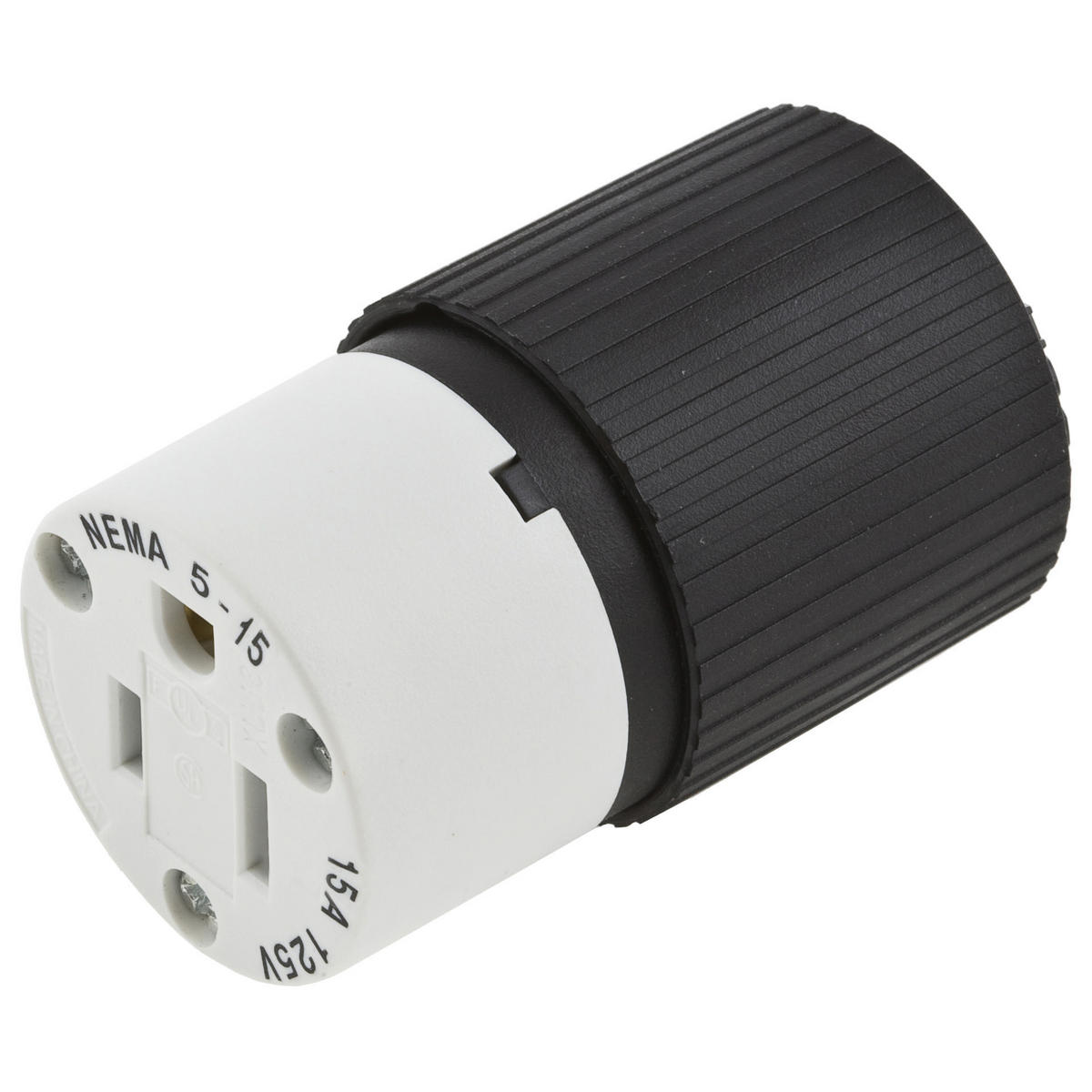

515C Female Standard Sized Straight Cord Mount Connector Body, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- 515C
- UPC:
- 783585357577
- Item #:
- 19547
515C Female Standard Sized Straight Cord Mount Connector Body, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
- MFR #:
- 515C
- UPC:
- 783585357577
- Item #:
- 19547
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$32.68
each
Manuals and Documentation
| Catalog Number | 515C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Commercial Grade |
| Color | Black |
| Conductor Range | #14 AWG to #12 AWG |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| NEMA Rating | 5 |
| Number of Conductors | 3-Wire Grounding |
| Number of Poles | 2 |
| Special Features | Standard |
| Standard | NEMA WD1 and WD5, UL498 |
| UPC | 783585357577 |
| GTIN | 00783585357577 |
| Item Type | Select-Spec |
| Size | Standard |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 125 |
| Cross Reference Products | 5296BK |
