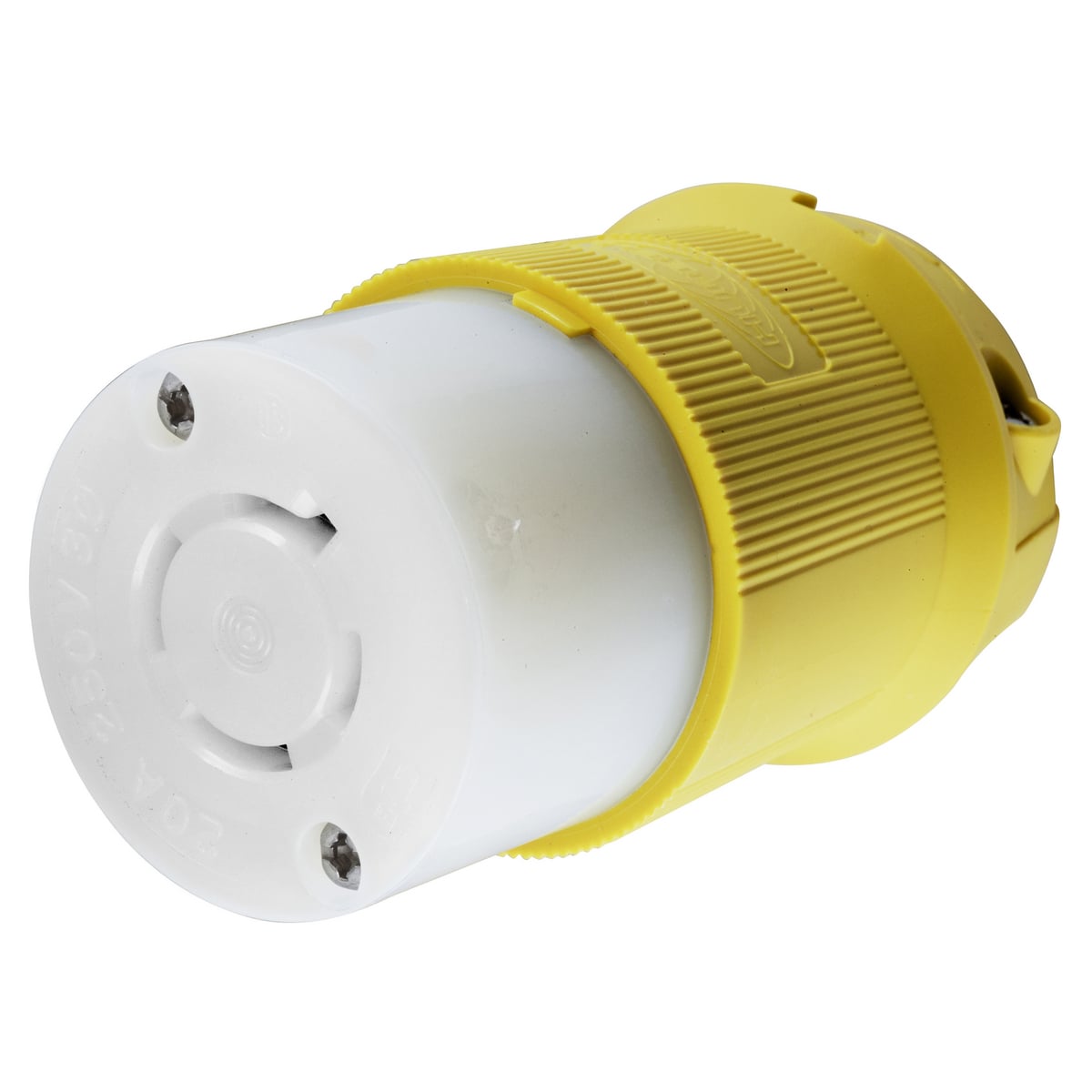

HBL24CM23 3-Phase Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 250 Delta V AC, 20 A, 3 Poles, 4 Wires, Yellow
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL24CM23
- UPC:
- 783585038506
- Item #:
- 195450
HBL24CM23 3-Phase Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 250 Delta V AC, 20 A, 3 Poles, 4 Wires, Yellow
- MFR #:
- HBL24CM23
- UPC:
- 783585038506
- Item #:
- 195450
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$97.87
each
Manuals and Documentation
| Catalog Number | HBL24CM23 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Heavy Duty Industrial |
| Color | Yellow |
| Conductor Range | #12AWG to #10AWG |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| NEMA Rating | 5 |
| Number of Conductors | 4-Wire Grounding |
| Number of Poles | 3 |
| Special Features | Corrosion Resistant |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585038506 |
| GTIN | 00783585038506 |
| Item Type | Connector Body |
| Size | 2.33 in x 2.33 in x 3.86 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 250 |
