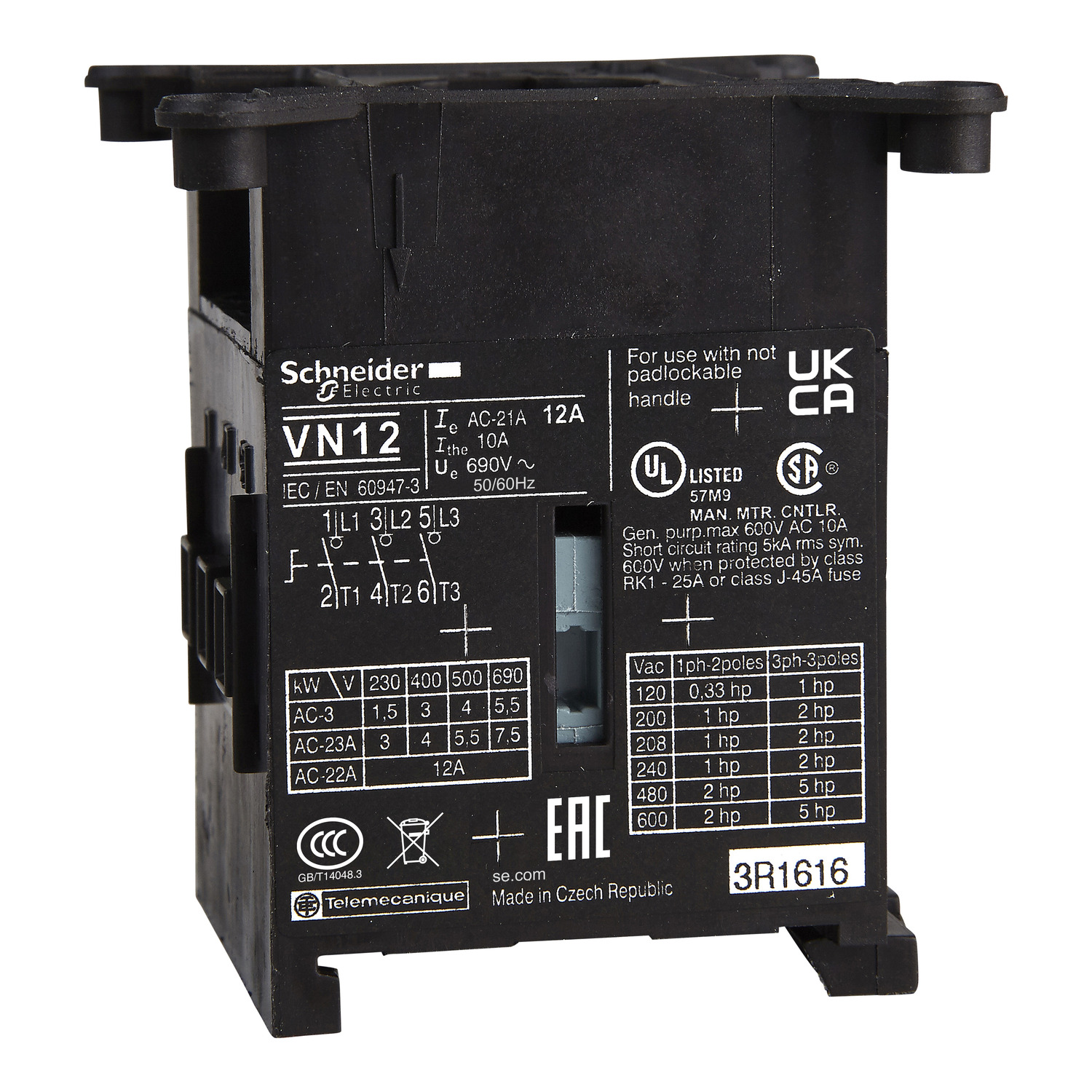

VN12 TeSys Standard Switch Body, For Use With 10/12 A Switch, 12 A, 690 V AC, 50/60 Hz
- MFR:
- Schneider Electric
- MFR #:
- VN12
- Item #:
- 195449
VN12 TeSys Standard Switch Body, For Use With 10/12 A Switch, 12 A, 690 V AC, 50/60 Hz
- MFR #:
- VN12
- Item #:
- 195449
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
VN12 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric for motor applications 4kW@400V AC-23. It requires an operating handle and extension shaft to form a complete unit for enclosure mounting. VN12 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 12A 690V, it is used in motor applications 4kW@400V AC-23. It requires an operating handle and extension shaft to form a main or emergency stop switch disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole switch body for rotary switch disconnector assemblies. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 on each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).
Manuals and Documentation
| Catalog Number | VN12 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Connection | Power circuit screw clamp terminals 4-4 mm² solid;power circuit screw clamp terminals 4-4 mm² flexible - with cable end |
| Contact Configuration | 3 NO |
| Mounting | Rail Plate |
| Number of Poles | 3 |
| Special Features | Standard |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=643574&lang=en-us |
| GTIN | 03389110759839 |
| Item Type | Switch body |
