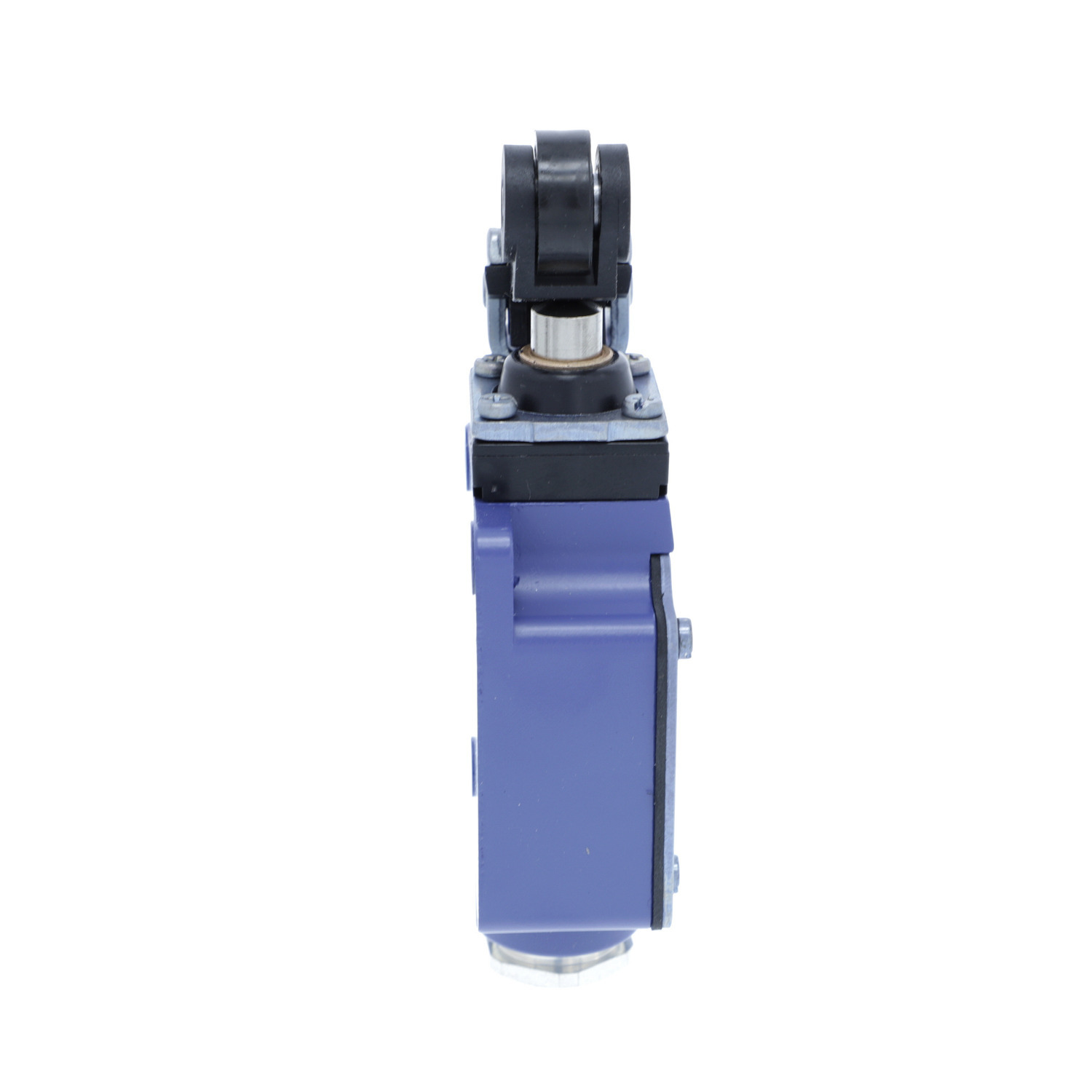

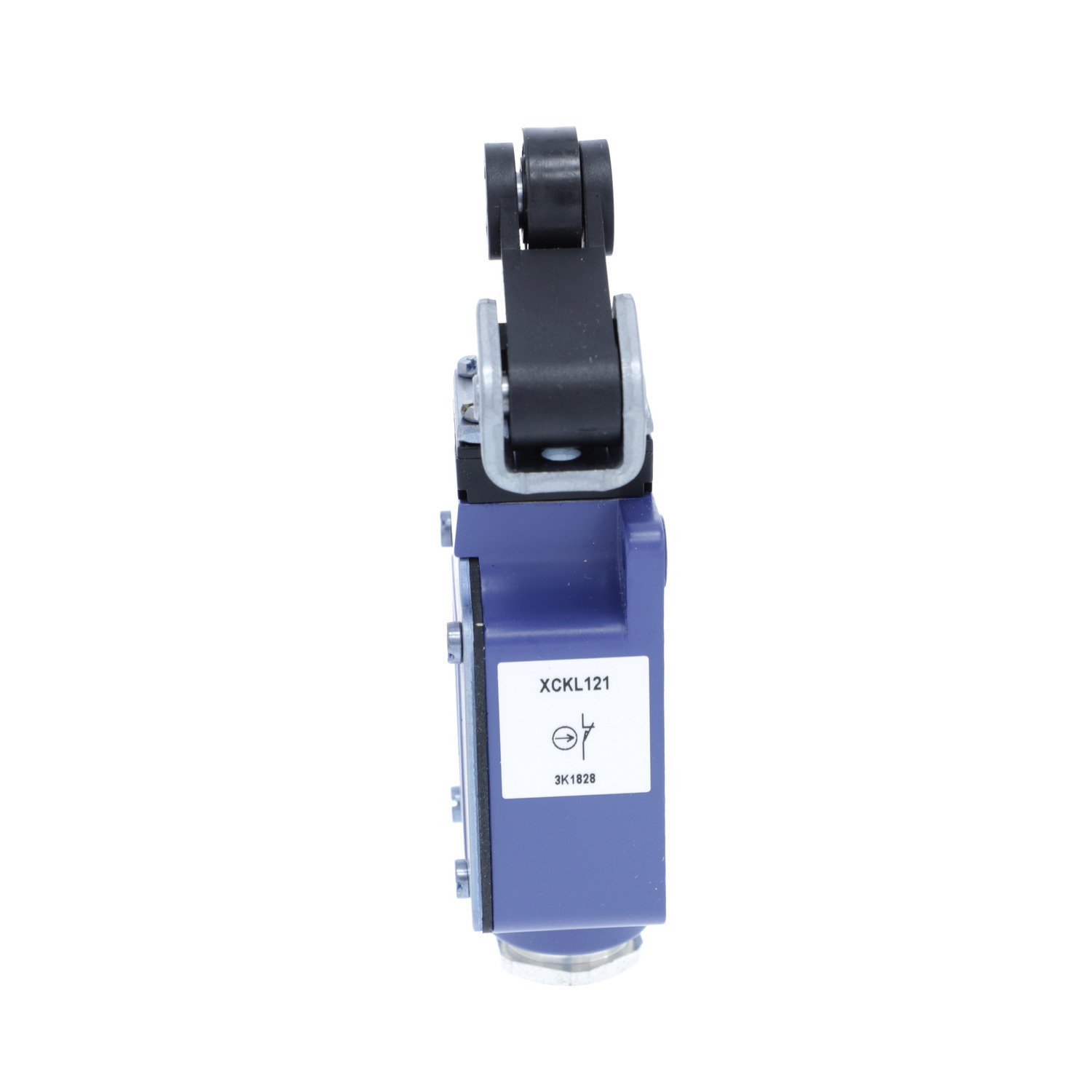

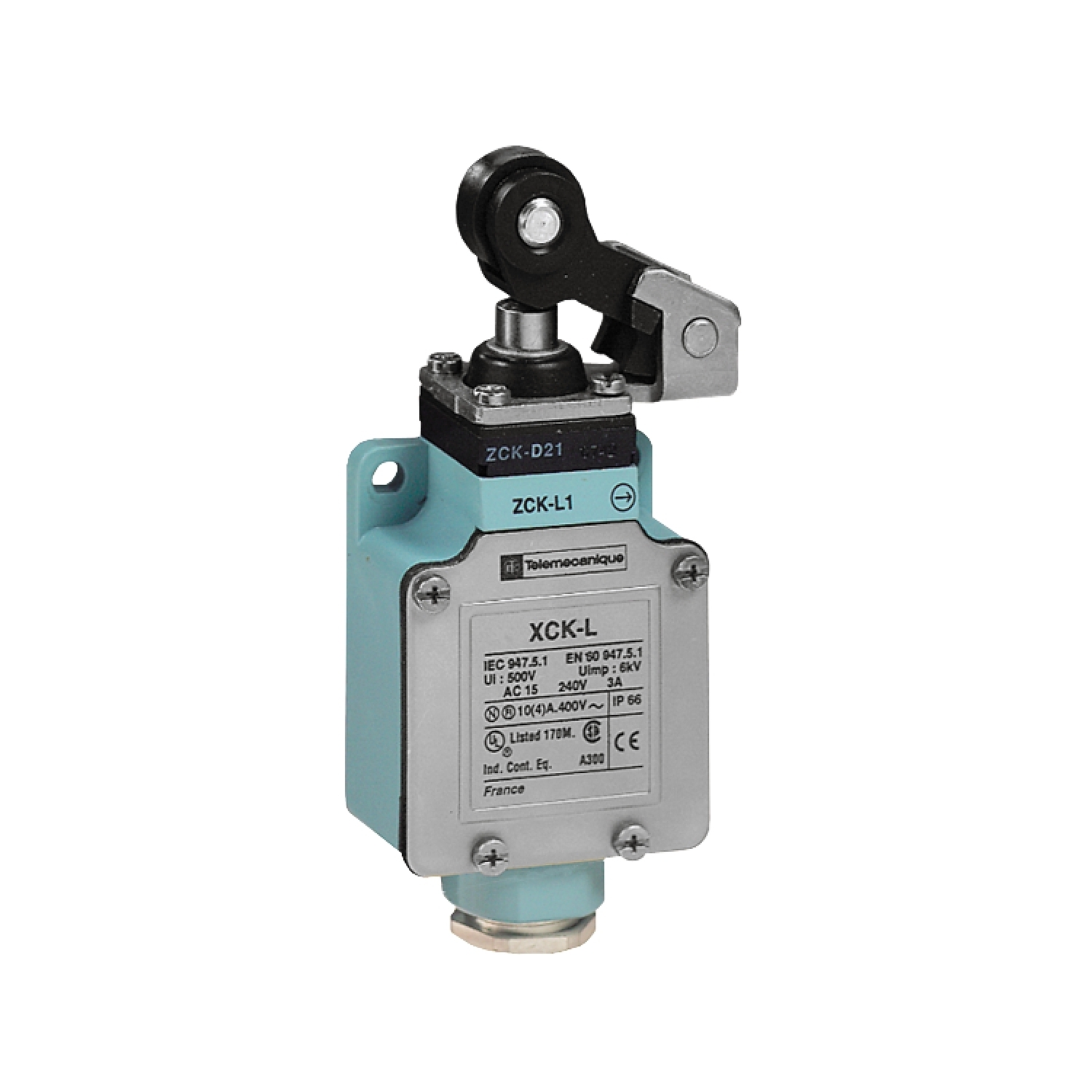

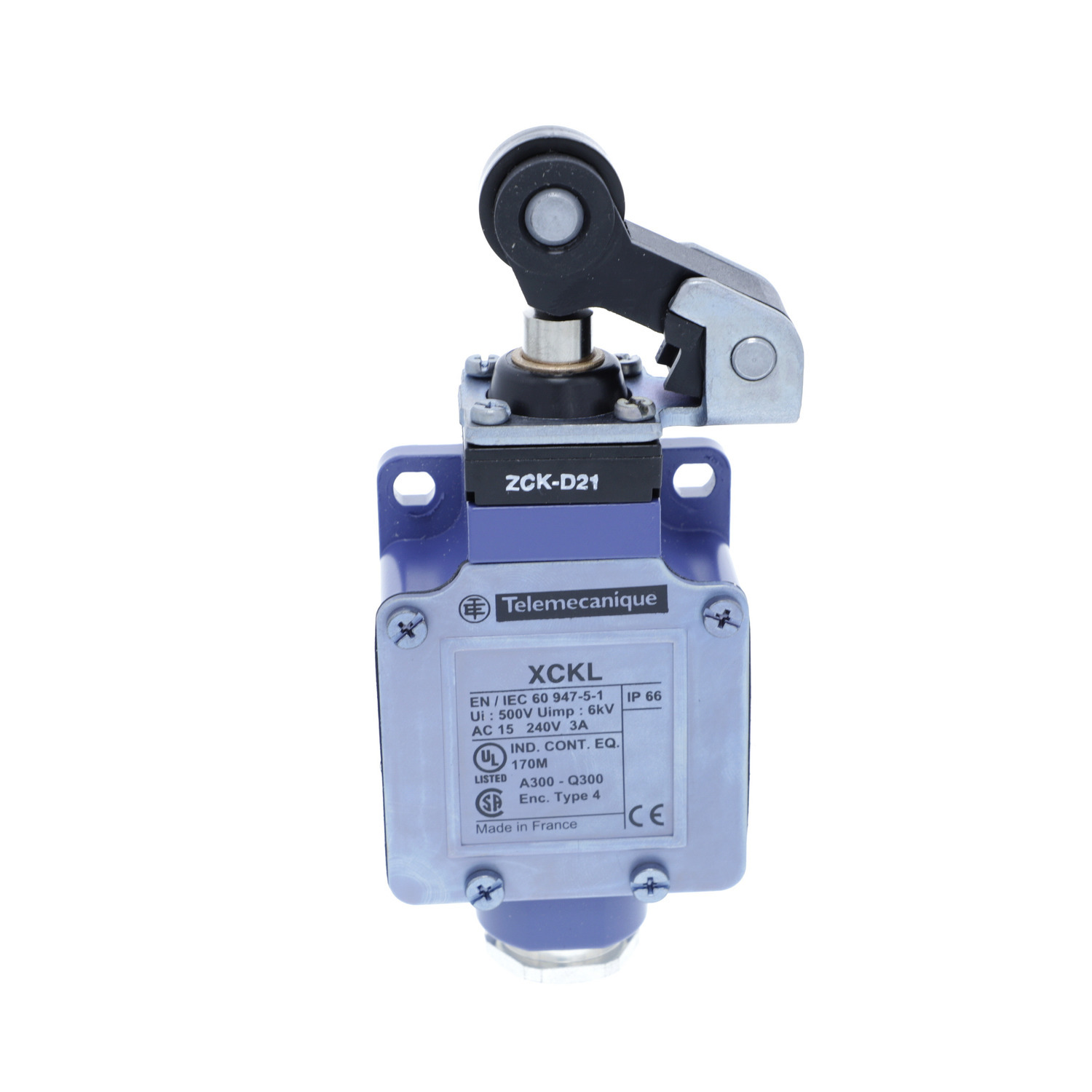

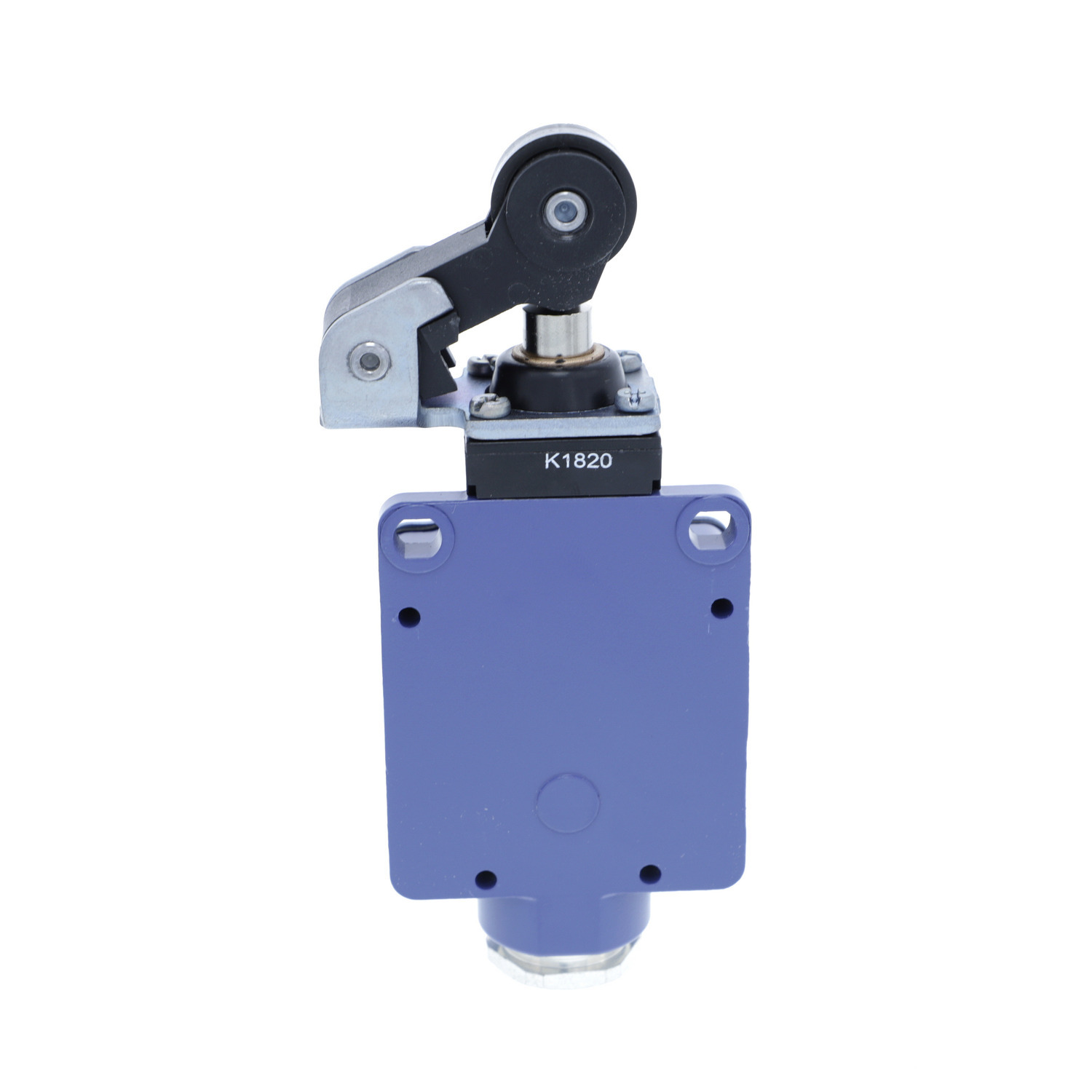

XCKL121 OsiSense Compact Fixed Medium Duty Standard Format Limit Switch, 240 V AC/250 V DC, 10 A, Spring Return/Roller Lever Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKL121
- UPC:
- 785901231011
- Item #:
- 194752
XCKL121 OsiSense Compact Fixed Medium Duty Standard Format Limit Switch, 240 V AC/250 V DC, 10 A, Spring Return/Roller Lever Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKL121
- UPC:
- 785901231011
- Item #:
- 194752
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$229.68
each
Snap action with positive action mechanism, to simplify tolerancing and dimensional design of your machines Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage High availability of spare parts, thanks to the best-in-class distribution network of the world leader in limit switches Variable composition design allows late modifications on the switch, for example change of connection type or head
Manuals and Documentation
| Catalog Number | XCKL121 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Lateral approach, 1 direction;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller lever plunger thermoplastic |
| Amperage Rating | 10 |
| Application | CLASSIC |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | NEMA 1/2/4/6/6P/12/13 IP66 |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN 11 MS EN/IEC 60068-2-27,CSA-UL,IK05 EN 50102,IP66 EN/IEC 60529,UL 508-IEC 60204-1-IEC 60947-5-1-EN 60947-5-1-CSA C22.2 NO 14-EN 60204-1,CLASS I IEC 61140-CLASS I NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856478&lang=en-us |
| UPC | 785901231011 |
| GTIN | 03389110646504 |
| Item Type | Limit switch |
| Size | 30 MM,52 MM,72-72 MM |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 240VAC/250VDC |
