Discontinued

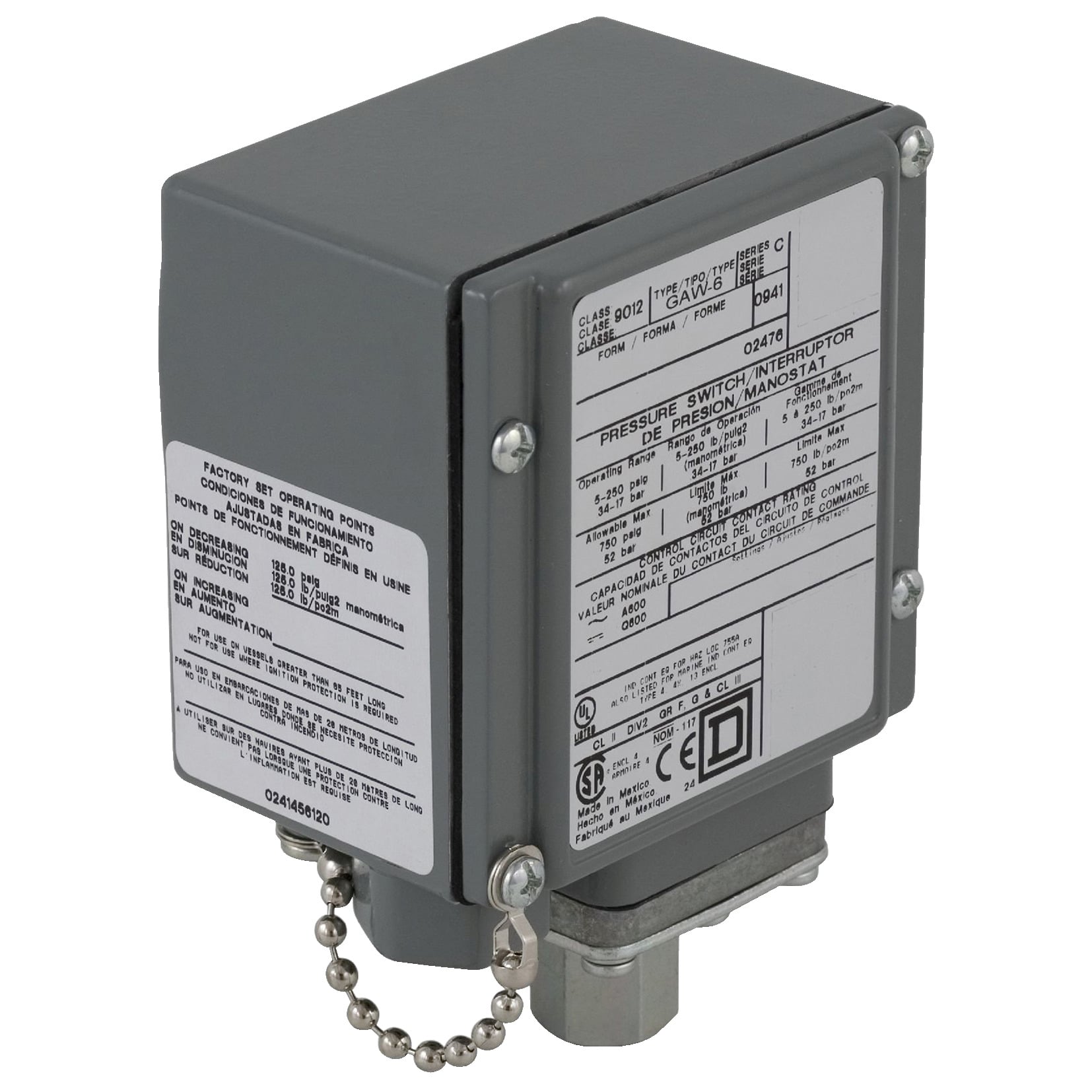

9012GAW2Z16 Adjustable Differential Electromechanical Pressure Switch, 40 psi Pressure, 1CO 1 Form Z SPDT-DB Contact, Screw Clamp Connection, 3 A at 240 V AC/6 A at 120 V AC/0.27 A at 250 V DC/0.22 A at 125 V DC Contact
- MFR:
- Schneider Electric
- MFR #:
- 9012GAW2Z16
- UPC:
- 785901121428
- Item #:
- 194094
Discontinued
9012GAW2Z16 Adjustable Differential Electromechanical Pressure Switch, 40 psi Pressure, 1CO 1 Form Z SPDT-DB Contact, Screw Clamp Connection, 3 A at 240 V AC/6 A at 120 V AC/0.27 A at 250 V DC/0.22 A at 125 V DC Contact
- MFR #:
- 9012GAW2Z16
- UPC:
- 785901121428
- Item #:
- 194094
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
pressure switch 9012G - adjustable scale - 2 thresholds - 1.0 to 40 psig
Manuals and Documentation
| Catalog Number | 9012GAW2Z16 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | REGULATION BETWEEN 2 THRESHOLDS |
| Contact Configuration | NC-NO, SPDT-DB, FORM Z, SNAP ACTION, SILVER NICKEL CONTACTS |
| Enclosure | NEMA 4/4X/13 UL 50,DIE CAST ALUMINIUM ALLOY 380 |
| Operating Cycles | 120 CYC/MN |
| Process Connection | 0.5 INCH 14 NPT-0.25 INCH 18 NPTF UL 508 |
| Special Features | SCREW-CLAMP TERMINALS, AWG 22...AWG 12 |
| Standard | CE-CSA LR25490 CLASS 3211 03-UL LISTED FILE E12158 CCN NKPZ AND CCN NTHT,UL 508-CE-CSA C22.2 NO 14 |
| UPC | 785901121428 |
| GTIN | 00785901121428 |
| Item Type | 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.27 A 250 V DC R300 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION,ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH |
| Operating Temperature | -10-185 A Degrees F |
| System Pressure | 100 PSI,40 PSI |
