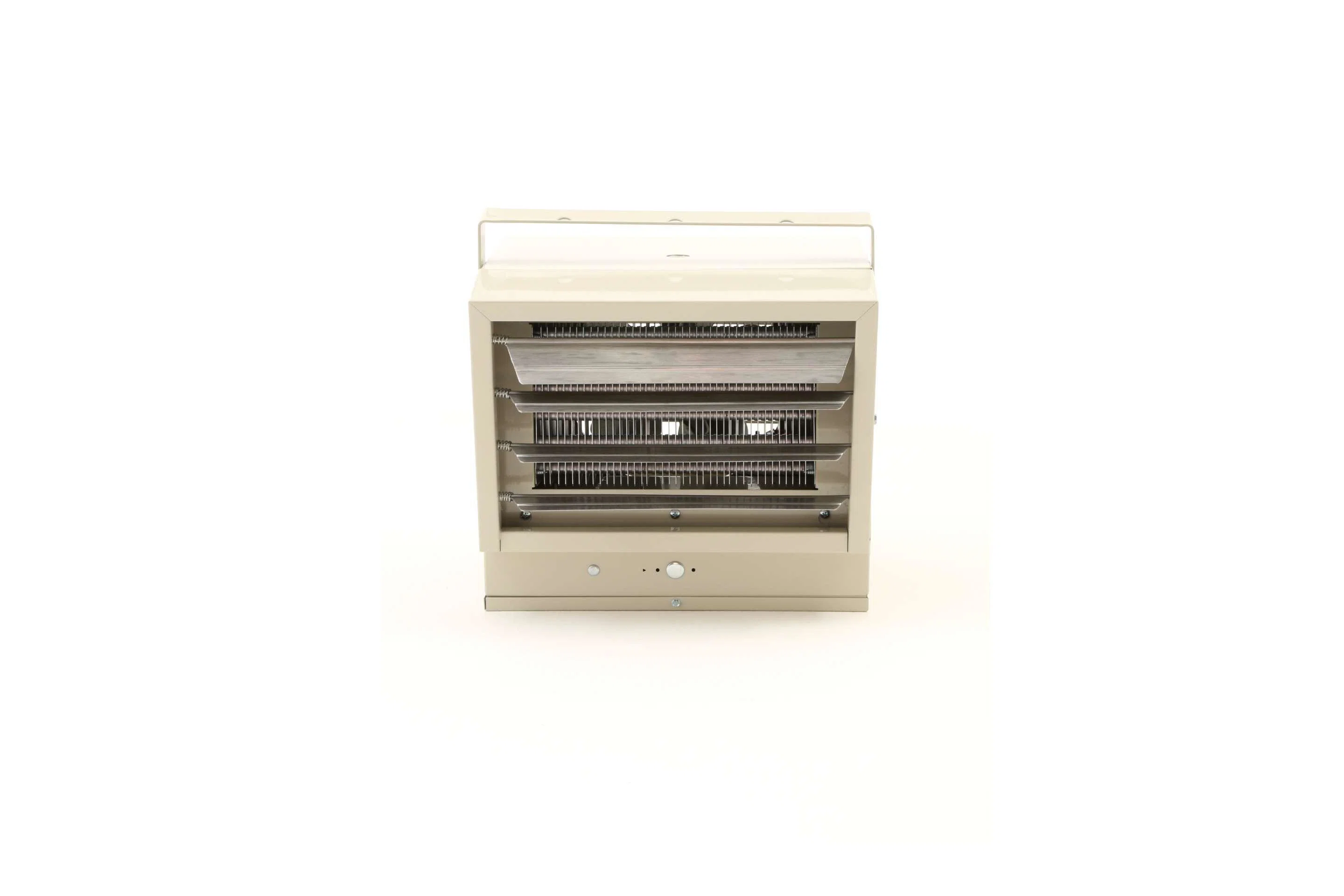

HUH2548L Berko 3-Phase Heavy Duty Unit Heater, 25 kW, 480 V
- MFR:
- Marley Engineered Products
- MFR #:
- HUH2548L
- UPC:
- 685360038063
- Item #:
- 193577
HUH2548L Berko 3-Phase Heavy Duty Unit Heater, 25 kW, 480 V
- MFR #:
- HUH2548L
- UPC:
- 685360038063
- Item #:
- 193577
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$6,008.23
each
This heavy duty heater provides a long term comfort solution wherever you need to warm up - garages, workshops, basements, even outdoor spaces. Aim heat anywhere with adjustable louvers and flexible mounting options for both horizontal and vertical applications.
Manuals and Documentation
Features
- All motors and contactor coils are 240 V and operate on the secondary of a factory installed step-down power transformer on 480 V and 600 V heaters so a separate fan and motor control power source is not needed
- Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down
- Cabinet is finished with a polyester powder coating for excellent corrosion resistance
- Element finished with aluminized paint for corrosion resistance
- Fins and elements are arranged in a uniform grid pattern and fit closely into air discharge area to assure that all incoming air passes through heating element
- High limit cut off automatically shuts off current in the event of overheating and reactivates unit when temperature returns to normal
- Steel fins are copper-brazed to low-watt density, steel-sheathed tubular heating elements
- 5 and 7.5 kW models also come equipped with ceiling mounting bracket for horizontal or vertical flow mounting or any position in between
- Uniform discharge of all heated air lowers internal operating temperatures and prolongs element life
| Manufacturer Part Number | HUH2548L |
| Brand | Berko® |
| Manufacturer | Marley Engineered Products |
| UPC | 685360038063 |
| Country Of Origin | US |
| Amperage Rating | 31.1 A |
| Color | Beige |
| Dimensions | 26 in W x 23-1/8 in D x 24 in H |
| Finish | Polyester Powder Coated |
| Material | 18 ga Cold Rolled Steel |
| Mounting Type | Ceiling |
| Series | HUH |
| Temperature Rating | 61 deg F |
| Type | 3-Phase Heavy Duty |
| Voltage Rating | 480 V |
| Alternative Part Number | UH2548 | 8658504 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 10 years Element and 1 year Workmanship |
| Standards Approvals | cUL Listed | cULus File No. E21609 | UL Listed |
| Application | Industrial, Large or Exposed Areas, Primary, Public Buildings, Service Stations, Stores, Supplementary, Warehouses, Workshops or Auxiliary Heat Source in Factories |
| Flow Rate | 1300 cfm |
| Mounting Height | 14 ft |
| Power Rating | 25 |
| Speed | 1550 rpm |
