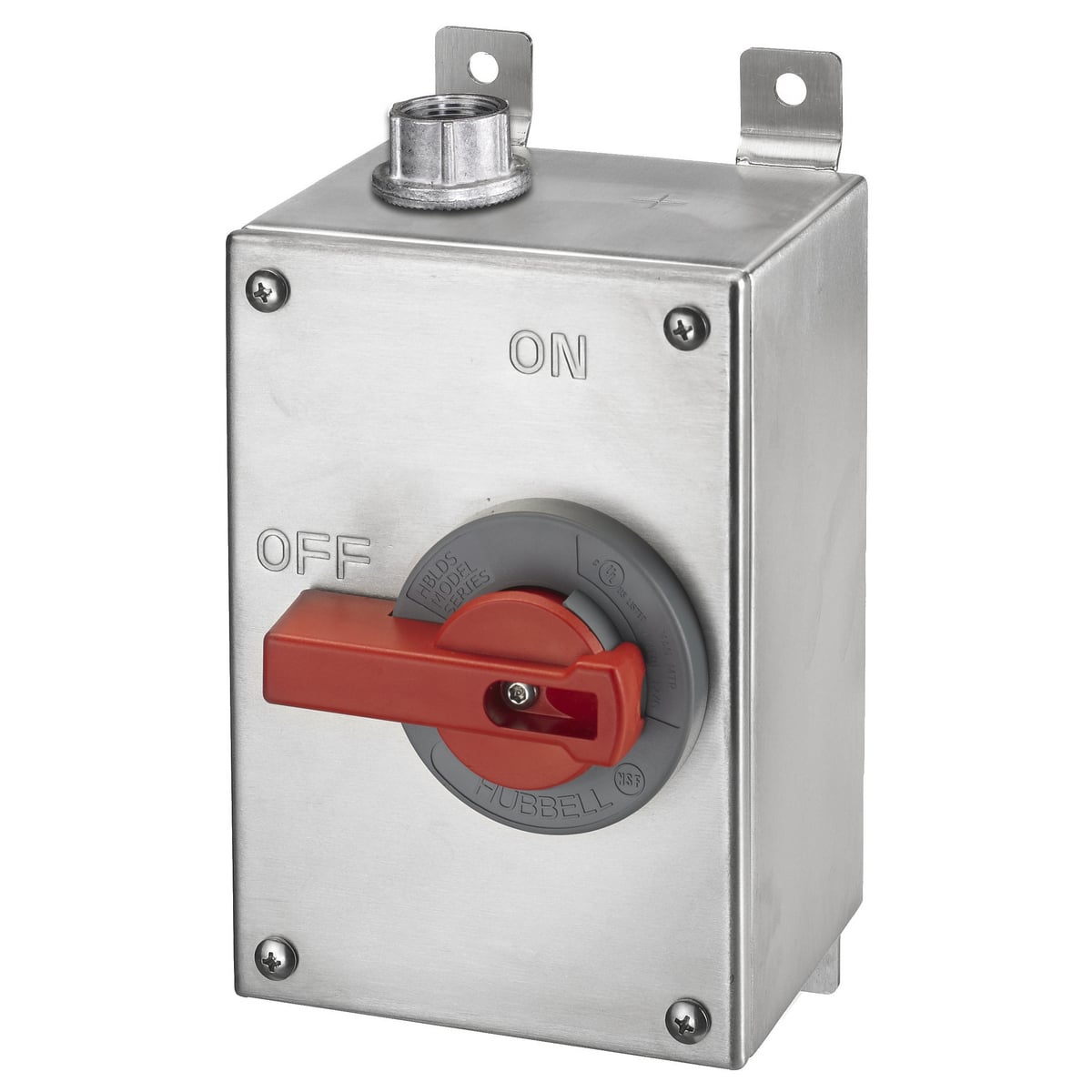

HBLDS6SSVFD Industrial Grade Non-Fusible Square Top Standard Disconnect Switch With AC2 Auxiliary Contacts, 120 V AC, 60 A, 7.5 hp, 2 Poles
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBLDS6SSVFD
- UPC:
- 783585372730
- Item #:
- 193509
HBLDS6SSVFD Industrial Grade Non-Fusible Square Top Standard Disconnect Switch With AC2 Auxiliary Contacts, 120 V AC, 60 A, 7.5 hp, 2 Poles
- MFR #:
- HBLDS6SSVFD
- UPC:
- 783585372730
- Item #:
- 193509
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,098.85
each
NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect and meet these code requirements.
Manuals and Documentation
| Catalog Number | HBLDS6SSVFD |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Poland |
| Made in USA | No |
| Action | Snap |
| Amperage Rating | 60 |
| Application | Labelless |
| Connection | Terminal Screws |
| Contact Rating | 10A 600V AC |
| Enclosure | Type 4X, IP69k |
| Frequency Rating | 60Hz |
| Material | Composite |
| Mounting | Screw |
| Number of Poles | 2 |
| Operating Cycles | 10,000 Minimum |
| Special Features | With AC2 |
| Standard | UL Listed |
| UPC | 783585372730 |
| GTIN | 00783585372730 |
| Item Type | Disconnect Switches |
| Size | 11.63 in x 7.3 in x 5.39 in |
| Environmental Conditions | Indoor/Ourdoor |
| Operating Temperature | Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact |
| Voltage Rating | 120 AC |
| Wattage | 36000 W |
