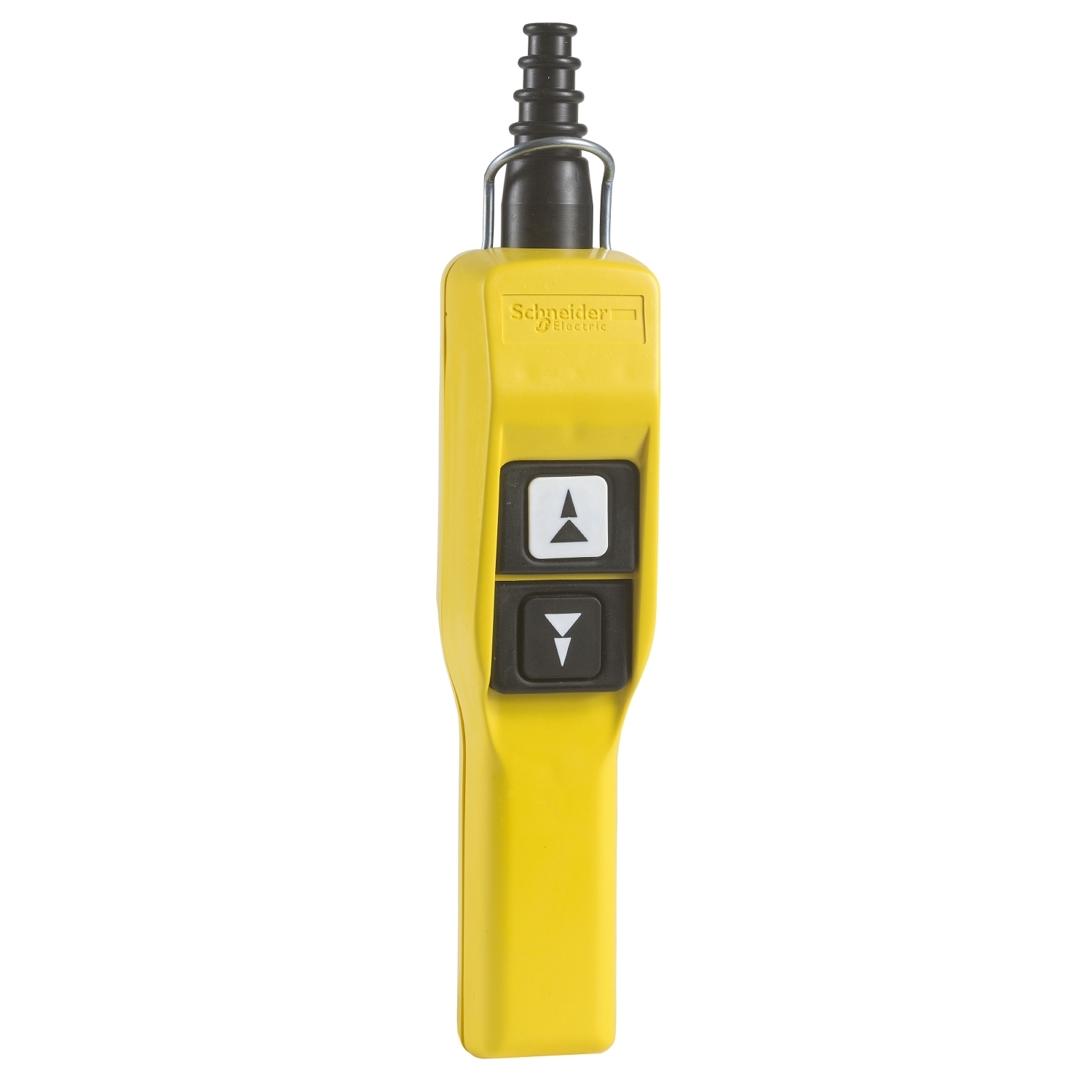

XACA217 Harmony Medium Duty 2-Booted Pendant Station, 600 V, 10 A, 2 Operators, NEMA 4/4X NEMA Rating
- MFR:
- Schneider Electric
- MFR #:
- XACA217
- Item #:
- 193469
XACA217 Harmony Medium Duty 2-Booted Pendant Station, 600 V, 10 A, 2 Operators, NEMA 4/4X NEMA Rating
- MFR #:
- XACA217
- Item #:
- 193469
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$198.45
each

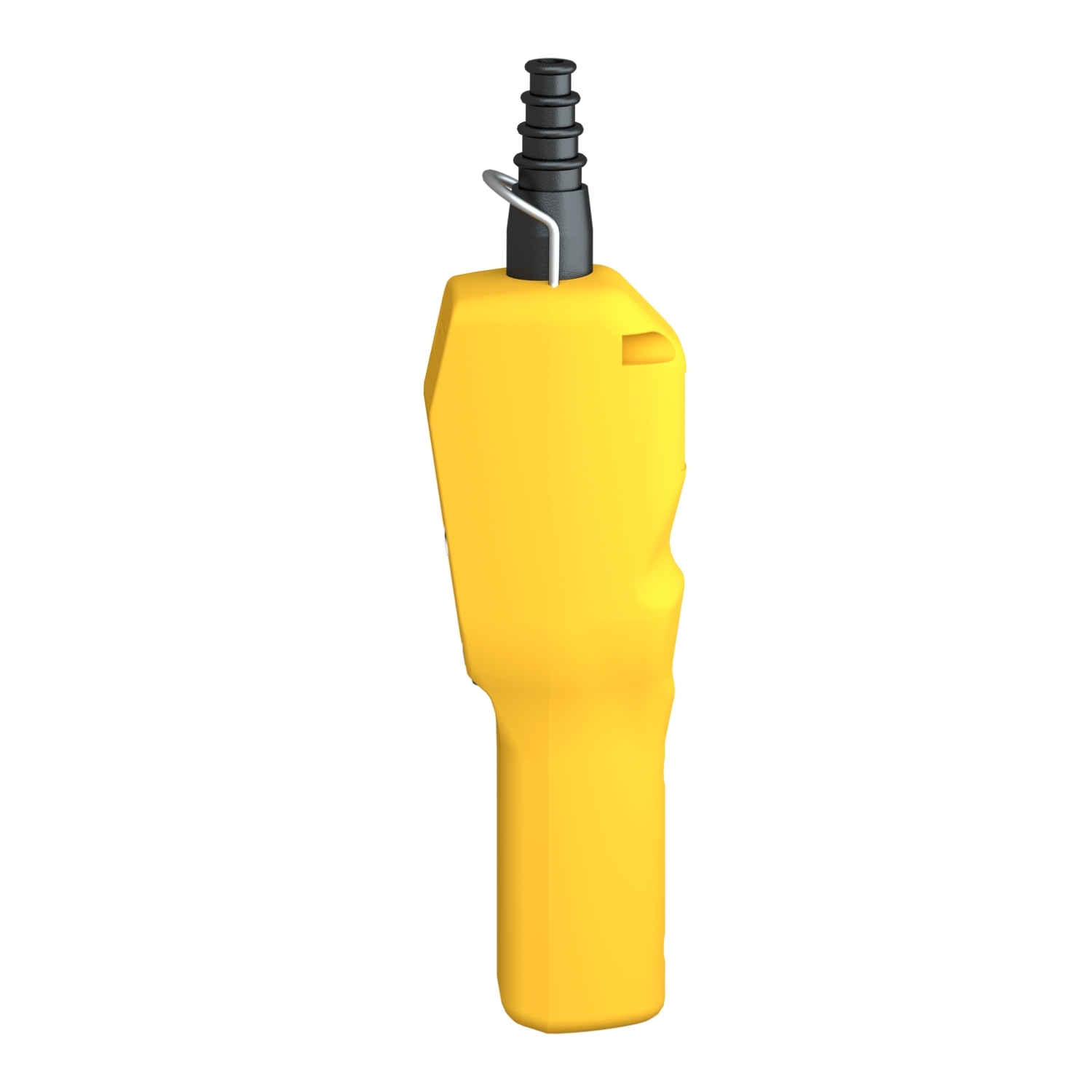

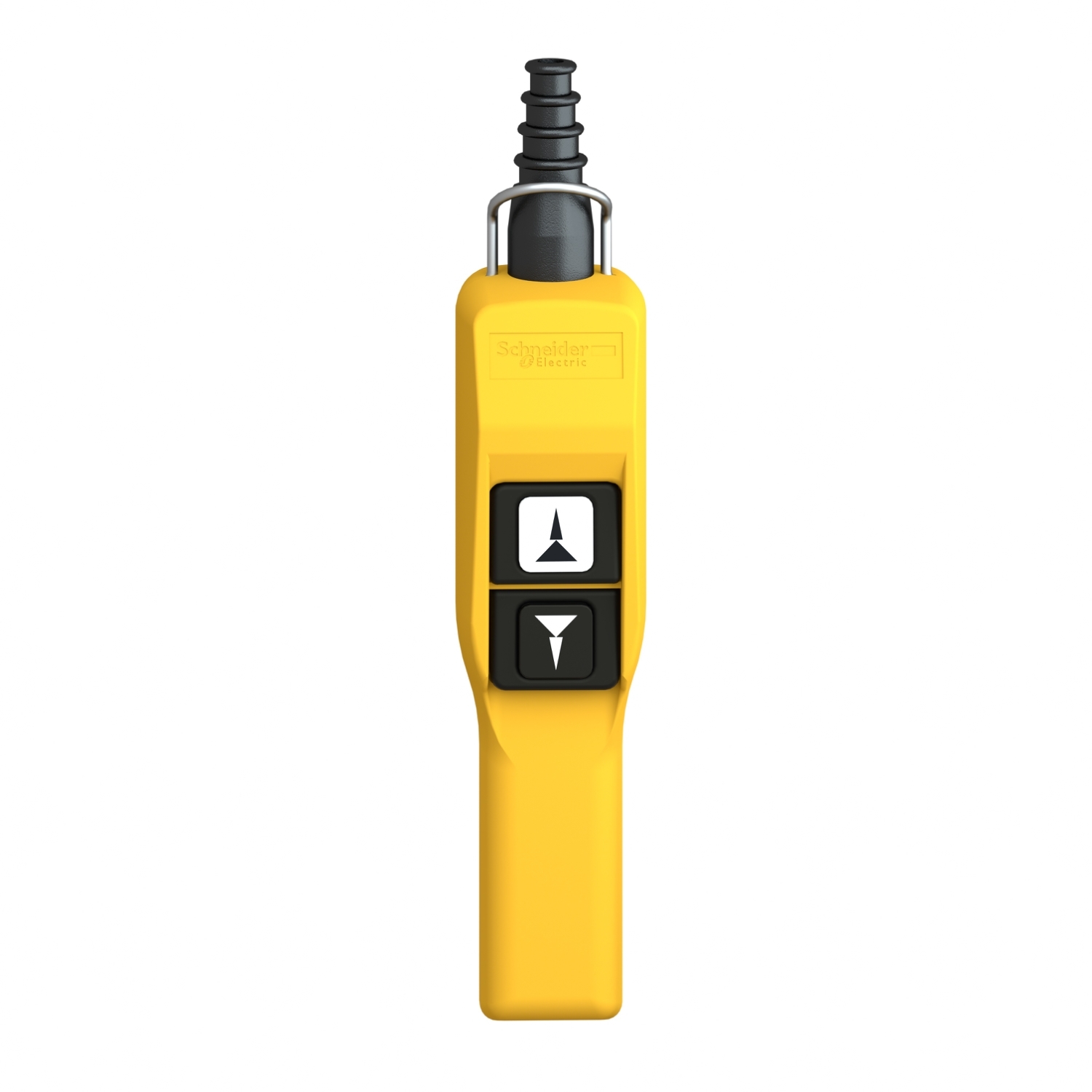

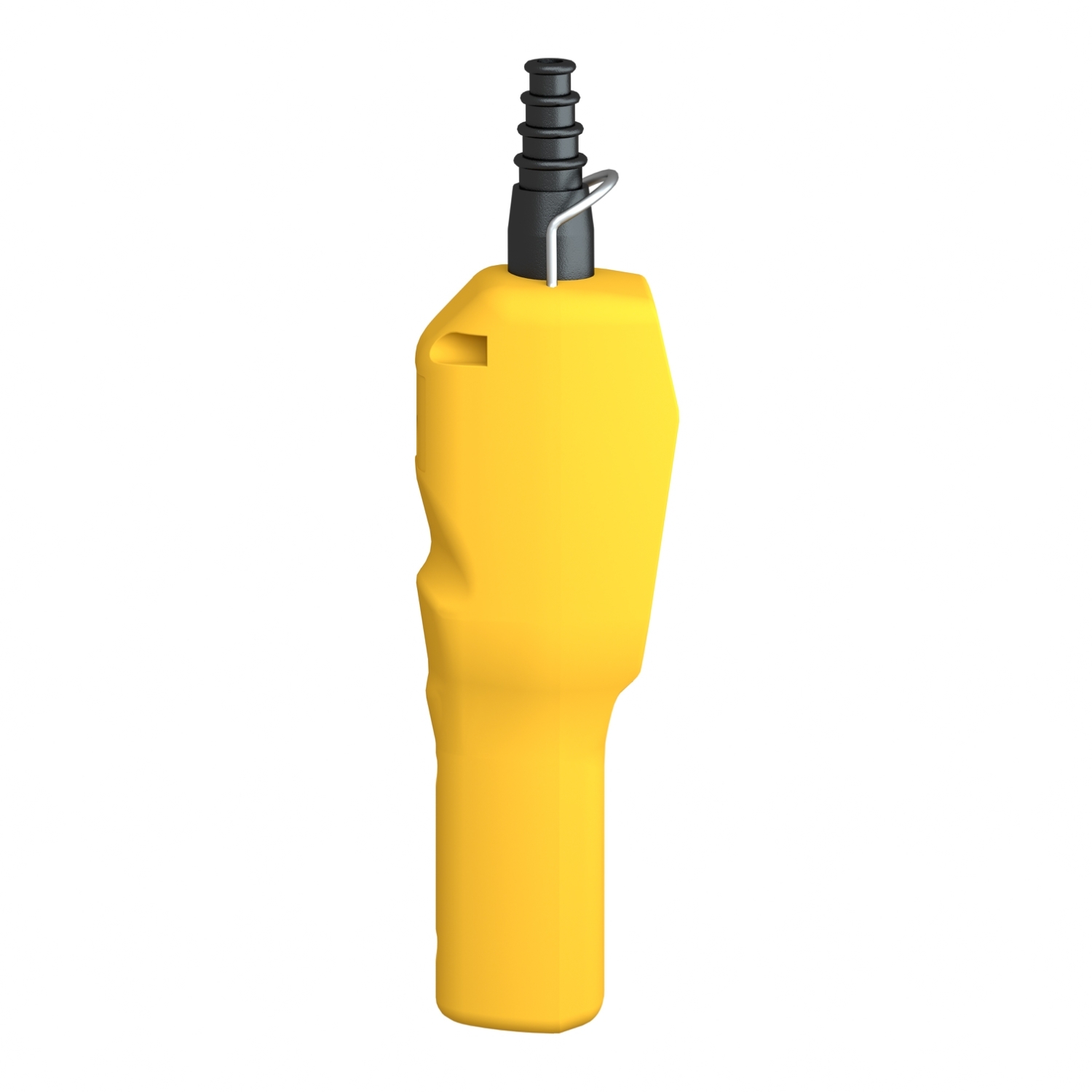

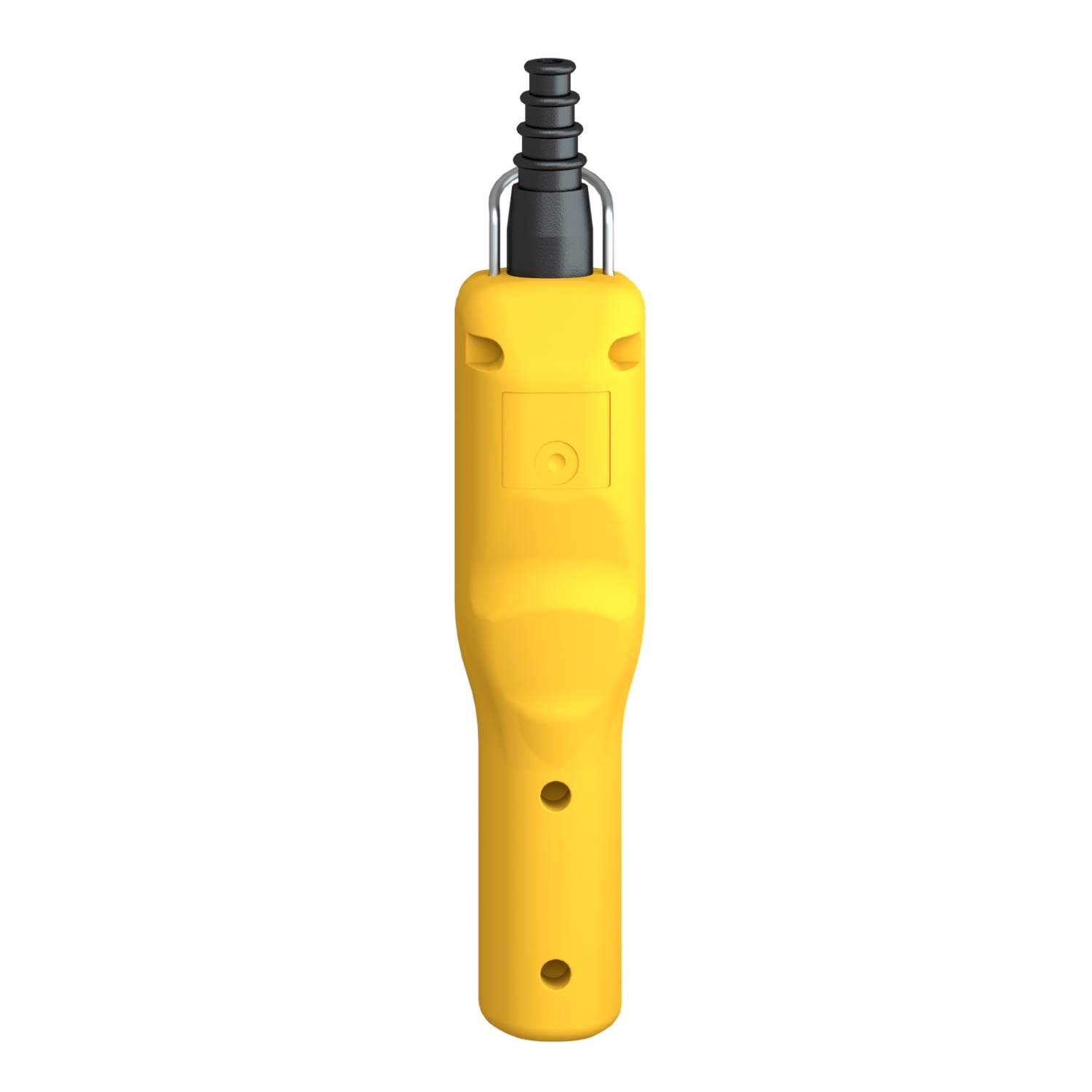

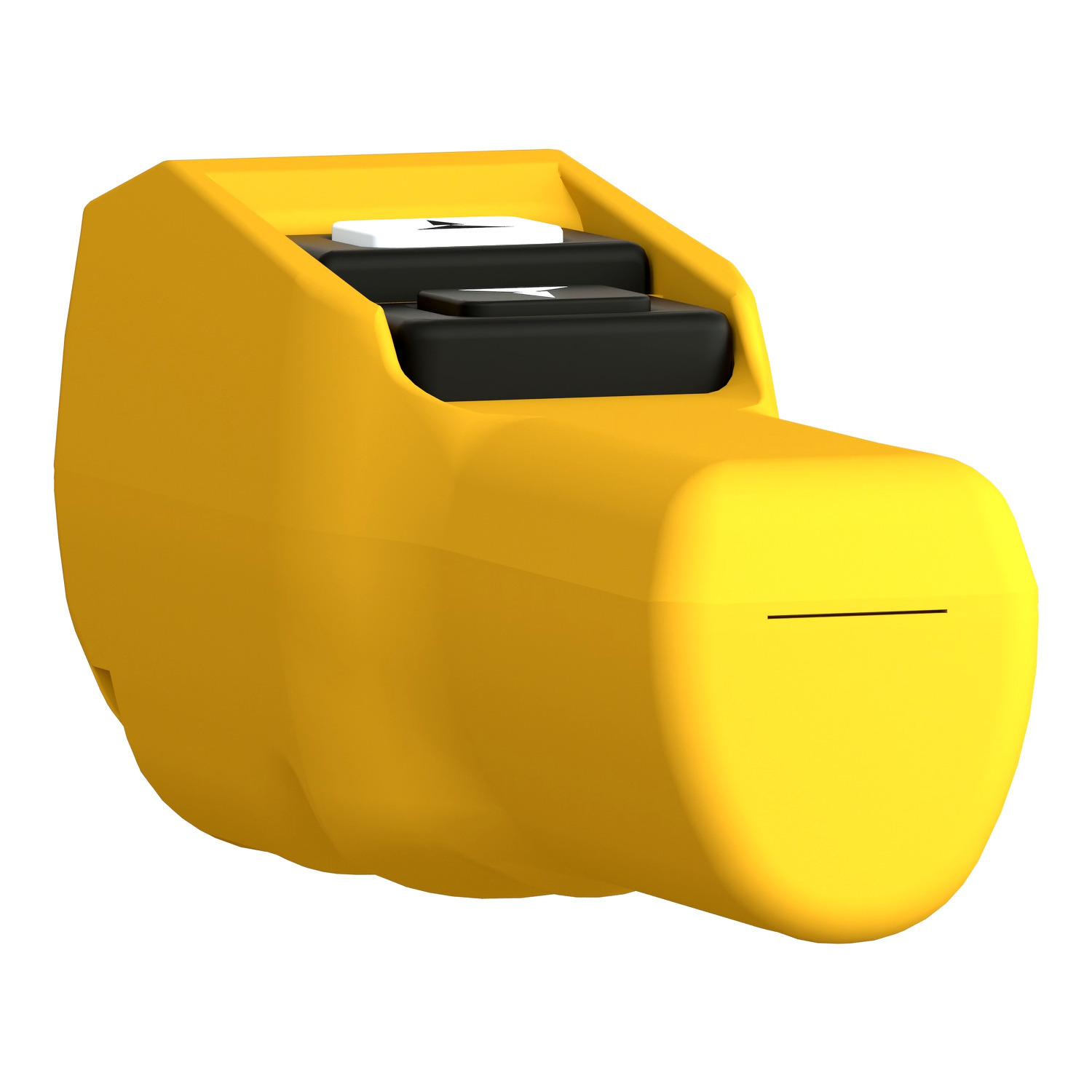

This Harmony XACA217 is a pendant station pistol grip with 2 booted push buttons for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Manuals and Documentation
| Catalog Number | XACA217 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Slow-break;staggered |
| Actuator | Intuitive;2 booted push-buttons |
| Application | ZB2BE101 + ZB2BE201 for each direction |

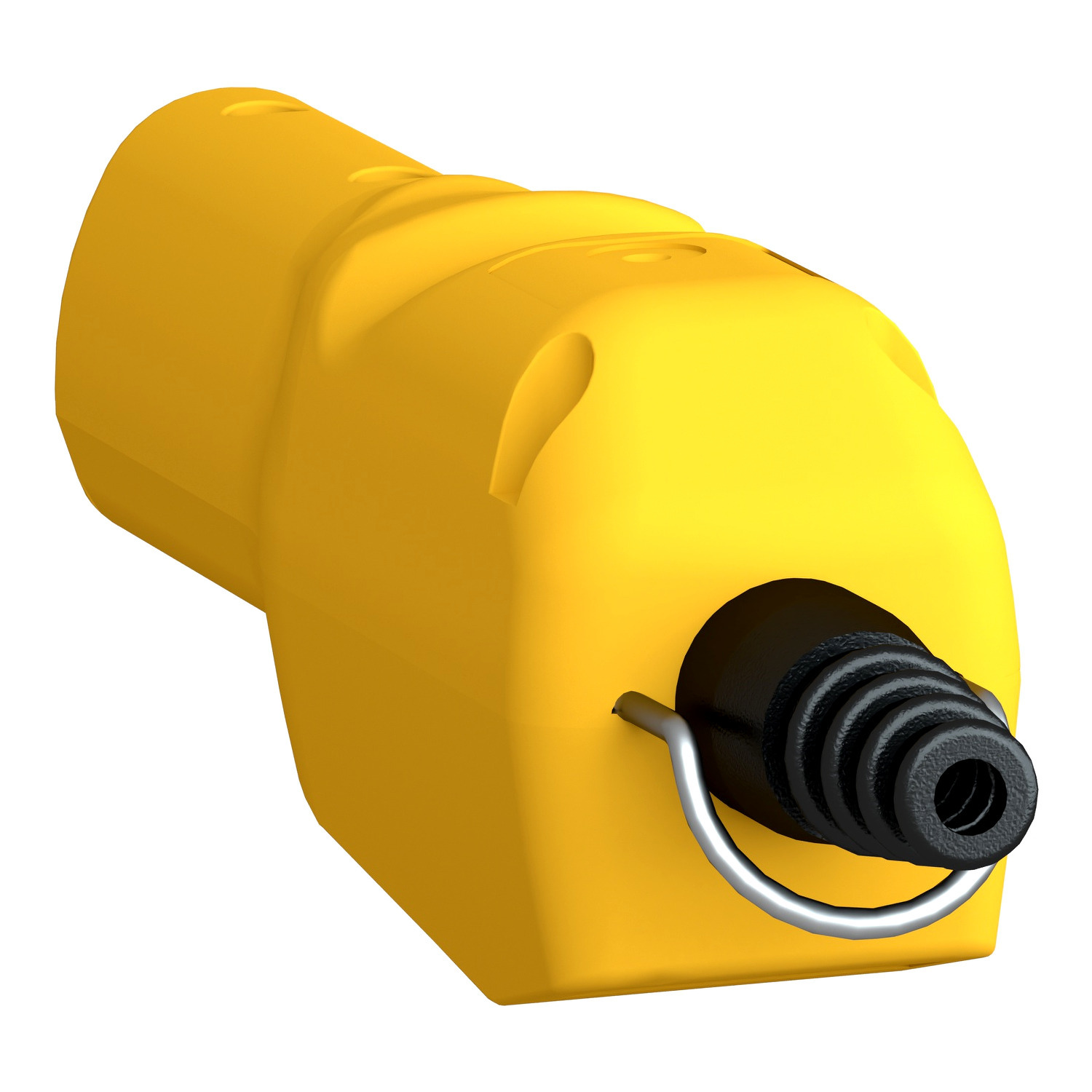

| Cable Entry | Rubber sleeve with stepped entry 7-15 mm |
| Color | Yellow |
| Connection | Screw clamp terminals, 1 x 2.5 mm² with or without cable end;screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Enclosure | Complete ready for use;Polypropylene |
| Insulation | Double insulated |
| Special Features | First push-button 2 NO (2 step) raise, slow-fast;second push-button 2 NO (2 step) lower, slow-fast |
| Standard | CSA;UL;IK08 conforming to IEC 62262;IEC 60204-32;UL 508;IEC 60947-5-1;CSA C22.2 No 14;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674298&lang=en-us |
| GTIN | 03389110644852 |
| Item Type | Pendant control station |
