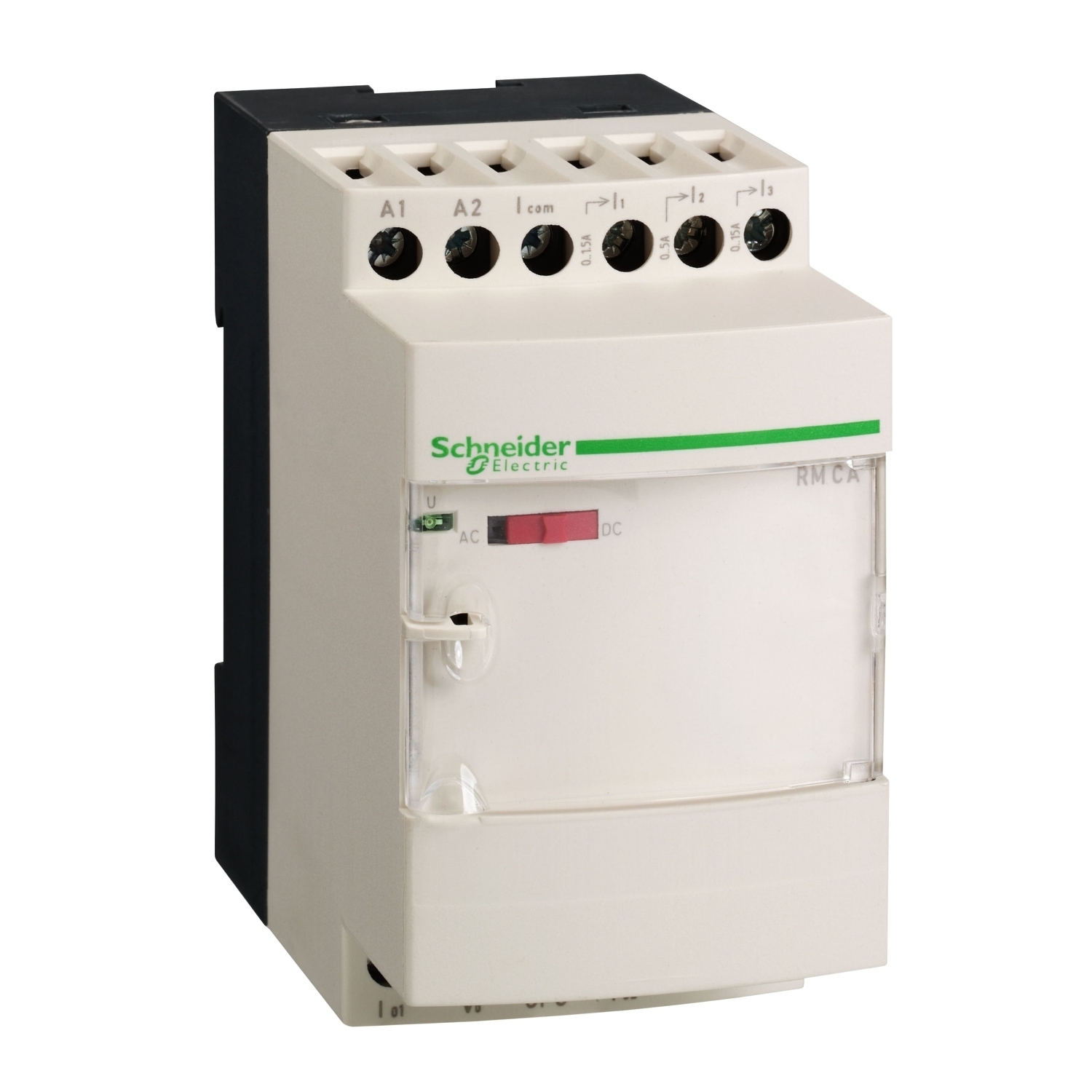

RMCA61BD Zelio Analog Converter
- MFR:
- Schneider Electric
- MFR #:
- RMCA61BD
- Item #:
- 193367
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This voltage/current converter is part of the Harmony Analog range. It allows conversion of electrical power signals, both AC and DC. Its supply voltage is 24V DC, isolated. It features for current inputs with a range of 0A to 1.5A, 0A to 5A, 0A to 15A (AC/DC). It has outputs with a switchable voltage/current range of 0V to 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.140Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0 0 0 0
Manuals and Documentation
| Catalog Number | RMCA61BD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Mounting | Din Rail |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=9263107&lang=en-us |
| GTIN | 03389110108880 |
