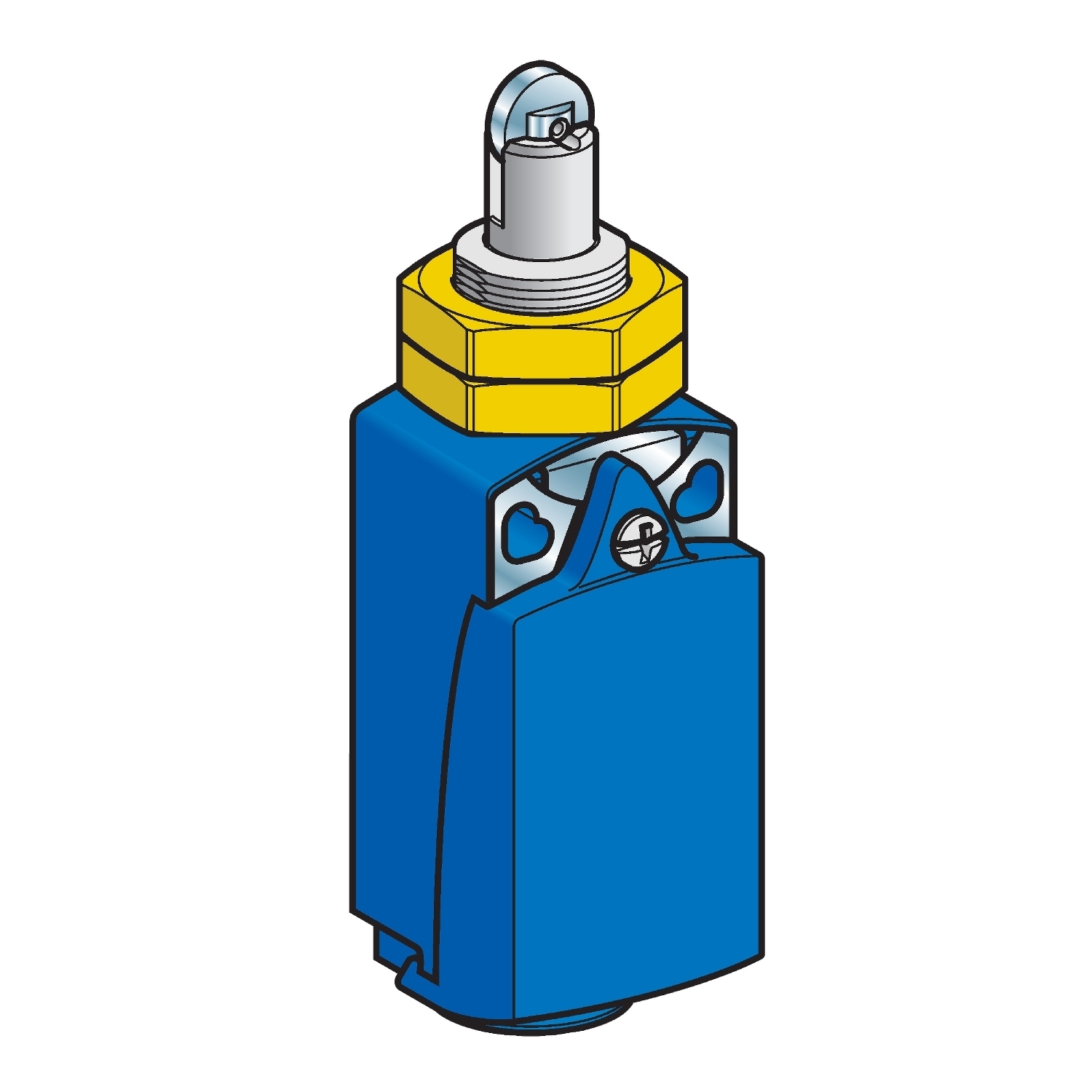

XCKD21H2P16 OsiSense Compact Fixed Heavy Duty Standard Format Limit Switch, 240 V AC, 3 A, Roller Plunger Spring Return Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKD21H2P16
- UPC:
- 785901932130
- Item #:
- 19259
XCKD21H2P16 OsiSense Compact Fixed Heavy Duty Standard Format Limit Switch, 240 V AC, 3 A, Roller Plunger Spring Return Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKD21H2P16
- UPC:
- 785901932130
- Item #:
- 19259
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$230.77
each
Limit switch, Limit switches XC Standard, XCKD, M18 steel roller plunger, 1NC+1 NO, snap, M16
Manuals and Documentation
| Catalog Number | XCKD21H2P16 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller plunger metal |
| Application | COMPACT VARIABLE |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Head |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 , DC IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 , DC IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 , DC IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-CCC-UL,IEC 60204-1-CSA C22.2 NO 14-EN 60947-5-1-UL 508-EN 60204-1-IEC 60947-5-1,IK06 EN 50102,IP66IEC 60529-IP67IEC 60529,CLASS I IEC 61140-CLASS I NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856004&lang=en-us |
| UPC | 785901932130 |
| GTIN | 03389110197105 |
| Item Type | Limit switch |
| Operating Temperature | -25-70 A Degrees C |
