Intermatic

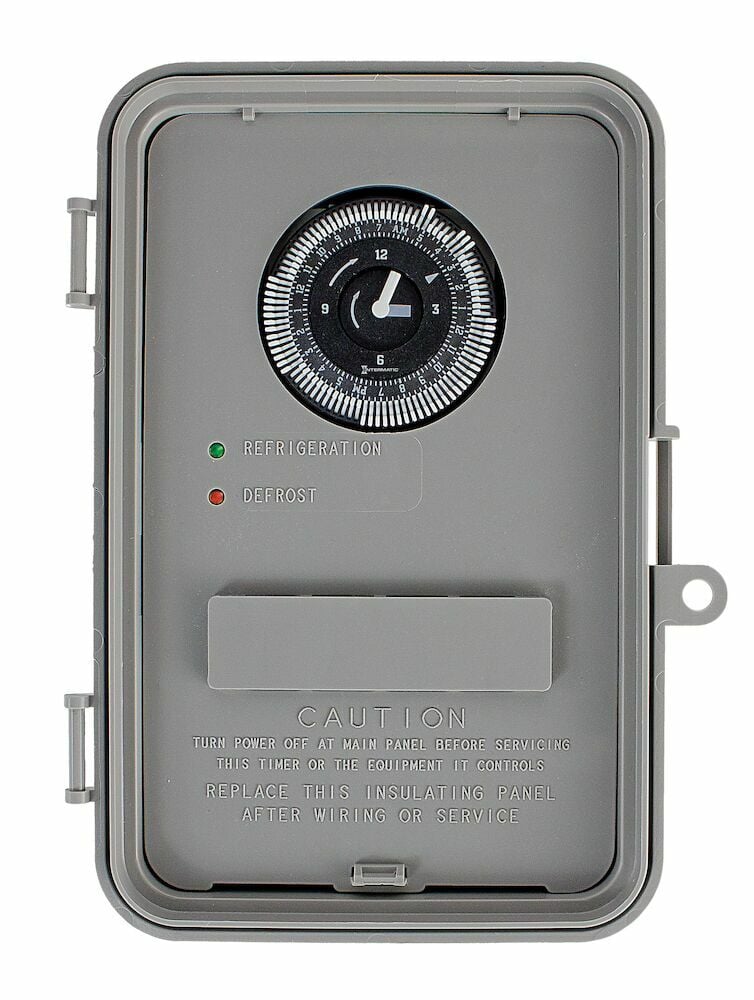

DTAV40 Grasslin Auto Voltage Defrost Timer, 15 min to 23 hr/45 min Defrost, 120 to 240 V AC, 1 hp, 2 hp, DPST/SPST Contact, 2 Poles

MFR:
Intermatic
MFR #:
DTAV40
UPC:
078275125162
Item #:
192223

Availability

Location Available Qty
Available Available to Order
$294.17 each

For electric heat, hot gas or compressor shutdown defrost. The DTAV40 Series Auto Voltage Defrost Timer is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and terminates the defrost cycle if the temperature or pressure switch fails to do so.

Manuals and Documentation
Catalog Number DTAV40
Manufacturer Intermatic
Brand Intermatic
Country of Origin Mexico
Made in USA No
Action 1 x SPST/1 x DPST
Amperage Rating 40
Application Defrost, HVACR
Connection Box Lug
Contact Rating 40 AMP @ 120 - 240 VAC (Resistive)
Enclosure UL Type 3R Raintight Plastic
Mounting Wall
Number of Poles 2
Operating Cycles 50000
Special Features Features: Time Initiated Temperature, Pressure or Time Terminated, Replaces Over 40 Competitive Models, Automatically Adjusts Voltages between 120 and 240 VAC, No Tools Required, Mounts in Existing Enclosures, Moisture Resistant Conformal Coated Board, Independently Programmed Defrost Cycles, LED Indicators for Defrost and Refrigeration Cycles, True Clock Face for Quick and Easy and Accurate Setting, 1 Year Warranty
Standard cULus Listed, HVACR
UPC 078275125162
GTIN 00078275125162
Item Type Auto Voltage Defrost
Size 8.88 HEIGHT X 6.61 WIDTH X 3 DEPTH IN, 22.56 HEIGHT X 16.79 WIDTH X 7.62 DEPTH CM
Environmental Conditions 0 - 95 RH Non-Condensing
Operating Temperature -40 to +104 DEG F, -40 to +40 DEG C
Timing Range 15 MIN - 23 HR 45 MIN
Voltage Rating 120 - 240
