SolaHD

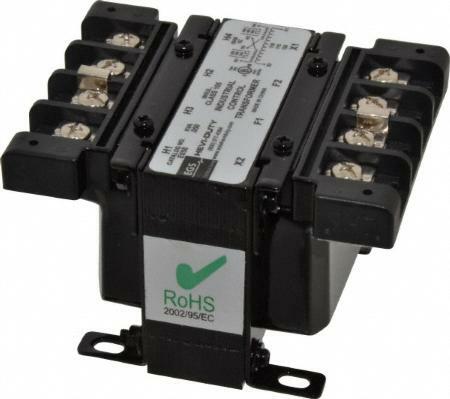

E050JN SBE Encapsulated Control Transformer, 208/240/480/600 V AC Primary, 24/120 VAC Secondary, 0.05 kVA Power Rating, 50/60 Hz, 1 Phase

MFR:
SolaHD
MFR #:
E050JN
UPC:
783472531653
Item #:
192004

Availability

Location Available Qty
Available 1 ea
$391.39 each
Manuals and Documentation
Catalog Number E050JN
Manufacturer SolaHD
Brand SolaHD
Country of Origin Viet Nam
Made in USA No
Application Industrial
Frequency Rating 60
Mounting Mounting Plate
Phase 1
Primary Voltage 208/240/480/600 Volt Primary
Secondary Voltage 120/24 Volt Secondary
Special Features 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEGC/131 DEGF rise, 105 DEGC insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32" x 1-1/2" cartridges (fuses not included).
Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant
UPC 783472531653
GTIN 00783472531653
Item Type SBE Encapsulated Series Transformers
Length 6.93
Width 6.38
Height 5.56
Wattage 750
