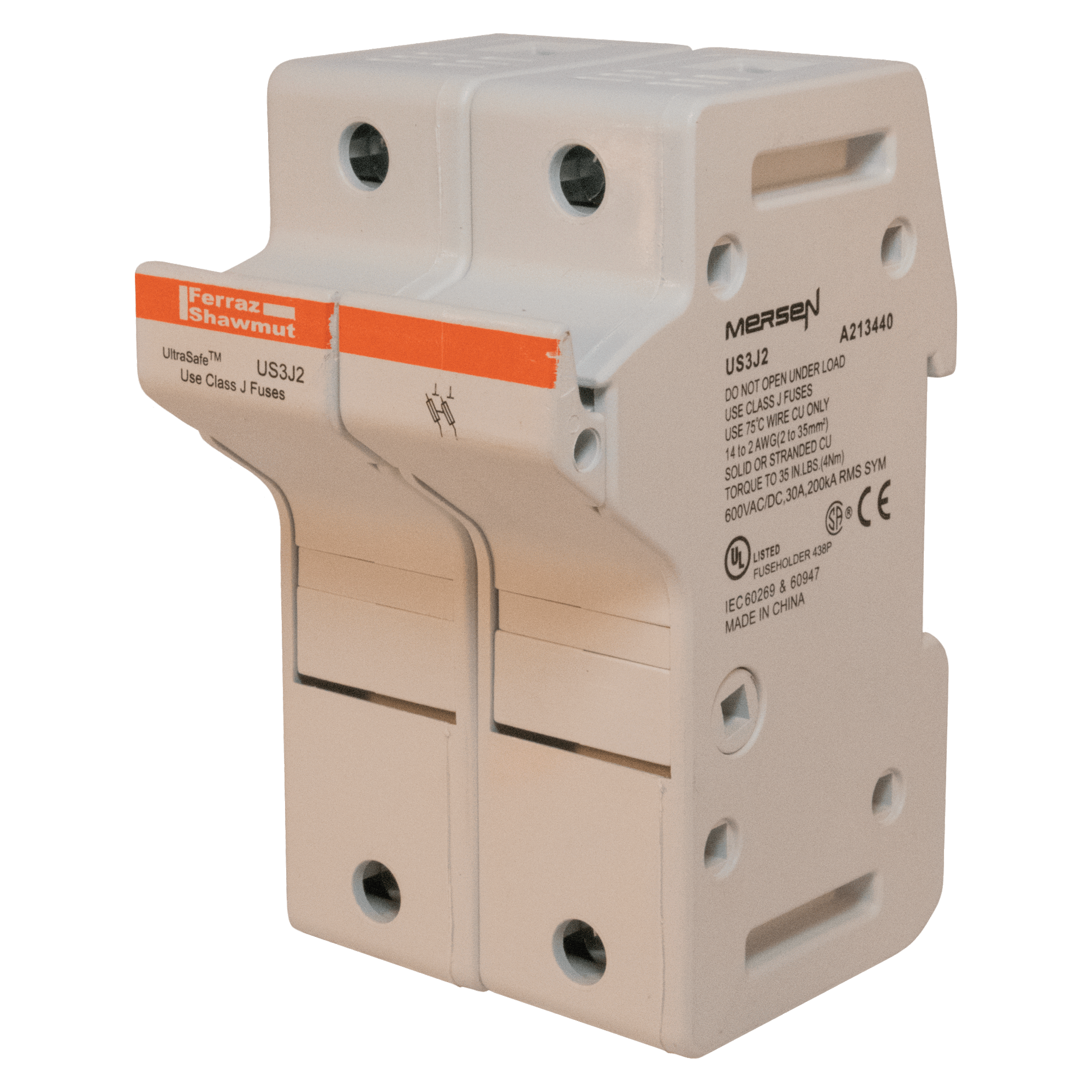

US3J2 UltraSafe Finger Safe Modular Fuse Holder, 600 V AC/DC, 30 A, Class: J, 14 to 2 AWG Wire, 2 Poles
- MFR:
- Mersen
- MFR #:
- US3J2
- UPC:
- 782001307721
- Item #:
- 191796
US3J2 UltraSafe Finger Safe Modular Fuse Holder, 600 V AC/DC, 30 A, Class: J, 14 to 2 AWG Wire, 2 Poles
- MFR #:
- US3J2
- UPC:
- 782001307721
- Item #:
- 191796
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$366.67
each
Fuse Holder UltraSafe 600VAC 600VDC Class J 30A 2-Pole Pressure Plate IP65
Manuals and Documentation
| Catalog Number | US3J2 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | 600 volt motors, transformers, lighting, heating, control circuits, general loads Non-load disconnect |
| Connection | Pressure Plate |
| Material | Polyamide |
| Mounting | Din Rail |
| Number of Poles | 2 |
| Special Features | Finger-safe IP20 protection Optional indicator lights DIN-rail mount Compact footprint Quick, easy fuse change |
| Standard | UL Listed, guide IZLT File E52283 CSA Certified C22.2, class 6225 01, File 32169 IEC certified 60269-1, 60947-3 |
| UPC | 782001307721 |
| GTIN | 00782001307721 |
| Item Type | UL/CSA Fuse Holders |
| Size | 4.49 x 2.56 x 3.15 |
| Voltage Rating | 600 |
