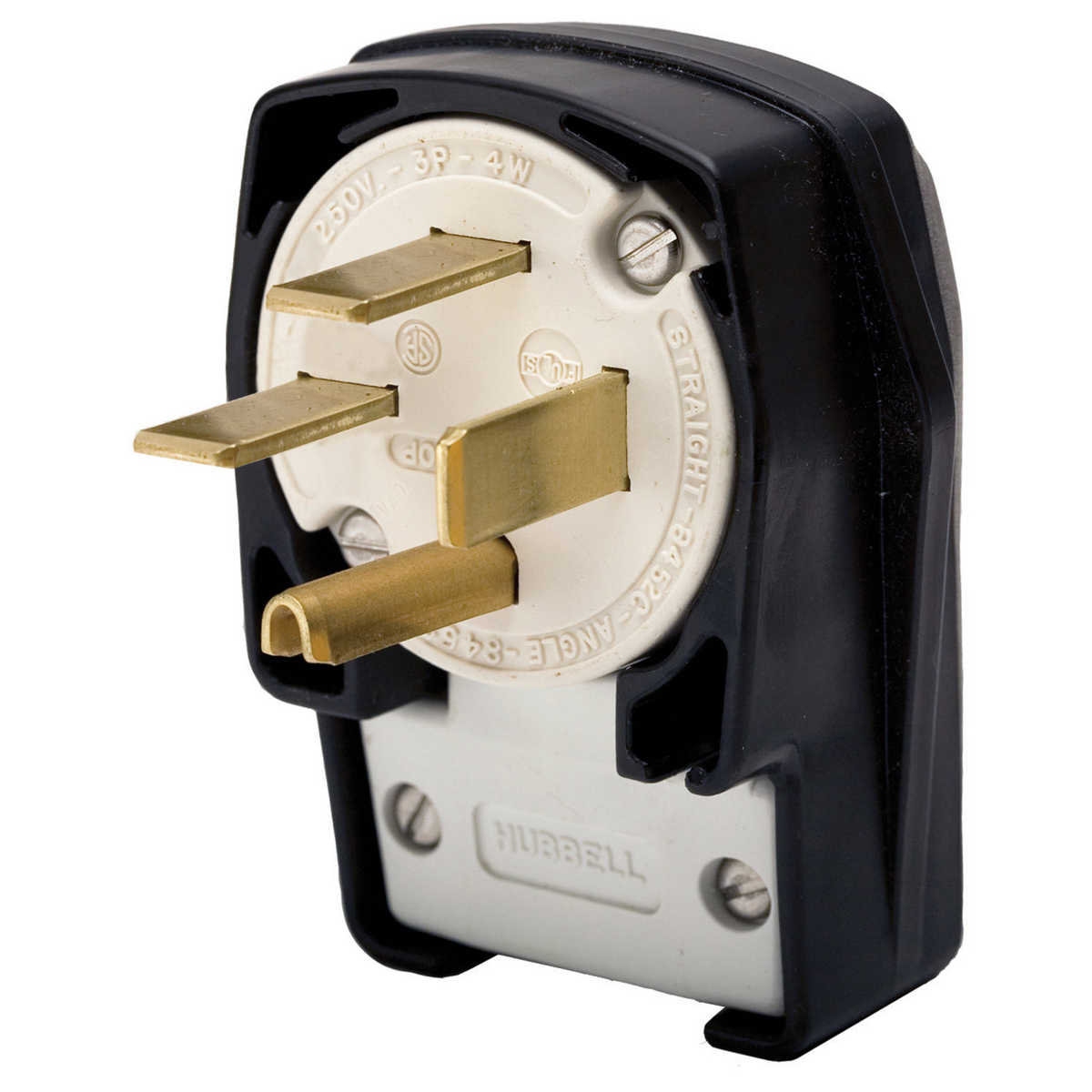

HBL8452C 3-Phase Grounding Standard Cord Mount Straight Blade Plug, 250 V AC, 50 A, 3 Poles, 4 Wires, Black/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL8452C
- UPC:
- 783585015170
- Item #:
- 191406
HBL8452C 3-Phase Grounding Standard Cord Mount Straight Blade Plug, 250 V AC, 50 A, 3 Poles, 4 Wires, Black/White
- MFR #:
- HBL8452C
- UPC:
- 783585015170
- Item #:
- 191406
Availability
| Location | Available Qty |
|---|---|
| Available | 16 ea |
$162.17
each
Manuals and Documentation
| Catalog Number | HBL8452C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 50 |
| Application | Industrial/Commercial |
| Color | Black;White |
| Connection | Terminal Screws |
| Material | Composite |
| Mounting | Cord |
| NEMA Rating | 5 |
| Number of Poles | 3 |
| Number of Wires | 4-Wire |
| Special Features | Angled, 4-Position |
| Standard | NEMA WD1 and WD5, UL498 |
| UPC | 783585015170 |
| GTIN | 00783585015170 |
| Item Type | Plug |
| Size | Standard Sized |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Voltage Rating | 250 |
| Wattage | 12500 W |
| Wire Size | #12 AWG to #4 AWG |

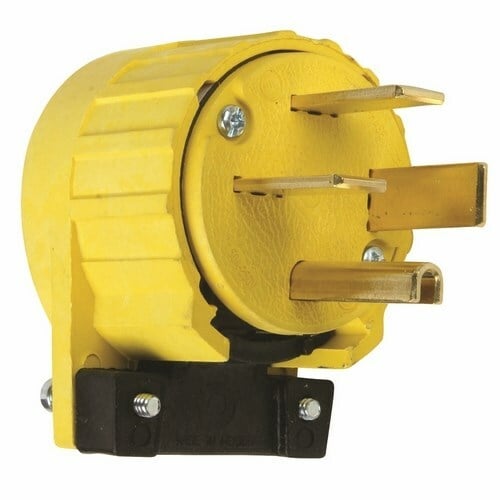

| Cross Reference Products | 5751AN, 5751AN, 8452-P |
