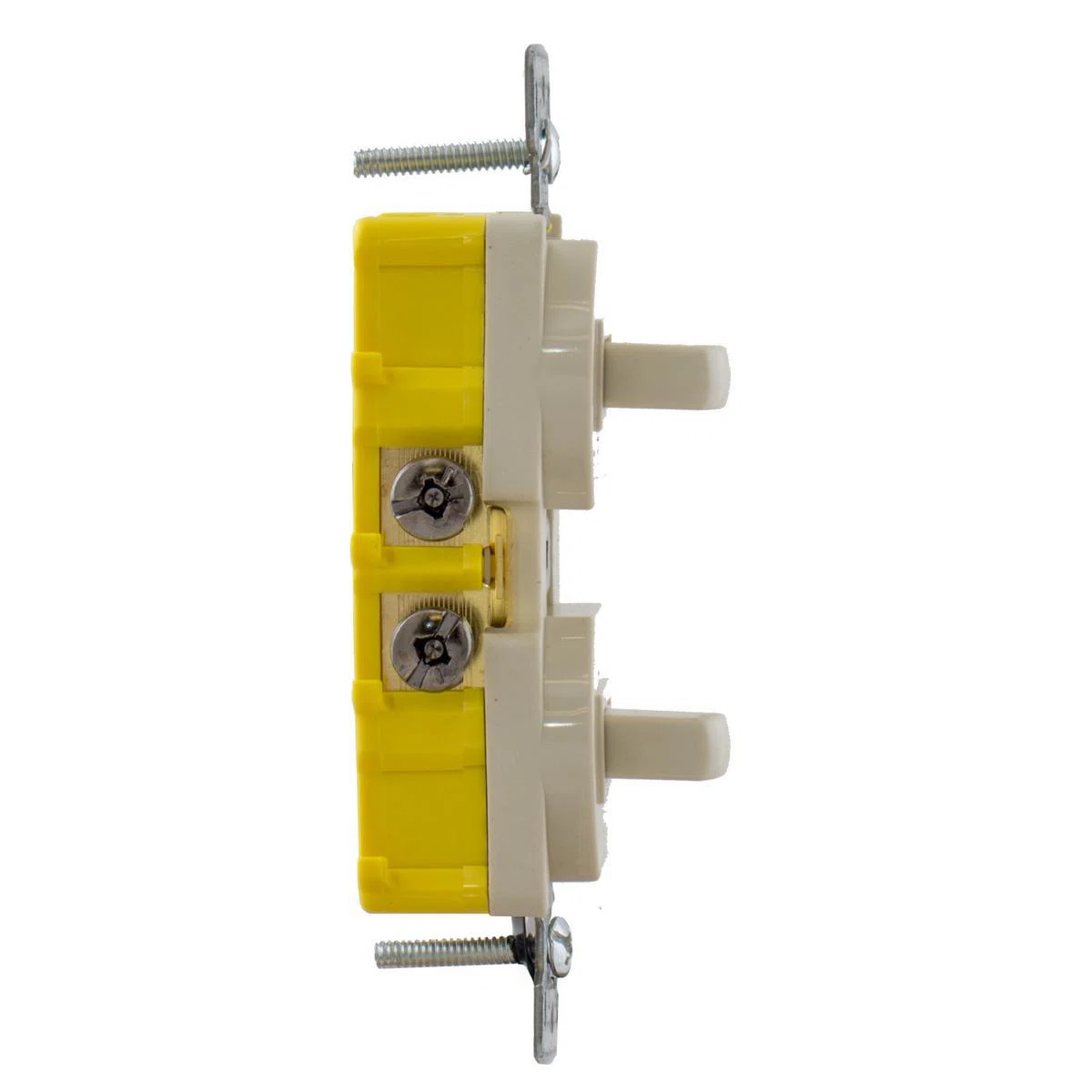

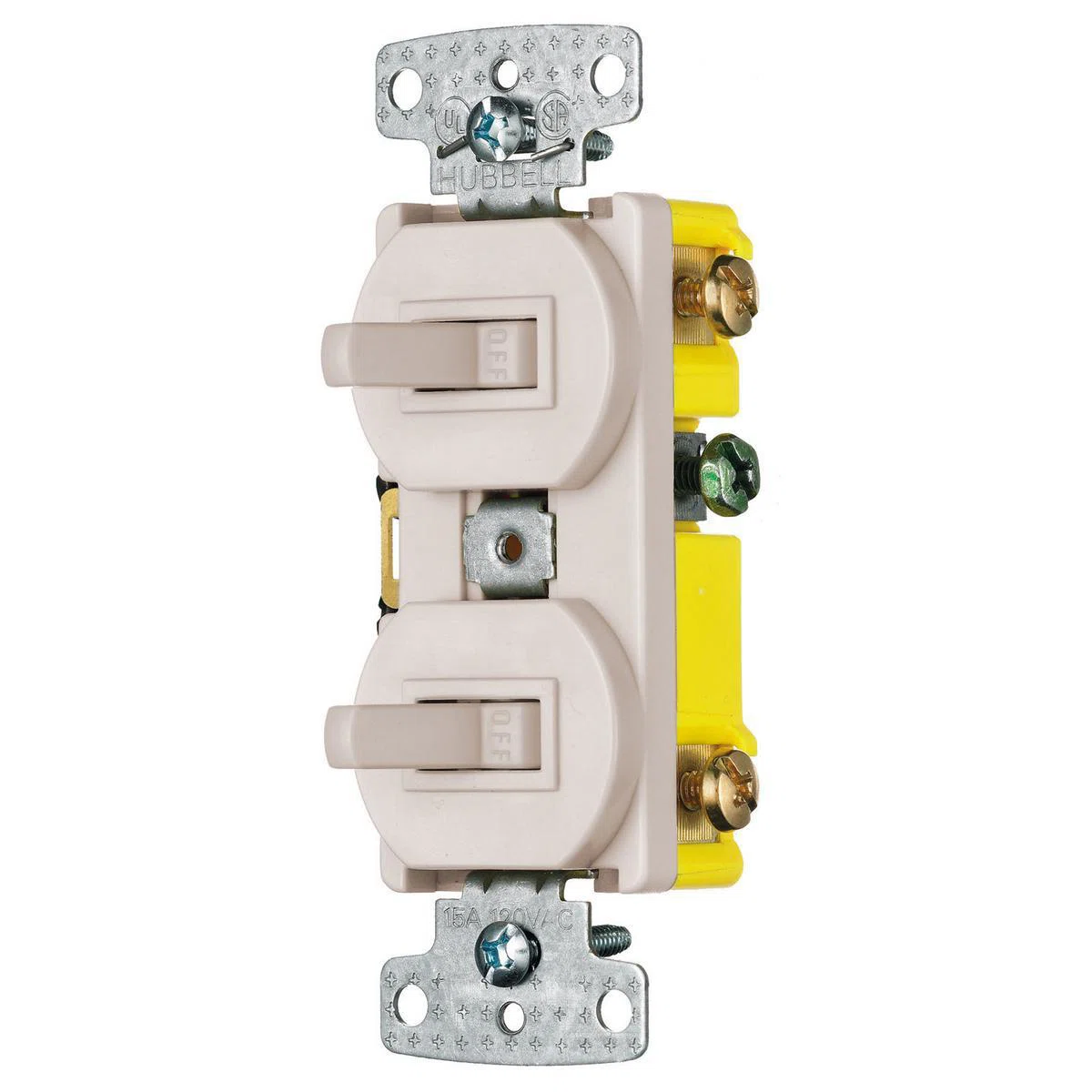

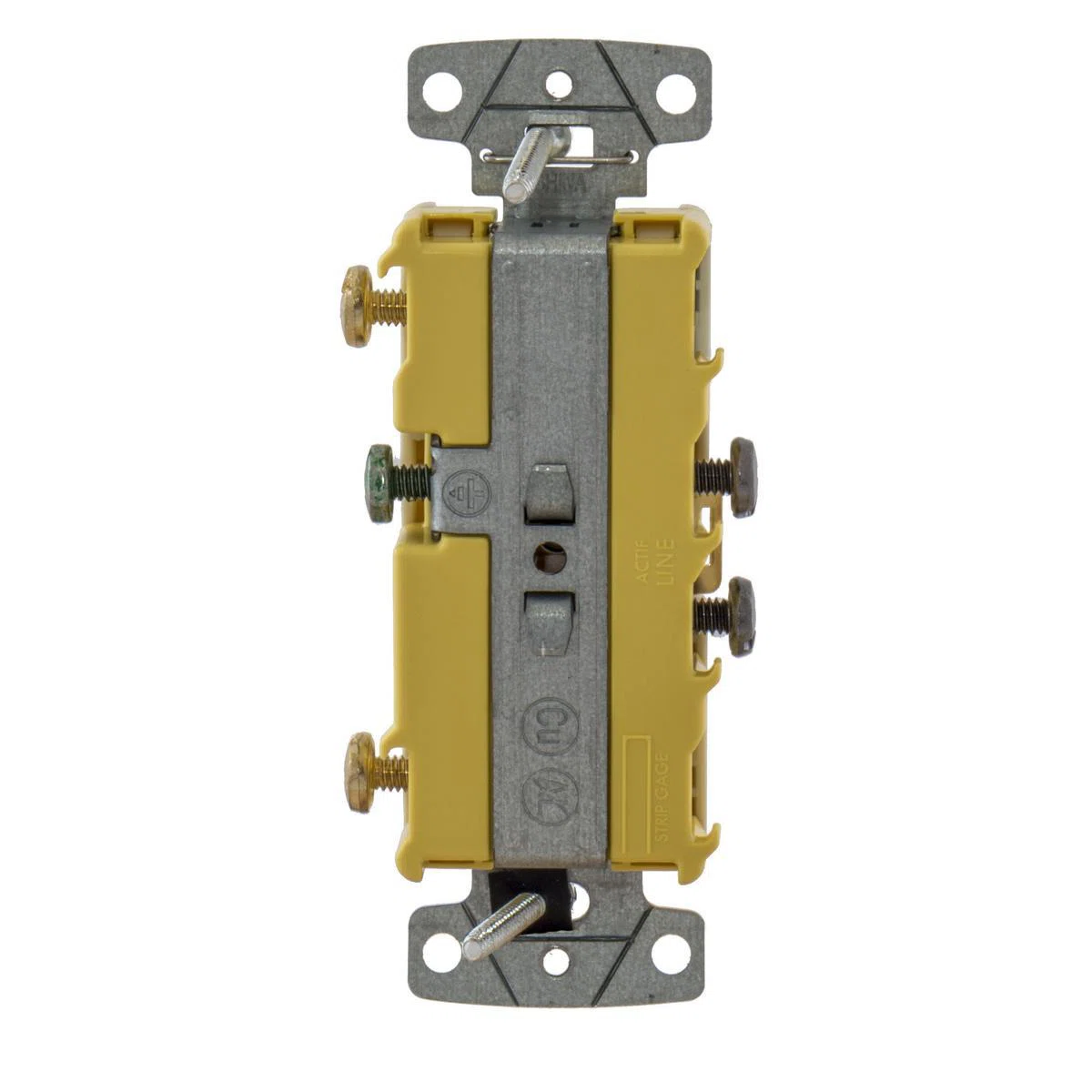

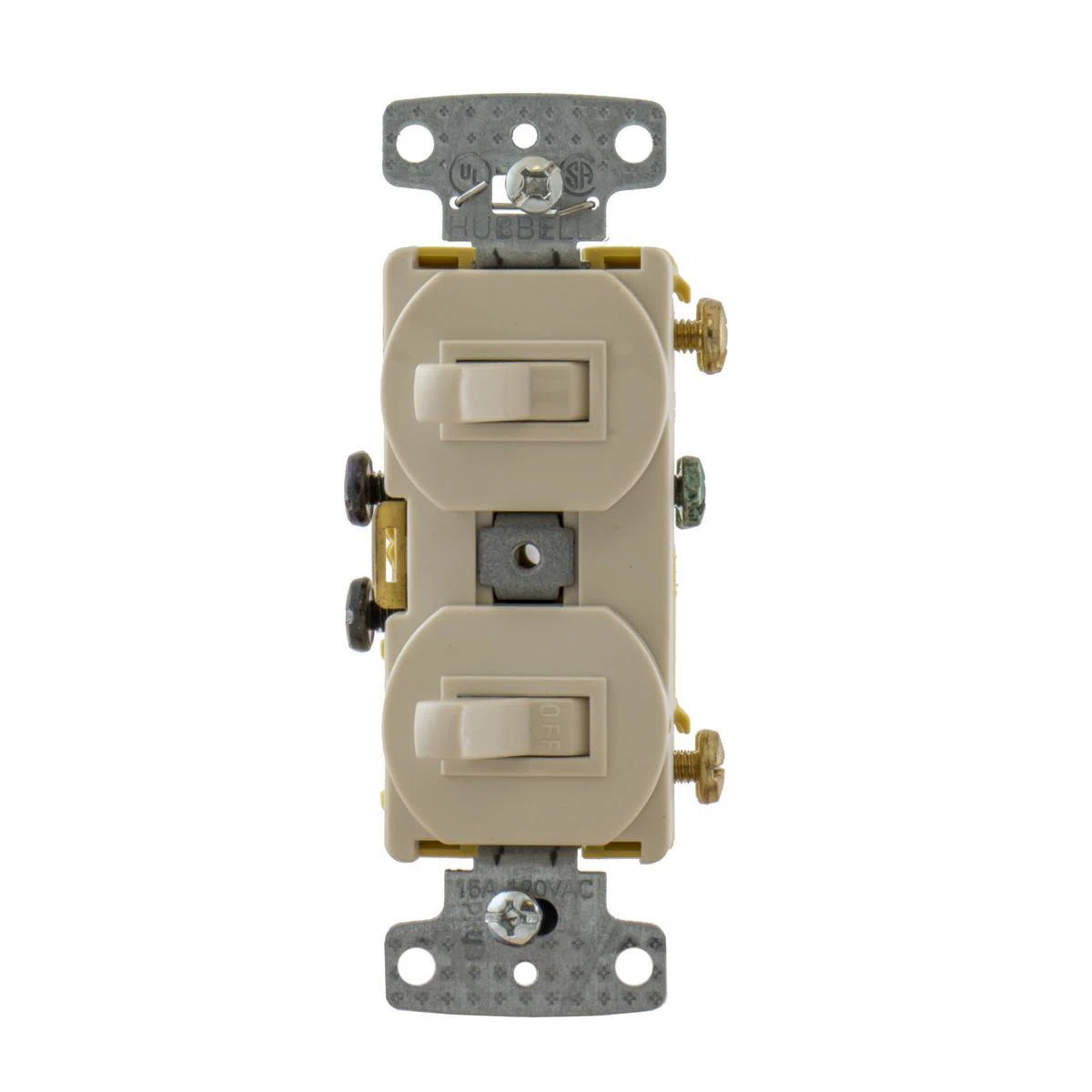

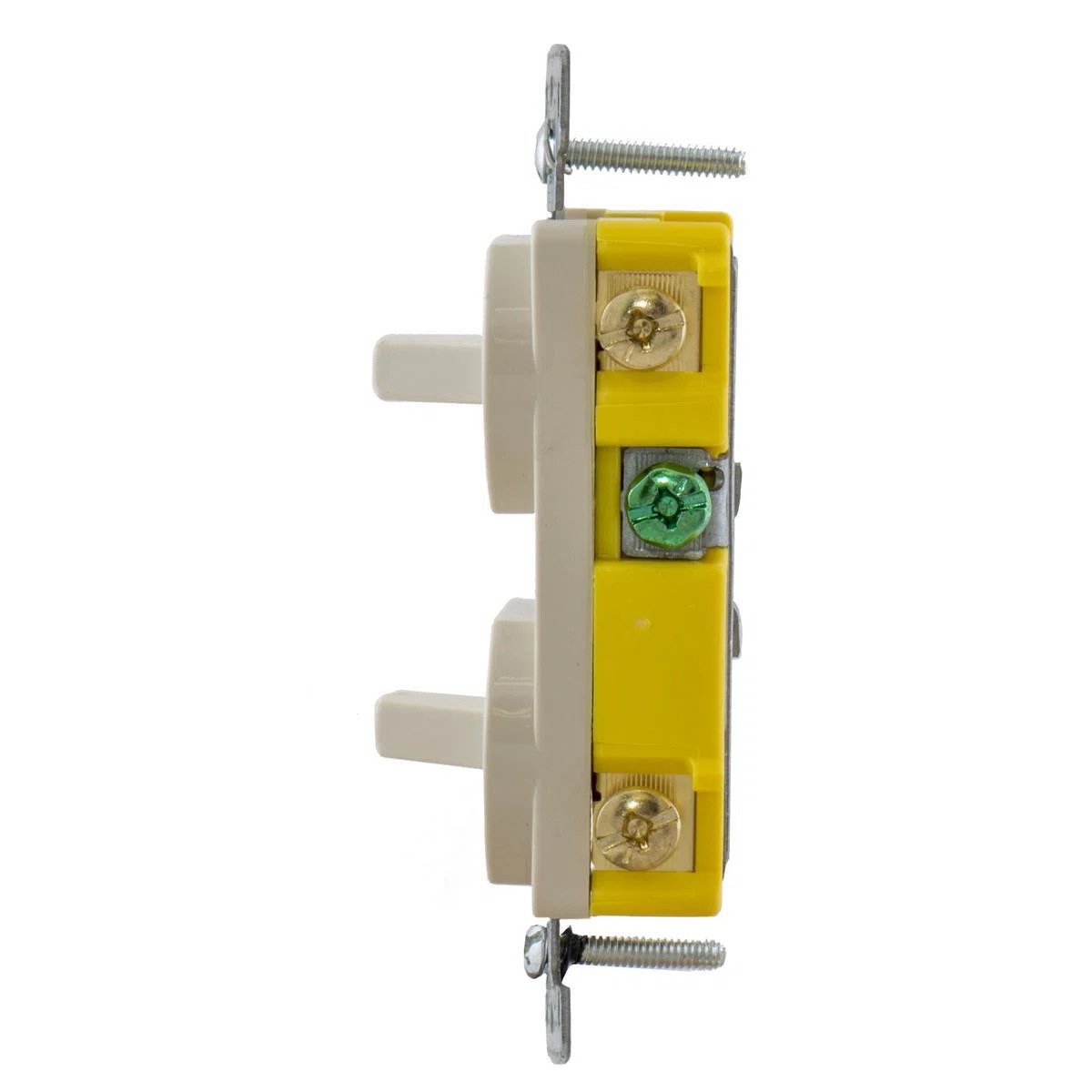

RC101LA Traditional 2-Position Standard Traditional Switch Combination Device, Electrical Ratings: 120 V AC, 15 A, 1800 W, 1 Poles
- MFR:
- Hubbell
- MFR #:
- RC101LA
- UPC:
- 883778119064
- Item #:
- 191030
RC101LA Traditional 2-Position Standard Traditional Switch Combination Device, Electrical Ratings: 120 V AC, 15 A, 1800 W, 1 Poles
- MFR #:
- RC101LA
- UPC:
- 883778119064
- Item #:
- 191030
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$37.07
each
Hubbell Wiring Device-Kellems, RC101LA, Switch Combination Device, 2-Position Standard Traditional, Series: Traditional, 120 V AC, 15 A, 1800 W Electrical Rating, 1 Pole, (2) 1-Pole Toggle Contact Configuration, 15 A Contact, Threaded Mounting, 4.2 in H x 1.32 in W x 1.53 in D Size, 30000 Cycles Operating Cycles, Environmental Conditions: -20 to 60 deg C Without Impact Operating Temperature, Composite, Light Almond
Manuals and Documentation
Features
- Quiet snap action mechanism
- Self-grounding staple is standard
- Elongated strap with continuous plaster ears
| Manufacturer Part Number | RC101LA |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 883778119064 |
| EAN | 0883778119064 |
| Country Of Origin | CN |
| Color | Light Almond |
| Material | Composite |
| Series | Traditional |
| Type | 2-Position Standard Traditional |
| Size | 4.2 in H x 1.32 in W x 1.53 in D |
| Alternative Part Number | 9513236 | 16058104 | 11839042 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 2 Year Limited Warranty |
| Standards Approvals | RoHS Compliant | UL 20 | CSA Certified | NEMA WD1/WD5 |
| Application | Residential Applications |
| Contact Configuration | (2) 1-Pole Toggle |
| Contact Rating | 15 A |
| Electrical Ratings | 120 V AC, 15 A, 1800 W |
| Environmental Conditions | -20 to 60 deg C Without Impact Operating Temperature |
| Mounting | Threaded |
| Number Of Poles | 1 |
| Operating Cycles | 30000 Cycles |
