Discontinued

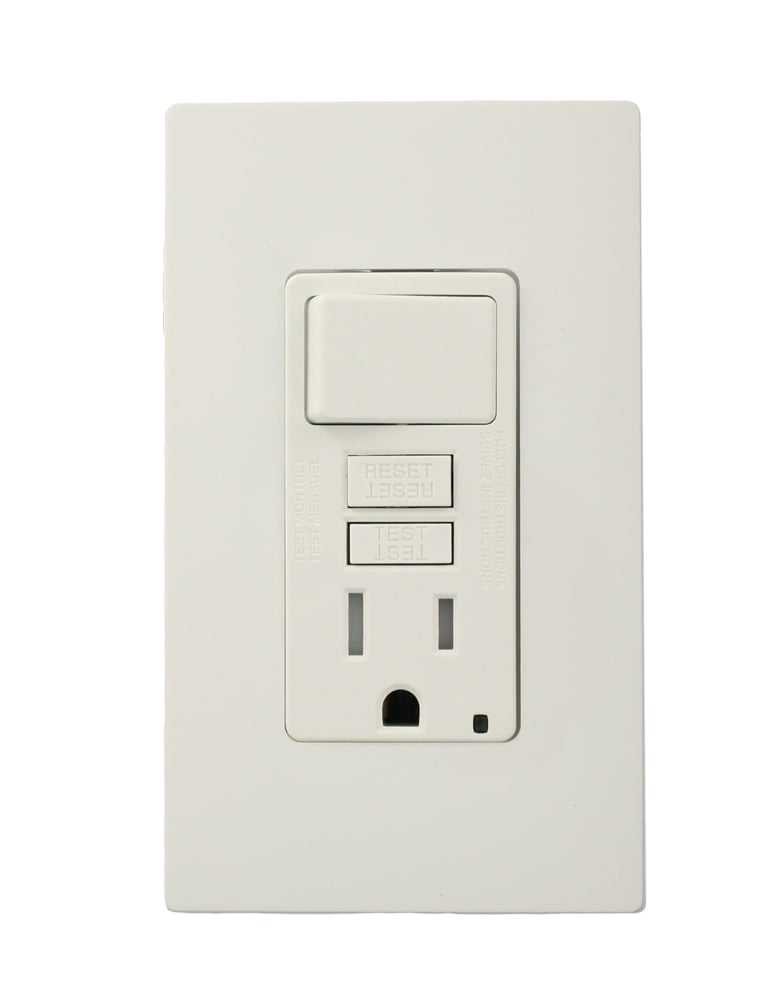

X7299-PW GFCI Combination Switch and Receptacle, 15 A at 125 V AC, 2 Poles, 3 Wires, 14 to 10 AWG Wire
- MFR:
- Leviton
- MFR #:
- X7299-PW
- UPC:
- 078477620243
- Item #:
- 190941
Discontinued
X7299-PW GFCI Combination Switch and Receptacle, 15 A at 125 V AC, 2 Poles, 3 Wires, 14 to 10 AWG Wire
- MFR #:
- X7299-PW
- UPC:
- 078477620243
- Item #:
- 190941
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | X7299-PW |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Commercial |
| Color | White |
| Connection | Back Wired;Side Wired |
| Material | Polycarbonate |
| Mounting | Wall |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Special Features | Tamper Resistant, Single receptacle GFCI with switch saves space and adds convenience, Automatically test the GFCI every time the RESET button is pushed in. The GFCI will not reset if the GFCI circuit is not functioning properly, Dual function LED indicator light provides indication of wiring error and power availability, Advanced electronics design provides superior resistance to electrical surges and over-voltages, Standard brass self-grounding clip, Impact resistant face and body, Fits standard eallboxes, 2-Year Limited Warranty. |
| Standard | NOM Certified (057);cCSAus Certified (File LR-57811);CSA-C22.2 No. 144.1-06 Class A;UL 943 |
| UPC | 078477620243 |
| GTIN | 00078477620243 |
| Item Type | Ground Fault Circuit Interrupter;Single Outlet |
| Depth UOM | Inch |
| Size | 4.21 H x 1.68 W x 1.57 D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Temperature Rating | -35 to +66 DEG C |
| Voltage Rating | 125 |
| Wire Size | 14-10 AWG |
