Hubbell Wiring Device - Kellems

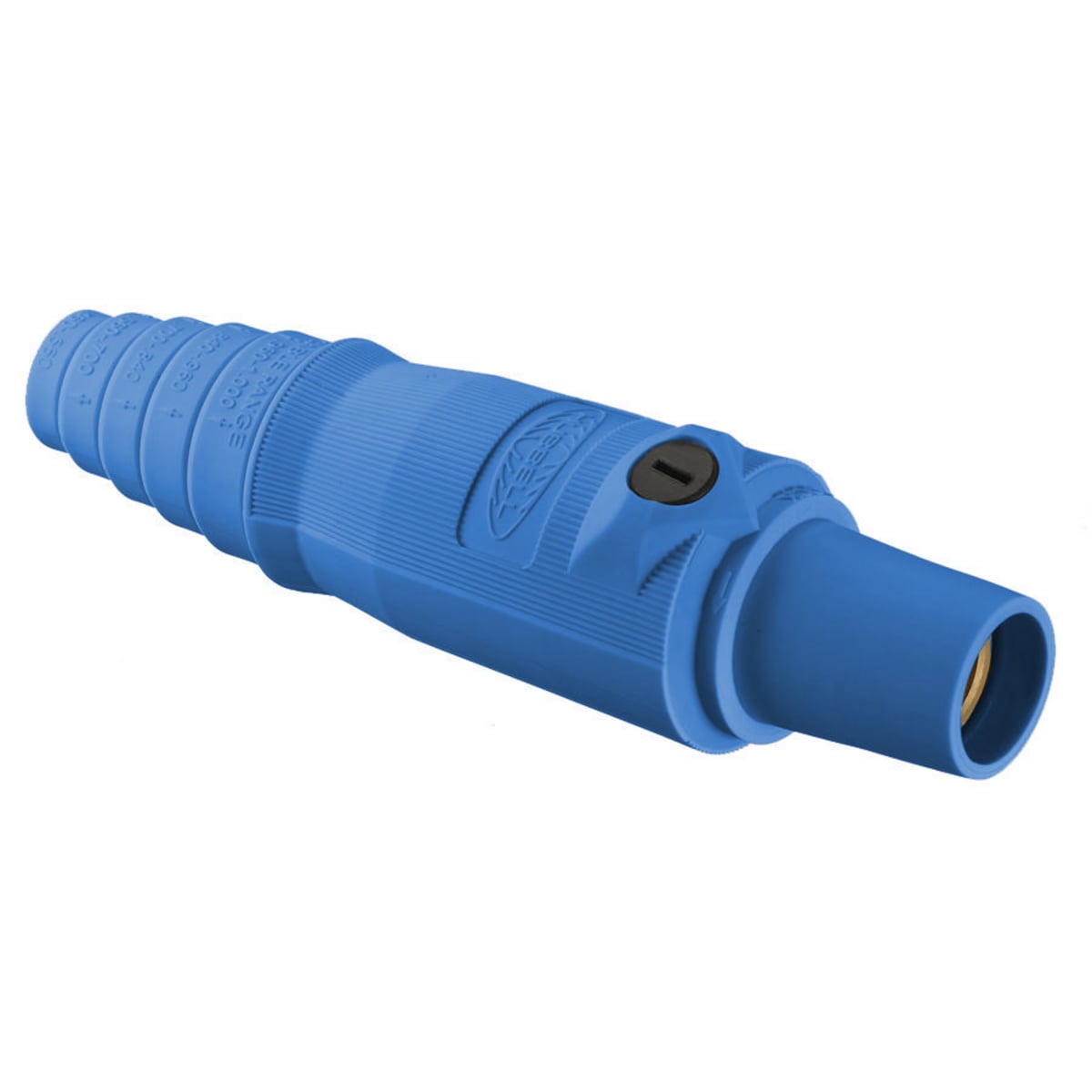

HBL300FBL 16 Series 1-Pole Female Heavy Duty Industrial Grade Standard Single Pole Plug, 600 V AC/250 V DC, 300 A, 4 to 2/0 AWG Wire, Pressure Screw Terminal Connection, 3R/4X/12 NEMA Rating

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL300FBL
UPC:
783585112015
Item #:
190936

Availability

Location Available Qty
Available Available to Order
$63.33 each

Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Manuals and Documentation
Catalog Number HBL300FBL
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 300
Application High Ampacity Connections
Color Blue
Connection Pressure Terminal Screws
Material Composite
Mounting Cord
Number of Poles 1
Number of Wires 1-Wire
Special Features Standard Product
Standard National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
UPC 783585112015
GTIN 00783585112015
Item Type Plugs
Size Standard Sized
Environmental Conditions Indoor Dry unless protected by additional means
Voltage Rating 600 AC, 250 DC Max
Wattage 240000 W
Wire Size #4 AWG to #2/0 AWG
Cross Reference Products Crouse 10168331|Leviton 16D29B|Leviton 16D31B
