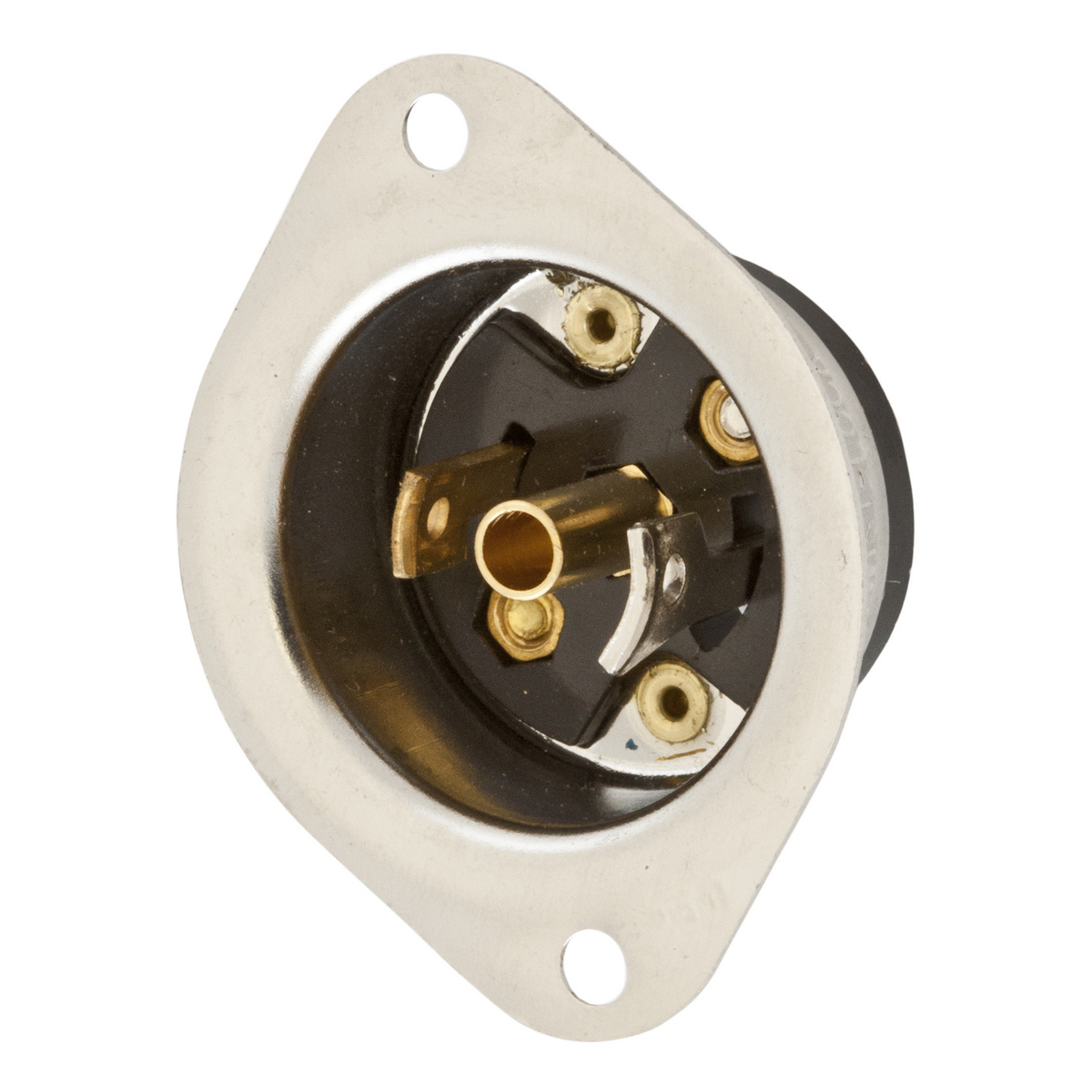

HBL7595 HBL Locking Flanged Inlet, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL7595
- UPC:
- 783585237794
- Item #:
- 190904
HBL7595 HBL Locking Flanged Inlet, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
- MFR #:
- HBL7595
- UPC:
- 783585237794
- Item #:
- 190904
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$39.66
each
Manuals and Documentation
| Catalog Number | HBL7595 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 15 |
| Application | Heavy Duty Industrial |
| Color | Black |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Nylon |
| Mounting | Screw |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Metallic Flange |
| Standard | Certified to CSA C22.2 No.42;Listed to UL 498 |
| UPC | 783585237794 |
| GTIN | 00783585237794 |
| Item Type | Flanged Inlet |
| Size | 2.06 in x 1.63 in x 1.00 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 125 |
| Wattage | 1,875 W |
| Wire Size | #18 AWG to #14 AWG |
