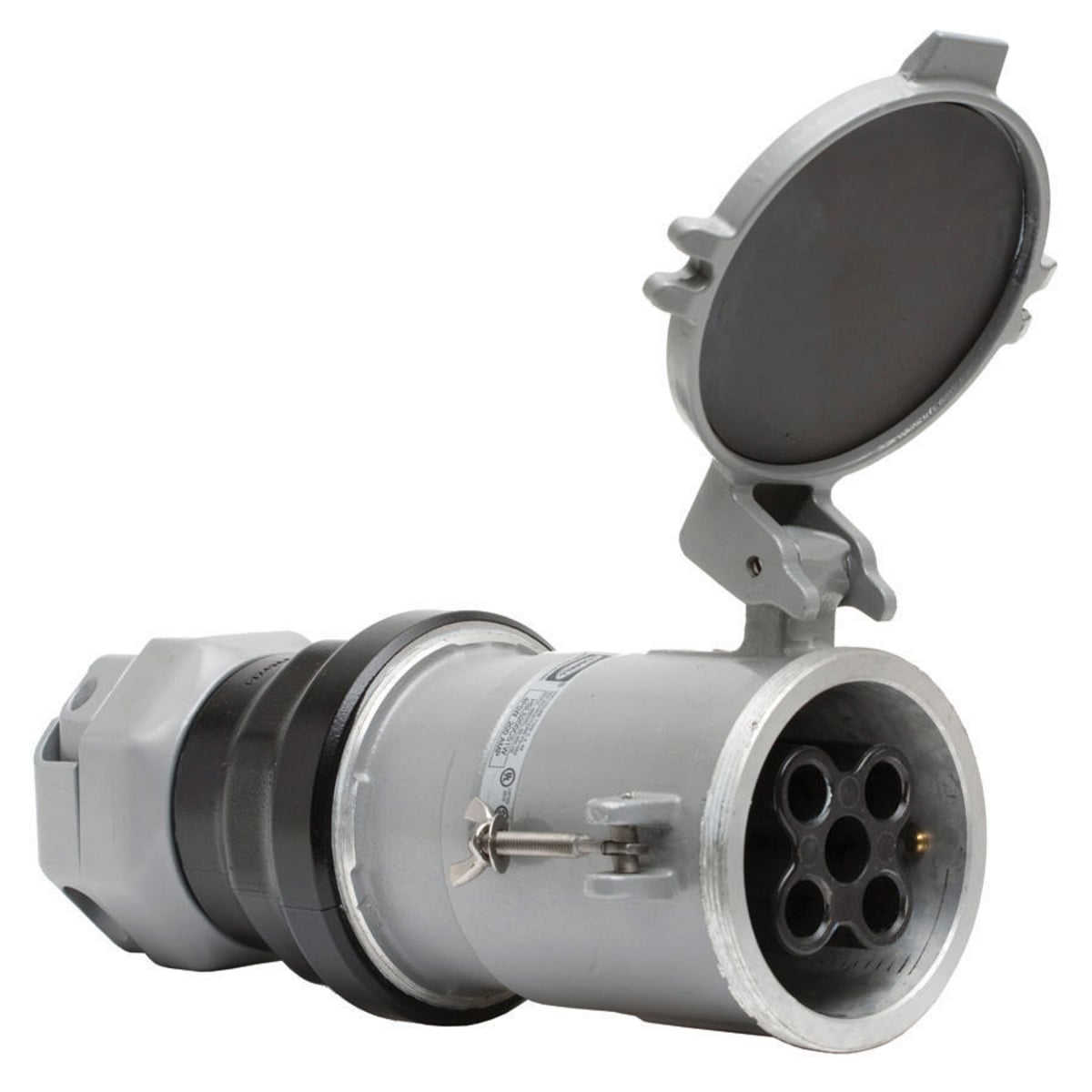

HBL3100CS2W Female Heavy Duty Standard Watertight Cord Mount Pin and Sleeve Connector, 600 V AC/250 V DC, 100 A, 2 Poles, 3 Wires, Black/Gray

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL3100CS2W
UPC:
783585010984
Item #:
190728

Availability

Location Available Qty
Available Available to Order
$1,039.93 each

Watertight Devices - Hubbells IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbells horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting line of sight disconnecting means.

Manuals and Documentation
Catalog Number HBL3100CS2W
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Amperage Rating 100
Application Metallic with Nylon Shroud
Color Black;Gray
Conductor Range #4 AWG to #2 AWG
Connection Pressure Screw Terminal
Insulation Insulated Body
Material Composite
Mounting Cord
Number of Conductors 3-Wire Grounding
Number of Poles 2
Special Features Watertight
Standard CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
UPC 783585010984
GTIN 00783585010984
Item Type Watertight Connector
Size Standard
Environmental Conditions Watertight
Temperature Rating Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact.
Voltage Rating 600 VAC/250
