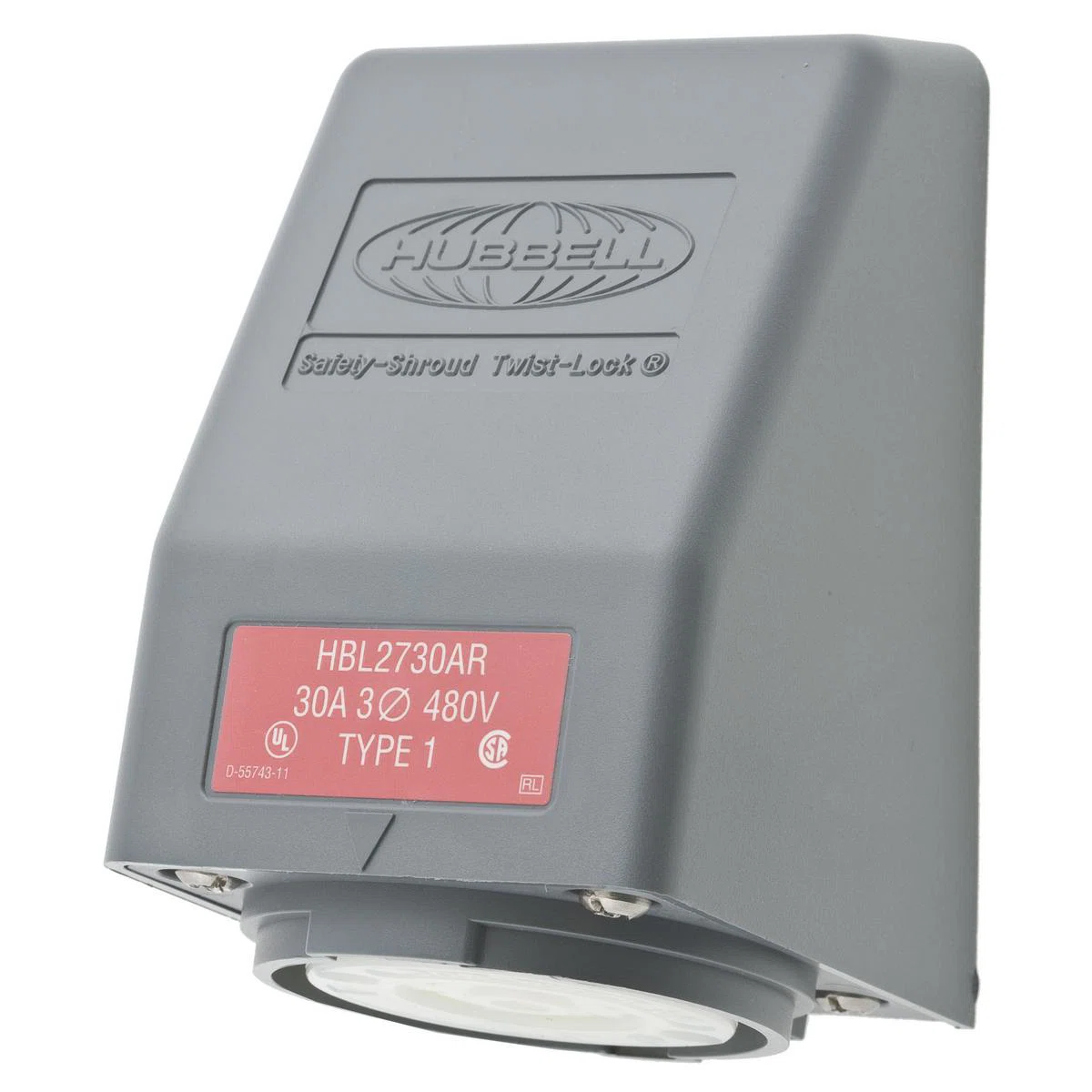

HBL2730AR 3-Phase Heavy Duty Single Screw Mount Locking Receptacle, 480 V AC, 30 A, 3 Poles, 4 Wires, Gray/White
- MFR:
- Hubbell
- MFR #:
- HBL2730AR
- UPC:
- 783585234809
- Item #:
- 190491
HBL2730AR 3-Phase Heavy Duty Single Screw Mount Locking Receptacle, 480 V AC, 30 A, 3 Poles, 4 Wires, Gray/White
- MFR #:
- HBL2730AR
- UPC:
- 783585234809
- Item #:
- 190491
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$103.77
each
Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud®, HBL2730AR, Locking Receptacle, 3-Phase Heavy Duty Single Screw Mount, Series: HBL®, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Valox™ Gray/White, 4.77 x 2.85 x 3.14 in Dimensions
Manuals and Documentation
Features
- Accepts Hubbell shrouded and standard NEMA locking plugs
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
| Manufacturer Part Number | HBL2730AR |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 783585234809 |
| EAN | 0783585234809 |
| Country Of Origin | US |
| Amperage Rating | 30 A |
| Color | Gray/White |
| Dimensions | 4.77 x 2.85 x 3.14 in |
| Horsepower | 10 hp |
| Material | Valox™ |
| Series | HBL® |
| Temperature Rating | -40 to 75 deg C |
| Type | 3-Phase Heavy Duty Single Screw Mount |
| Voltage Rating | 480 V AC |
| Alternative Part Number | 8915724 | 11829399 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | Limited |
| Standards Approvals | UL 498 | CSA C22.2 No. 42 Certified | NEMA WD1/WD5 | RoHS Compliant |
| Grade | Industrial |
| Nema Rating | L16-30R |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Terminal Type | Screw |
