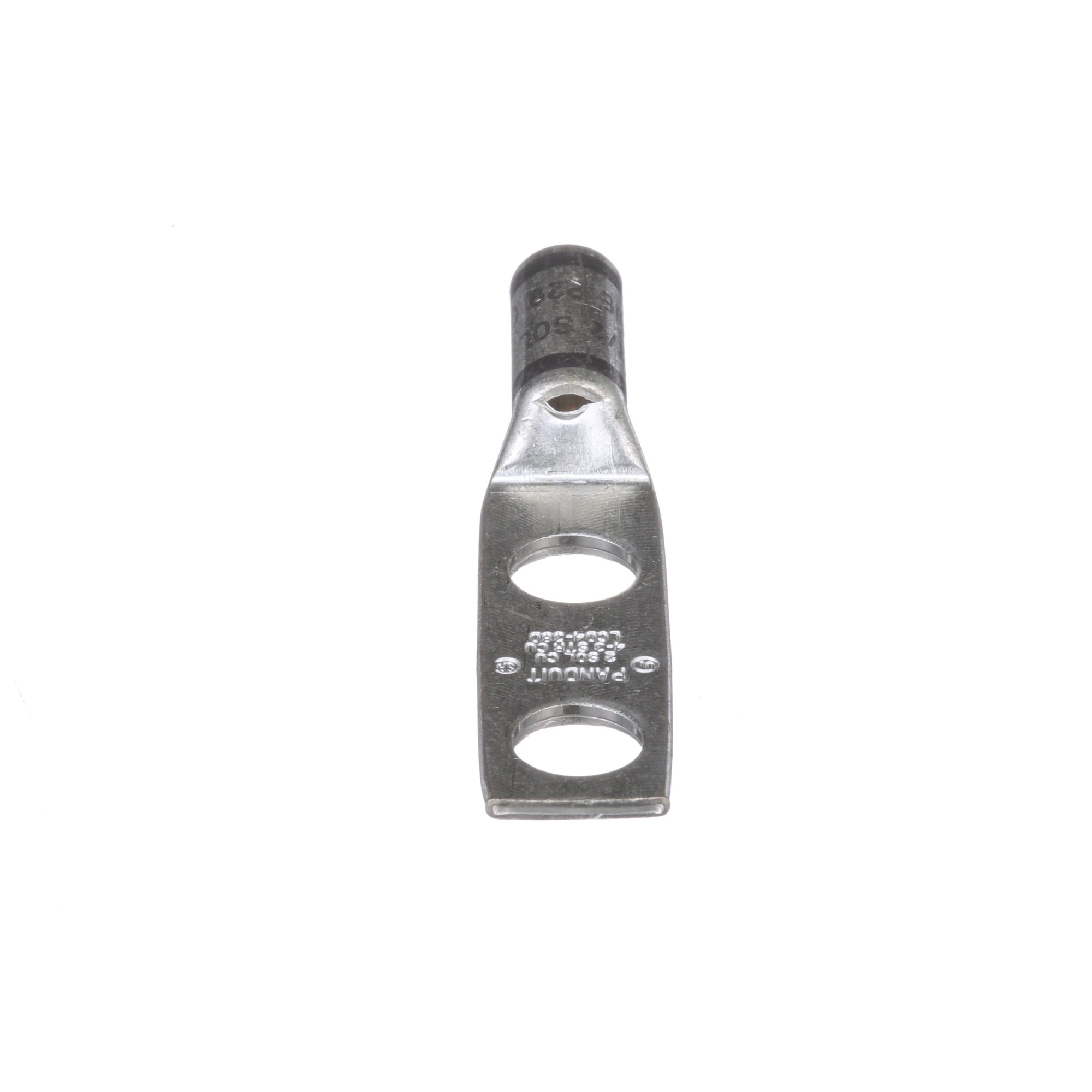

LCD4-38D-L Pan-Lug LCD 2-Hole Compression Connector Lug With Inspection Window, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 42.95 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCD4-38D-L
- UPC:
- 074983383078
- Item #:
- 190221
LCD4-38D-L Pan-Lug LCD 2-Hole Compression Connector Lug With Inspection Window, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 42.95 in Stud, Tin Plated Copper
- MFR #:
- LCD4-38D-L
- UPC:
- 074983383078
- Item #:
- 190221
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$11.7929
each
Two-hole, standard barrel lug with window, #4 #3 AWG STR, #2 AWG SOL wire, 3/8 stud hole, 1 hole spacing.
Manuals and Documentation
| Catalog Number | LCD4-38D-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Gray |
| Material | Tin-Plated Copper |
| Number of Holes | 2 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UPC | 074983383078 |
| GTIN | 00074983383078 |
| Item Type | Compression Lug |
| Size | #4 — #3 AWG Code STR, #2 AWG Code SOL |
| Stud Size | 3/8 IN |
