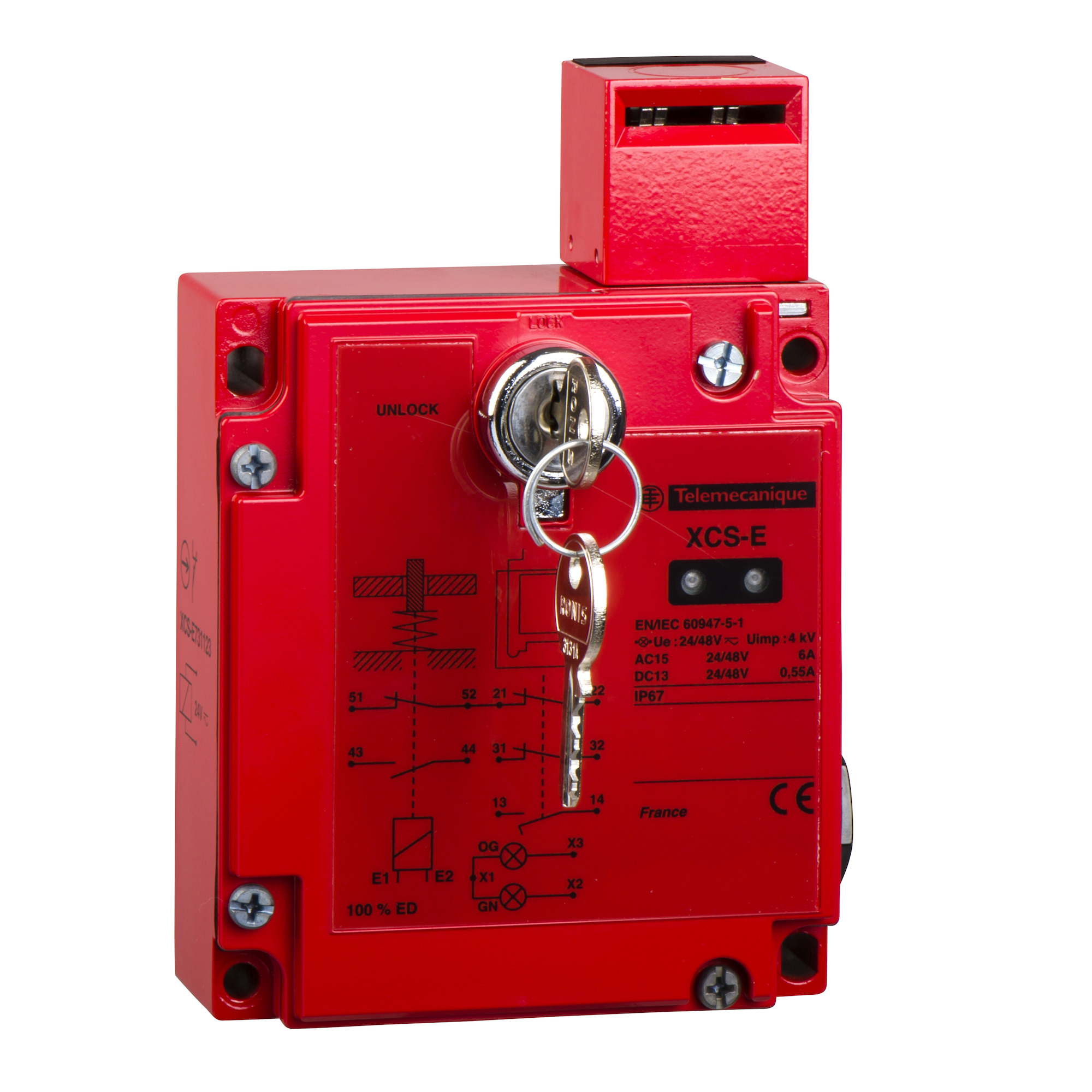

XCSE7313FW1 Preventa Turret Head Safety Interlock Switch, 24/48 V AC, 6 A, 50/60 Hz, 10 VA Power Rating, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- XCSE7313FW1
- UPC:
- 785901433255
- Item #:
- 190204
XCSE7313FW1 Preventa Turret Head Safety Interlock Switch, 24/48 V AC, 6 A, 50/60 Hz, 10 VA Power Rating, 3 Poles
- MFR #:
- XCSE7313FW1
- UPC:
- 785901433255
- Item #:
- 190204
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,054.12
each
SAFETY INTERLOCK 300 VAC - 5 A - TYPE XCS
| Catalog Number | XCSE7313FW1 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty: 18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Slow-break, break before make |
| Application | KEY OPERATED TURRET HEAD |
| Connection | Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Contact Configuration | 2 NC + 1 NO |
| Operating Cycles | 10 CYC/MN FOR MAXIMUM DURABILITY |
| Special Features | for guard open/guard closed and locked 2 LEDs (green or orange);Locking on de-energisation and unlocking on energisation of solenoid;Overvoltage protection signalling circuit |
| Standard | 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA-UL,EN/ISO 12100-EN/IEC 60204-1-EN/IEC 60947-5-1-CSA C22.2 NO 14-EN 1088/ISO 14119-UL 508,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,CLASS I EN/IEC 61140 |
| UPC | 785901433255 |
| GTIN | 00785901433255 |
| Item Type | Safety switch |
| Size | 1.73 |
| Operating Temperature | -25-40 A Degrees C |
| Voltage Rating | 24 V - 20...10 % |
