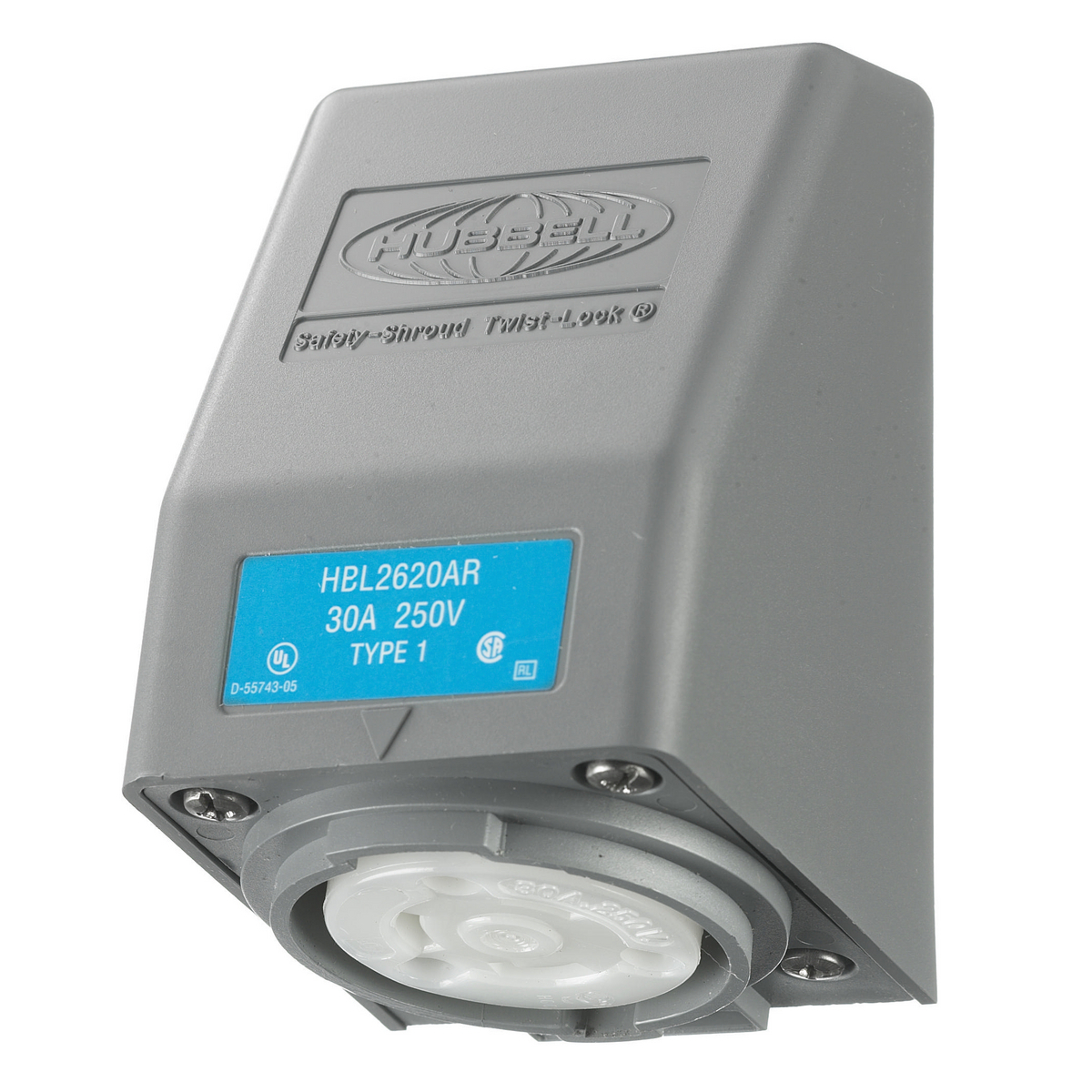

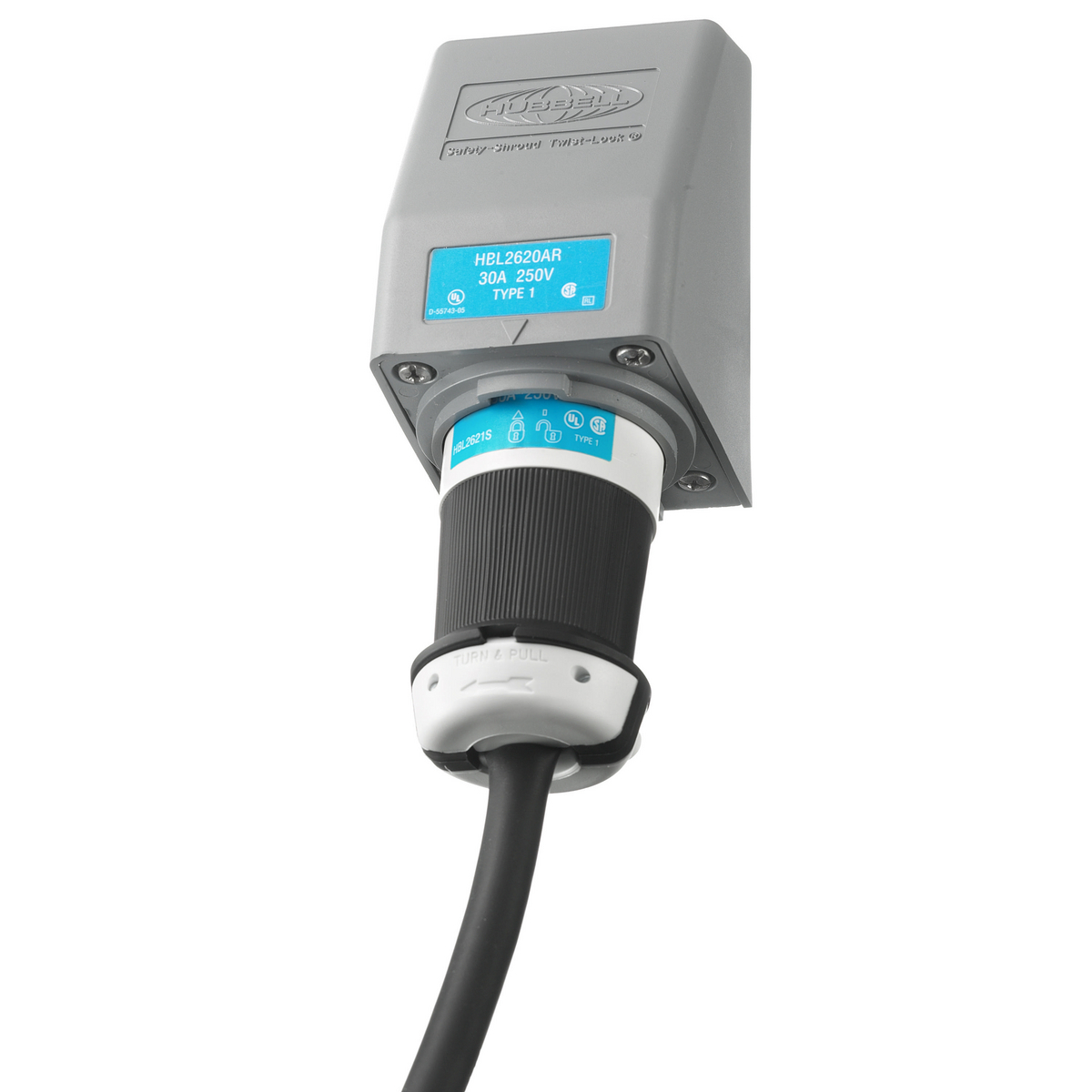

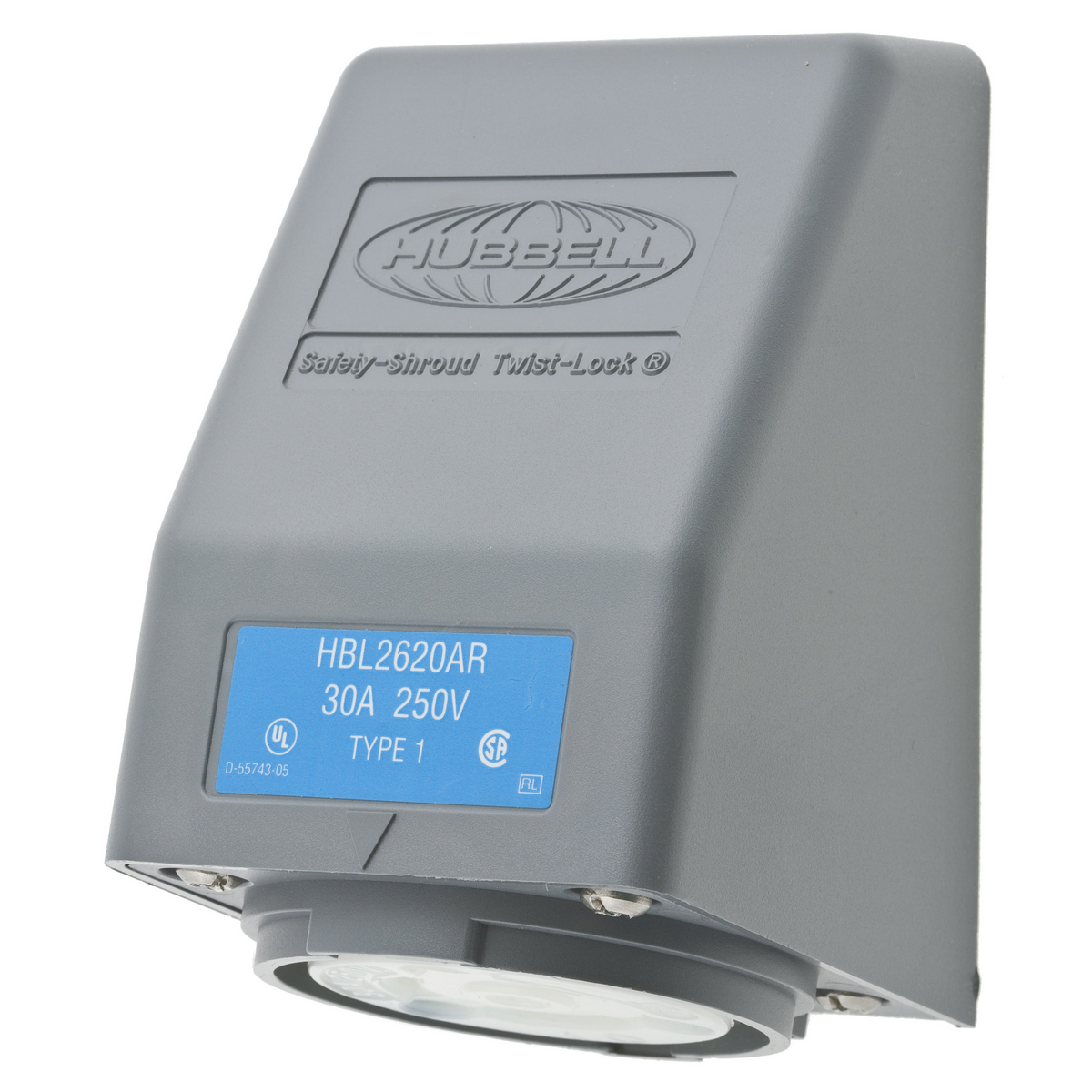

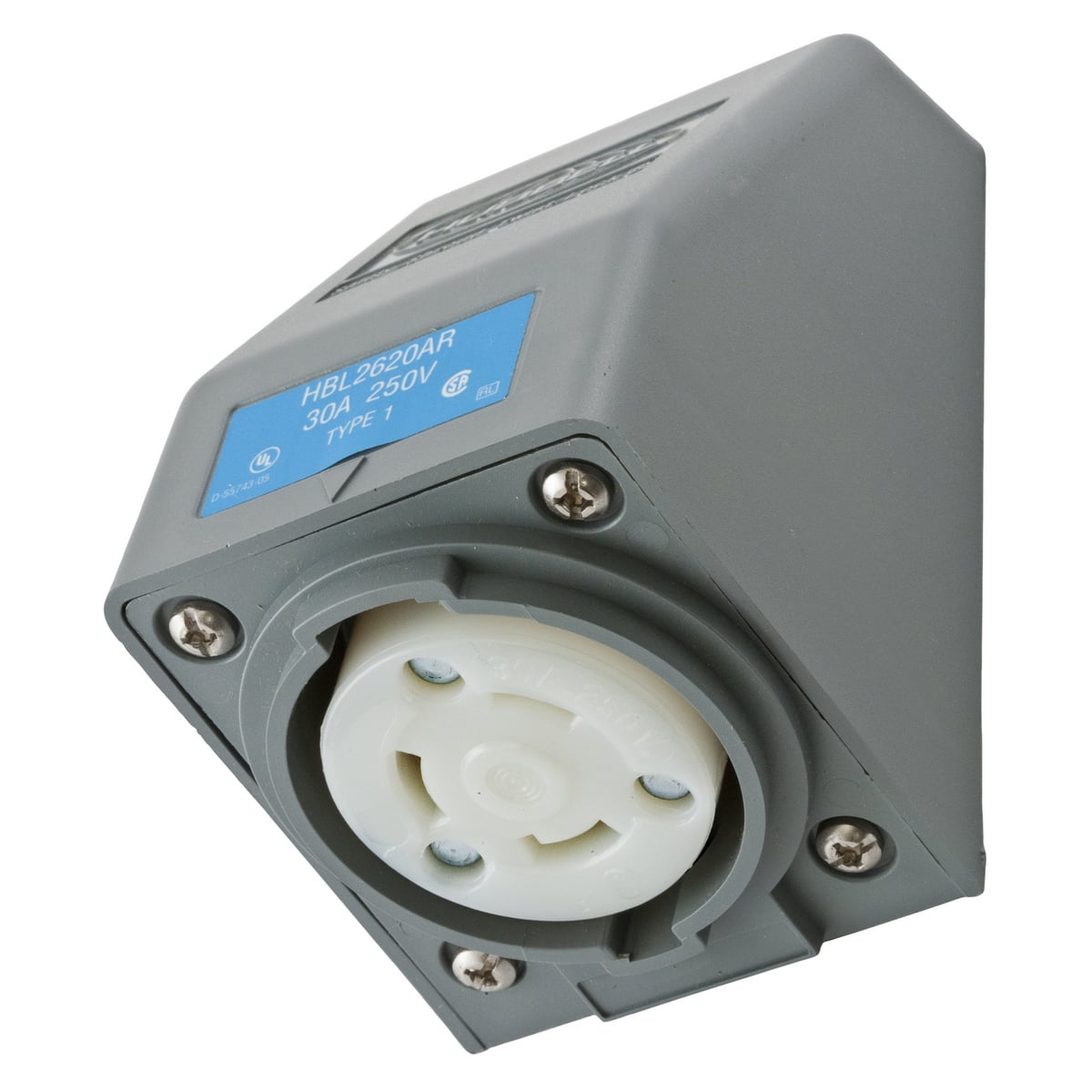

HBL2620AR 1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Screw Mount Locking Receptacle, 250 V AC, 30 A, 2 Poles, 3 Wires, Gray/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2620AR
- UPC:
- 783585234328
- Item #:
- 18980
HBL2620AR 1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Screw Mount Locking Receptacle, 250 V AC, 30 A, 2 Poles, 3 Wires, Gray/White
- MFR #:
- HBL2620AR
- UPC:
- 783585234328
- Item #:
- 18980
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$71.27
each
Manuals and Documentation
| Catalog Number | HBL2620AR |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 30 |
| Application | Heavy Duty Industrial Shrouded |
| Color | Gray; White |
| Connection | Screw Terminal |
| Material | Valox™ |
| Mounting | Screw |
| NEMA Rating | 6 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire Grounding |
| Phase | 1 |
| Special Features | Angled Housing |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585234328 |
| GTIN | 00783585234328 |
| Item Type | Single Receptacle |
| Size | 4.77 in x 2.85 in x 3.14 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 250 |
| Wattage | 7,500 W |
| Wire Size | #16 AWG to #8 AWG |
