SolaHD

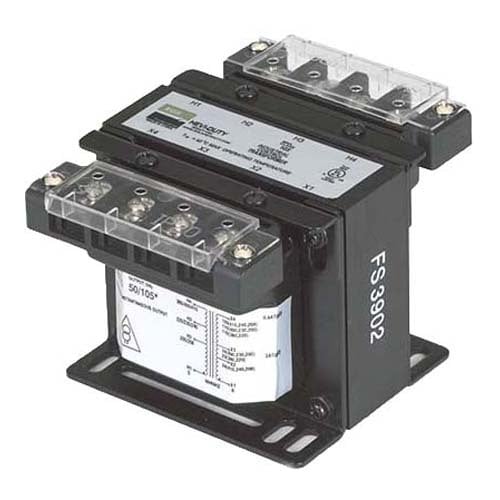

E250TF International Encapsulated Control Transformer, 208/240/415/480/600 V AC Primary, 120 VAC Secondary, 0.25 kVA Power Rating, 50/60 Hz, 1 Phase

MFR:
SolaHD
MFR #:
E250TF
UPC:
783472002139
Item #:
189712

Availability

Location Available Qty
Available Available to Order
$811.91 each
Manuals and Documentation
Catalog Number E250TF
Manufacturer SolaHD
Brand SolaHD
Country of Origin Viet Nam
Made in USA No
Application Industrial
Enclosure IP20
Frequency Rating 50/60
Mounting Mounting Plate
Phase 1
Primary Voltage 208/240/415/480/600 Volt Primary
Secondary Voltage 120 Volt Secondary
Special Features 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32" x 1-1/2" cartridges (fuses not included). Factory installed fuse holders are available (see WA and WB options).
Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant
UPC 783472002139
GTIN 00783472002139
Item Type International Series Control: 50-750 VA.
Length 5.21
Width 4.5
Height 3.89
Wattage 150
Power Factor 50
