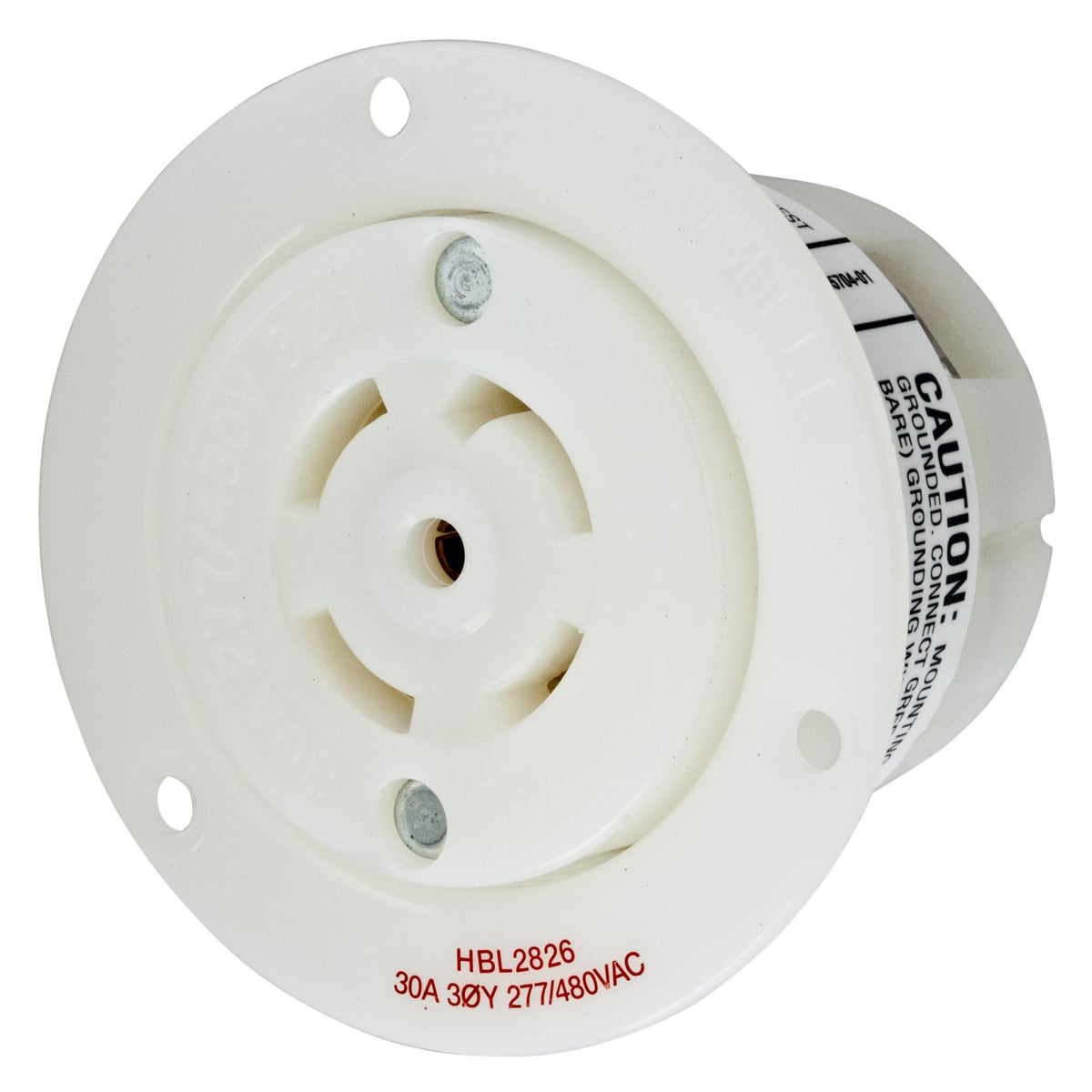

HBL2826 3-Phase Flanged Standard Single Screw Mount Locking Receptacle, 277Y/480 V AC, 30 A, 4 Poles, 5 Wires, White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2826
- UPC:
- 783585039725
- Item #:
- 189636
HBL2826 3-Phase Flanged Standard Single Screw Mount Locking Receptacle, 277Y/480 V AC, 30 A, 4 Poles, 5 Wires, White
- MFR #:
- HBL2826
- UPC:
- 783585039725
- Item #:
- 189636
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$194.22
each
Manuals and Documentation
| Catalog Number | HBL2826 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 30 |
| Application | Heavy Duty Industrial |
| Color | White |
| Connection | Screw Terminal |
| Material | Nylon |
| Mounting | Screw |
| Number of Poles | 4 |
| Number of Wires | 5-Wire |
| Phase | 3 |
| Special Features | Standard |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585039725 |
| GTIN | 00783585039725 |
| Item Type | Flanged Receptacle |
| Size | 3.06 in x 3.06 in x 2.27 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 3 Phase WYE 277/480 |
| Wattage | 14,400 W |
| Wire Size | #16 AWG to #8 AWG |
