TR26361W 20 Amp 125V Spec-Grade Decorator Duplex Receptacle, Back and Side Wire, White
- MFR:
- Legrand-Pass & Seymour
- MFR #:
- TR26361W
- UPC:
- 785007005004
- Item #:
- 189066
TR26361W 20 Amp 125V Spec-Grade Decorator Duplex Receptacle, Back and Side Wire, White
- MFR #:
- TR26361W
- UPC:
- 785007005004
- Item #:
- 189066

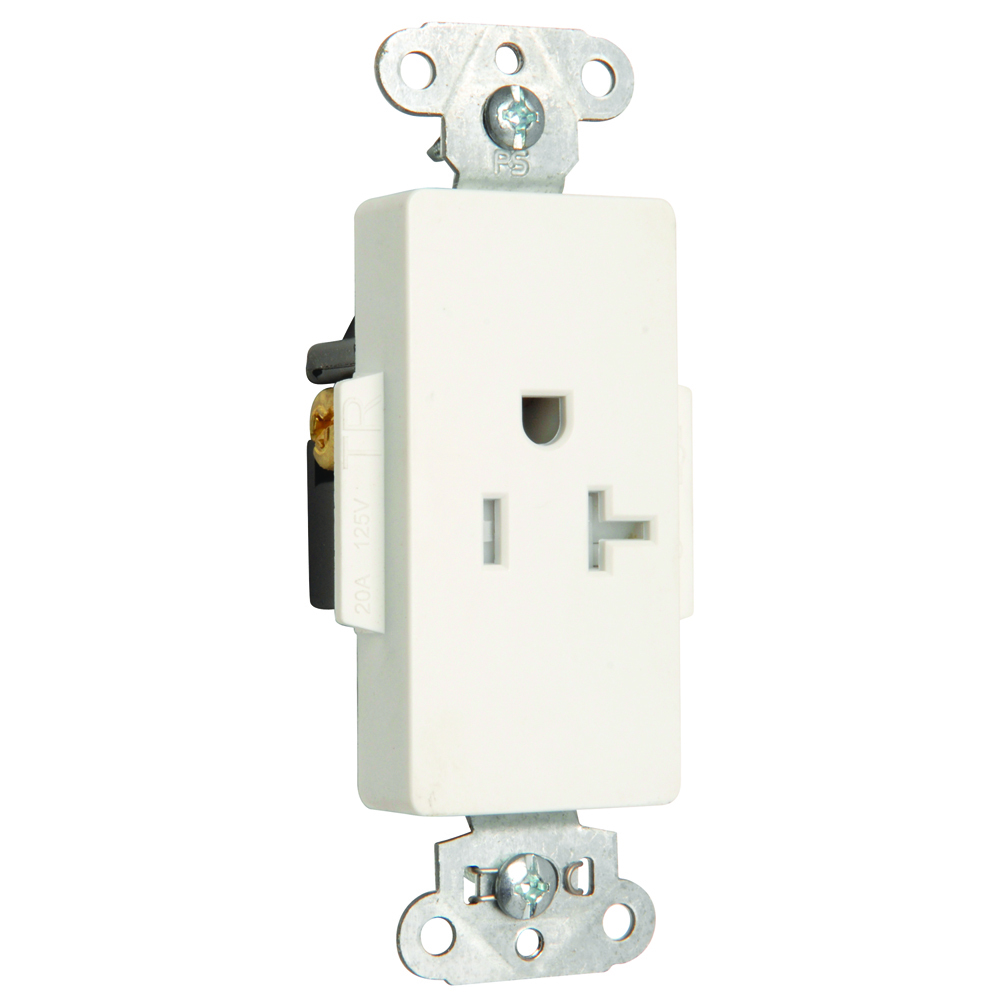

Tamper-Resistant Heavy-Duty Decorator Spec Grade Single Receptacle, Back and Side Wire, 20A, 125V
| Catalog Number | TR26361W |
| Manufacturer | Legrand-Pass & Seymour |
| Brand | Legrand-Pass & Seymour |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial |
| Color | White |
| Connection | Back and side wire |
| Material | Nylon |
| Mounting | Wall |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Special Features | Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. One-piece, brass, triple-wipe power contacts for lasting retention. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest. Heavy-duty corrosion-resistant zinc-plated steel strap for added strength. |
| Standard | UL498, CSA C22.2 No. 42 |
| UPC | 785007005004 |
| GTIN | 00785007005004 |
| Item Type | Tamper-Resistant Spec Grade Decorator Single Receptacle, Heavy-Duty |
| Size | 1.322 L x 1.188 W x 3.813 H |
| Temperature Rating | -40° - 60° C |
| Voltage Rating | 125 |
| Wire Size | 14 - 10 AWG |
