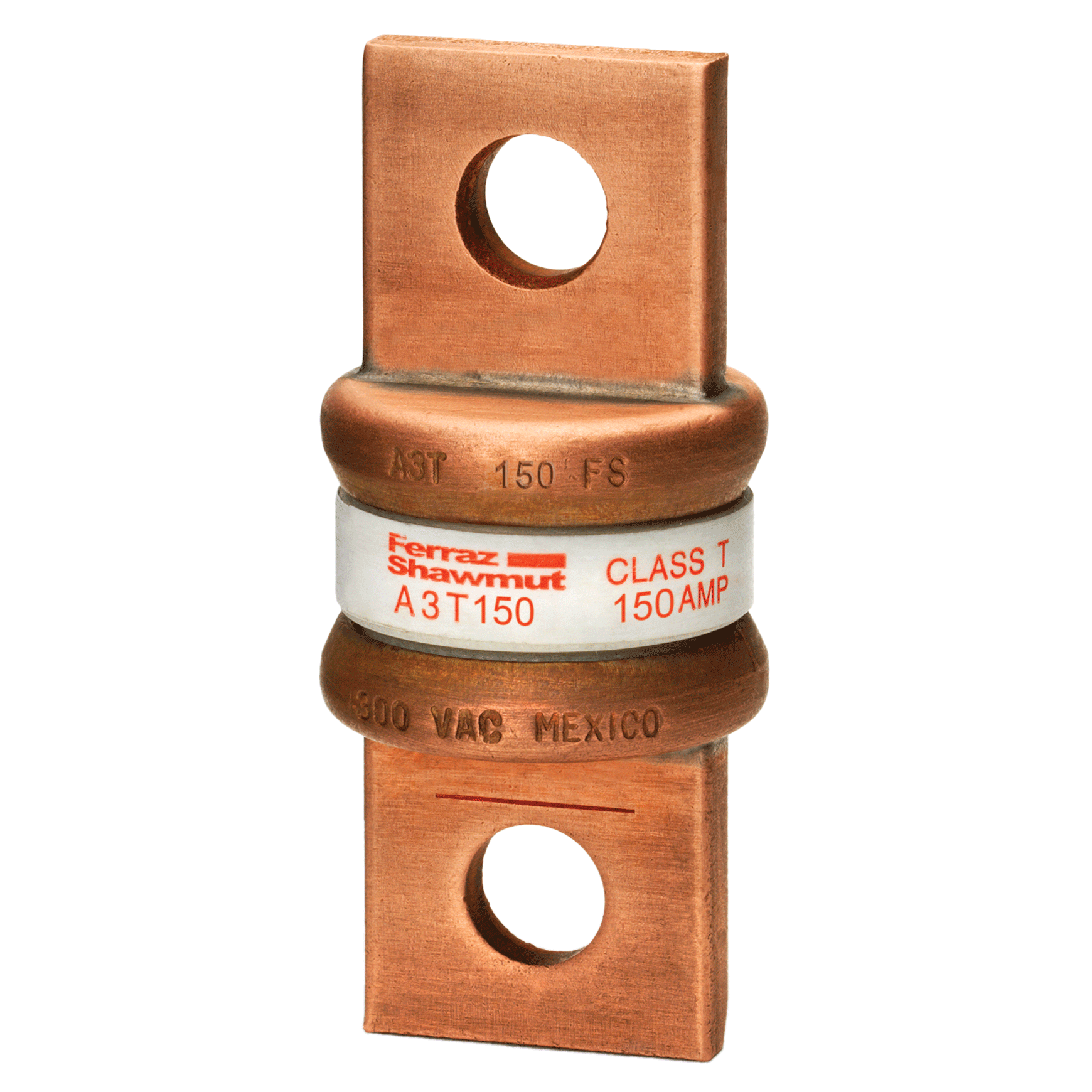

A3T150 Amp-Trap Current Limiting Low Voltage Fast Acting Fuse, 150 A, 300 V AC/160 V DC, 50/200 kA Interrupt, T Class, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- A3T150
- UPC:
- 782001890216
- Item #:
- 188869
A3T150 Amp-Trap Current Limiting Low Voltage Fast Acting Fuse, 150 A, 300 V AC/160 V DC, 50/200 kA Interrupt, T Class, Cylindrical Body
- MFR #:
- A3T150
- UPC:
- 782001890216
- Item #:
- 188869
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$136.67
each
Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 150A Blade Amp-Trap
Manuals and Documentation
| Catalog Number | A3T150 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 150 |
| Application | Load centers Panelboards Switchboards Circuit breakers Metering centers |
| Connection | Blade |
| Interrupt Rating | 200 KA |
| Mounting | Bolt |
| Special Features | Extremely current-limiting for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Small physical size for greater design flexibility |
| Standard | UL listed to standard 248-15 File E2137 CSA certified to standard C22.2 no. 248.15 DC listed to UL standard 248 |
| UPC | 782001890216 |
| GTIN | 00782001890216 |
| Item Type | Class T |
| Size | 2.44 x 1.06 |
| Voltage Rating | 300 |
