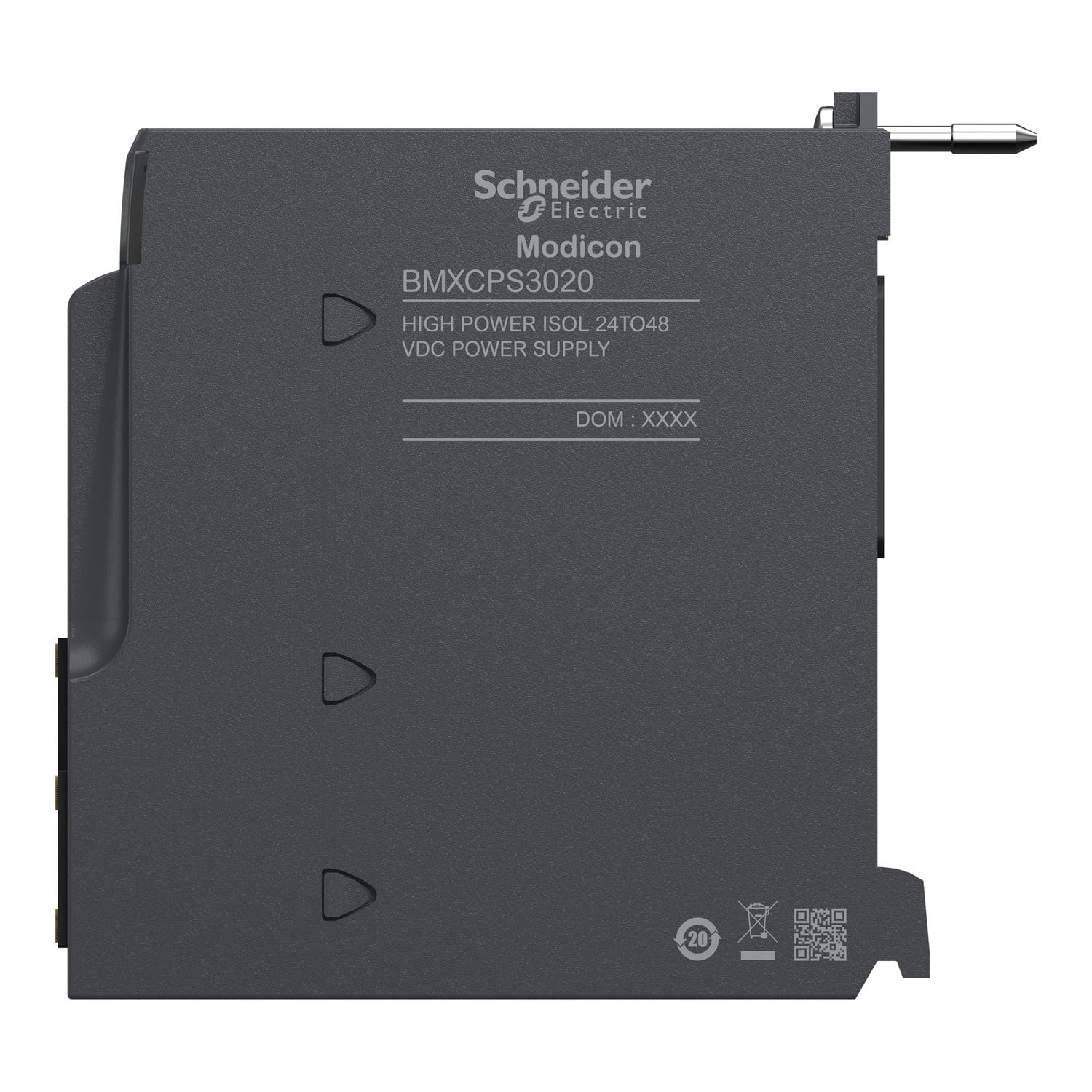

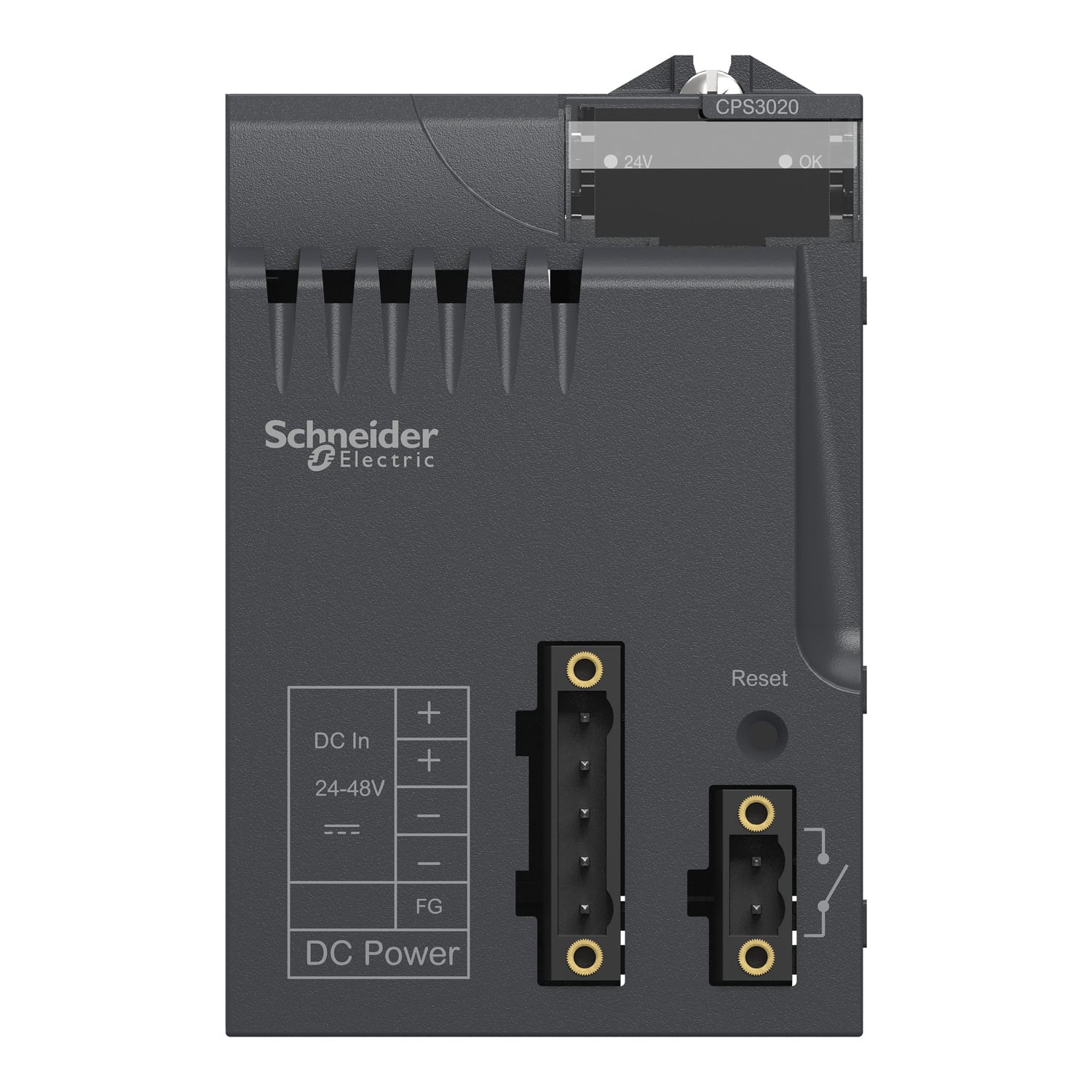

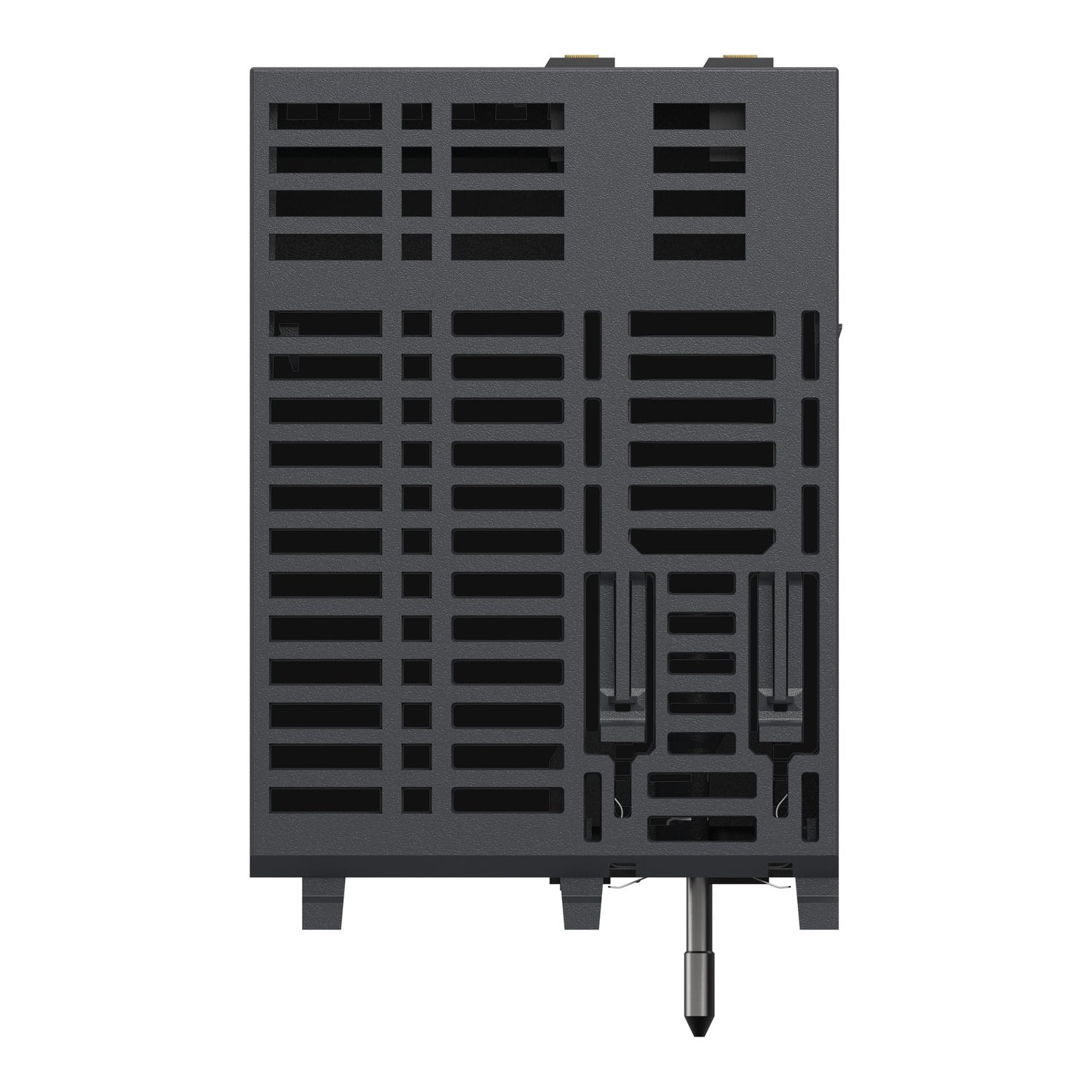

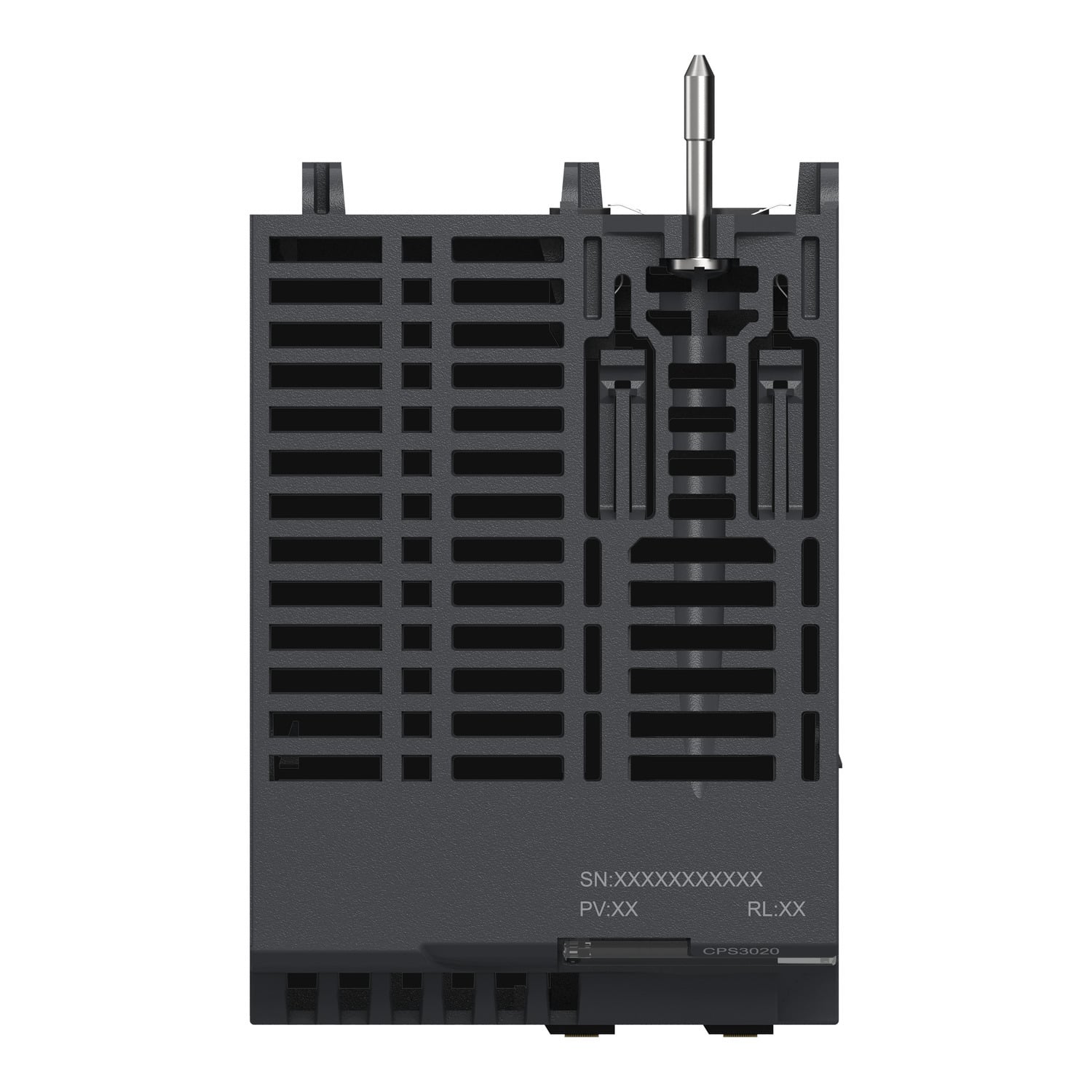

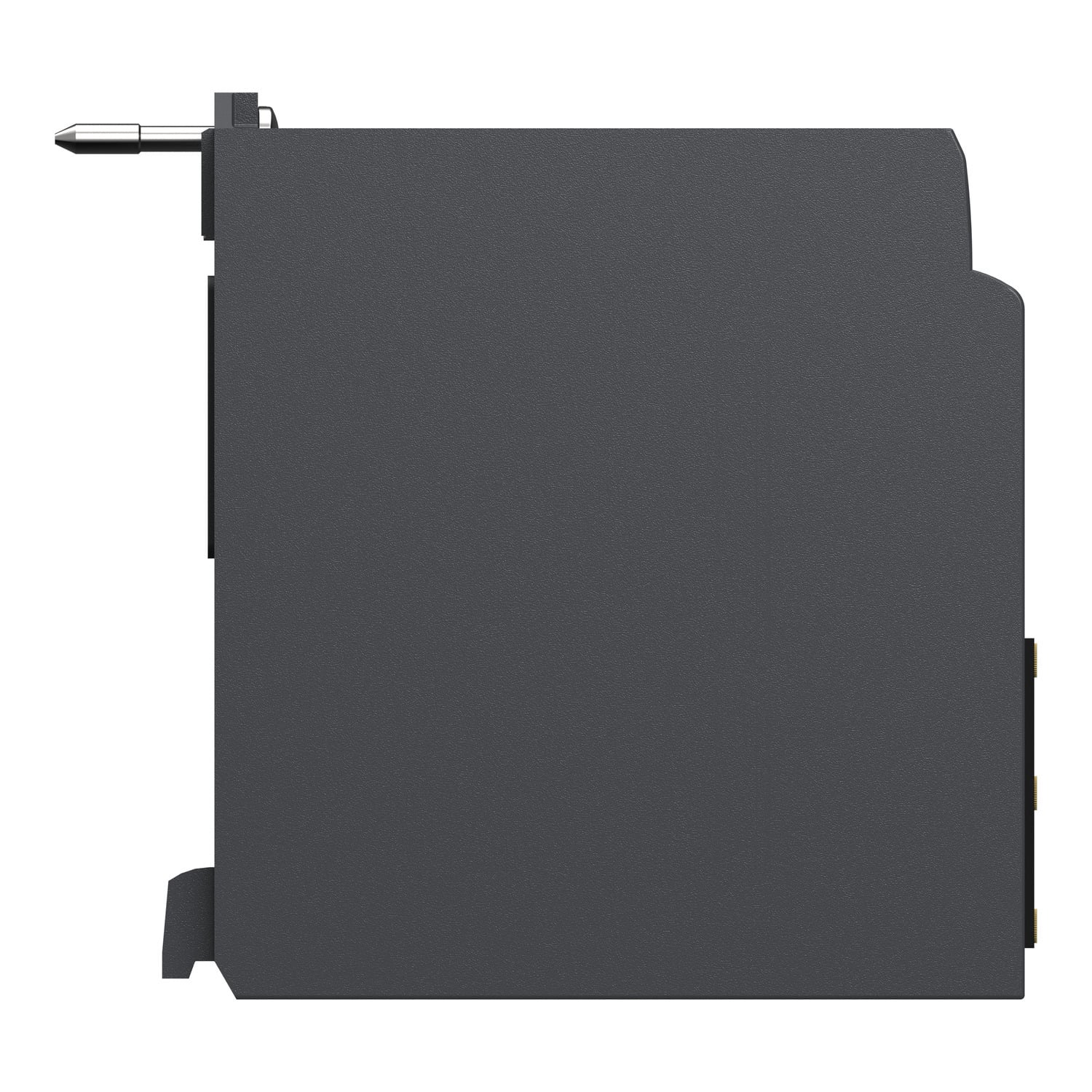

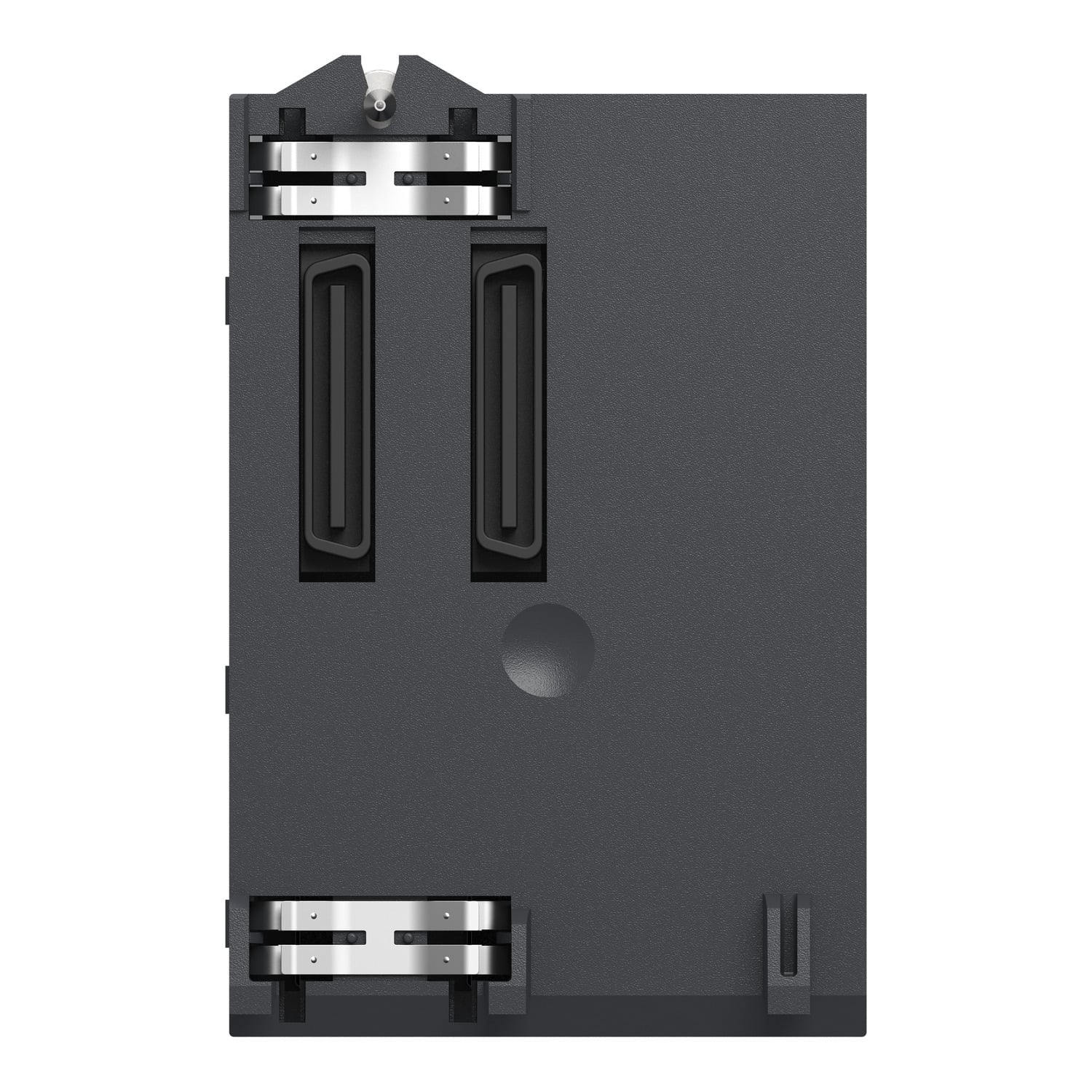

BMXCPS3020 Modicon High Power Isolated PLC Power Supply Module, 24 to 48 V DC Input, 24 VDC Output, 1.65/0.83 A Input, 1.3/4.5 A Output, 32 W
- MFR #:
- BMXCPS3020
- UPC:
- 785901477006
- Item #:
- 188609
BMXCPS3020 Modicon High Power Isolated PLC Power Supply Module, 24 to 48 V DC Input, 24 VDC Output, 1.65/0.83 A Input, 1.3/4.5 A Output, 32 W
- MFR #:
- BMXCPS3020
- UPC:
- 785901477006
- Item #:
- 188609
$989.46
each
Product Details
This power module is part of the Modicon X80 modules. This module provides the power supply for each Modicon X80 I/O rack and the modules installed. It is supplied with 24V to 48V DC isolated. It has a case which provides IP 20 protection of the electronics.
Manuals and Documentation
Features
- Internal fuse not accessible for primary circuit
- Overload and overvoltage protection for secondary circuit
- Modularity and scalability
- Robustness and reliability
Specifications
Identifiers
| Manufacturer Part Number |
BMXCPS3020
|
|---|---|
| GTIN |
03595863908985
|
| UPC |
785901477006
|
|---|---|
| EAN |
3595863908985
|
General Information
| Manufacturer |
Schneider Electric
|
|---|---|
| Brand |
Schneider Electric
|
| Country Of Origin |
FR
|
| Warranty |
18 Months
|
|---|---|
| Standards Approvals |
IACS E10 | PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov | RoHS Compliant | TC Approved
|
| Application |
Modicon X80 Applications
|
Technical Information
| Input Current |
1.65/0.83 A
|
|---|---|
| Input Voltage |
24 to 48 V DC
|
| Output Current |
1.3/4.5 A
|
| Output Voltage |
24 V DC
|
| Power Consumption |
32 W
|
| Power Dissipation |
8.5 W
|
|---|---|
| Specifications |
30 A at 24 V DC, 60 A at 48 V DC Inrush Current, IP20 Enclosure, -40 to 185 deg F Storage Temperature
|
| Temperature Rating |
0 to 60 deg C
|
| Type |
High Power Isolated
|
